350-II Separated HEPA Filter Corrugated Machine Used For Aluminum Foil Forming
Price:
$4400~11000
MOQ:
1
Delivery Time:
30
Brand:
TONGCHEN
Product Description
350-II Separated HEPA Filter Corrugated Machine for Aluminum Foil Forming
The 350-II Separated HEPA Filter Corrugated Machine is a specialized industrial device designed for HEPA filter production. It processes flat aluminum foil into precisely corrugated partitions—essential components that maintain uniform pleat spacing in partitioned HEPA filters.
Featuring a separated structural design, this machine seamlessly integrates with subsequent HEPA filter pleating equipment to optimize production line workflow. The core forming module transforms flat aluminum foil into consistent corrugations with adjustable parameters including corrugation height and pitch, accommodating diverse HEPA filter specifications.
With a maximum aluminum foil processing width of 320mm and corrugation height range of 3-6mm (customizable to customer requirements), the machine ensures corrugated partitions fit precisely with HEPA filter pleats. The conveyor belt feeding system provides stable material transport to minimize foil deformation, while semi-manual operation balances flexibility and efficiency, achieving processing speeds up to 30 pieces per minute.
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Aluminum foil (semi-hard, flat) or paper |
| Maximum Roll Diameter | 700 mm |
| Maximum Material Width | 320 mm |
| Material Thickness | 0.04 ± 0.005 mm |
| Corrugated Edge Width After Pressing | 3 mm - 10 mm |
| Corrugation Height | 3 mm - 6 mm (customizable) |
| Sizing Length | Freely adjustable |
| Production Speed (Max) | 0 - 30 sheets/min |
| Power Supply | 380V, 50Hz |
| Compressed Air Requirement | 0.6 m³/min |
| Machine Dimensions (L × W × H) | 3800 × 950 × 1395 mm |
| Motor Configuration | Three-phase motor |
| Mechanical Parts Treatment | Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment |
| Pneumatic Components Brand | Jiahe brand, Harbin bearings |
| Instrument Installation | Reasonable layout, easy to remove |

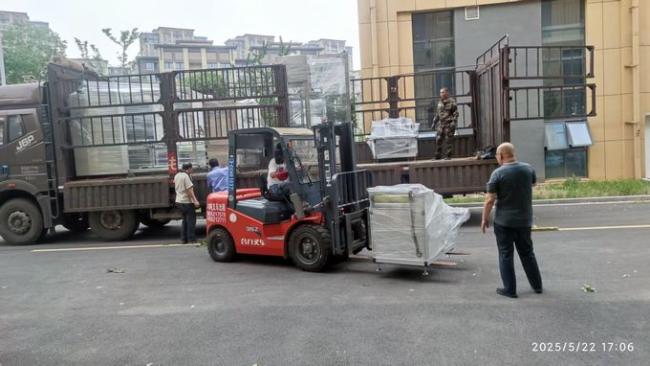

Packaging and Delivery
Selling Units: Single Item
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
- Paper folding equipment and rotating machines
- Diesel engines and large air filter production equipment
- Partitionless and partitioned filter production equipment
- Pleating machines and glass fiber strip production lines
We prioritize product quality and service to enhance your brand's competitiveness in the global market. Tongchen Technology is committed to becoming your most reliable mechanical solution provider and long-term business partner.
