High Efficiency Big Capacity HEPA Filter Gluing Machine Automatic
The Fully Automatic Non-Partitioned Folding and Gluing Production Line is a high-precision, fully automated system designed for continuous folding and gluing of filter materials without partition dividers.
It integrates pre-slitting, folding, hot-melt gluing, cooling, and synchronized conveying into one efficient workflow, ensuring consistent product quality and high production efficiency.
Developed for industrial air filters, automotive filters, and other pleated filtration products, this production line features intelligent control systems, servo-driven mechanisms, and adjustable folding parameters, making it suitable for diverse filter specifications.
| Item | Specification |
|---|---|
| Hot melt glue machine capacity | 50 L |
| Glue gun configuration | 2 × 26-point independent glue spraying components with separate solenoid control |
| Glue line spacing | 25.4 mm |
| Glue gun control | Touchscreen-controlled; adjustable glue volume |
| Glue spraying functions | Continuous, single-sided, double-sided, surface cutting, offset, fold-count-based injection |
| Glue machine preheating time | 30 minutes |
| Power supply | 380V / 50Hz |
| Total power | 15 kW |
2. Adjustable Folding Height – Folding height from 12 to 100 mm, controlled via touch screen.
3. Precision Corrugation – Uniform corrugation spacing ensures high flatness and consistent product quality.

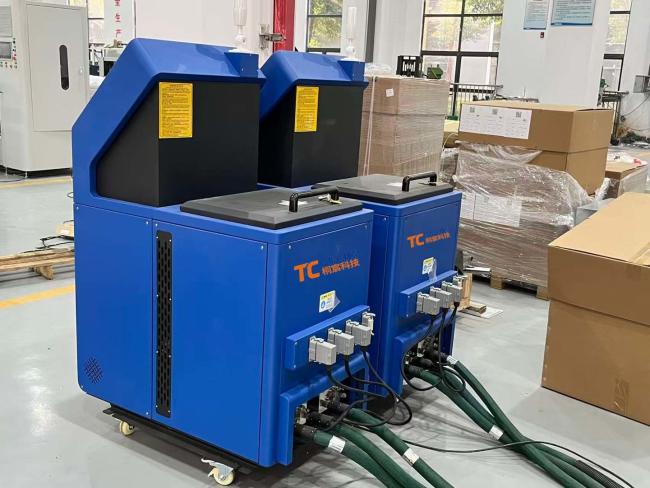

4. Advanced Gluing System – 50L hot-melt glue machine with dual 26-point independent glue guns, each nozzle individually controlled.
5. Flexible Glue Application – Supports continuous, single-sided, double-sided, surface-cutting, offset, and fold-count-controlled glue injection.
6. Synchronized Conveying – Servo-controlled conveyor belt ensures consistent spacing between filter materials.
7. Durable Mechanical Structure – Thickened aluminum profiles, chromium-plated shafts, and robust aluminum alloy frame provide long-term stability.
8. Intelligent Touchscreen Control – 10-inch touch screen for adjusting folding speed, glue volume, and process parameters.
- Improves Filter Appearance - Clean edges enhance the final product quality.
- Boosts Production Efficiency - Fast trimming speeds reduce manual work and processing time.
- High Accuracy - Precise blade design minimizes errors and ensures consistent trimming.
- Compatible with Various Filter Types - AC filters, cabin filters, HEPA frames, nonwoven filters, etc.
- Cost-Effective - Low power consumption and minimal maintenance requirements.
- Durable Construction - Heavy-duty build designed for continuous industrial operation.
- Automotive air conditioning filters
- Cabin air filters
- Industrial and HVAC filters
- Household air purifier filters
- Nonwoven and pleated filter frames
- Any filter requiring precise four-side edge strip removal
