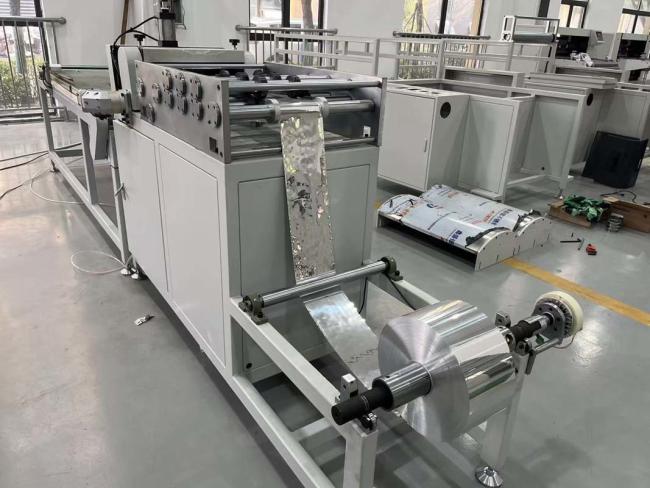

The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.
Product Parameters| Parameter | Specification |
|---|---|
| Material | Aluminum foil (semi-hard, flat) or paper |
| Maximum Roll Diameter | 700 mm |
| Maximum Material Width | 320 mm |
| Material Thickness | 0.04 ± 0.005 mm |
| Corrugated Edge Width After Pressing | 3 mm - 10 mm |
| Corrugation Height | 3 mm - 6 mm (customizable) |
| Sizing Length | Freely adjustable |
| Production Speed (Max) | 0 - 30 sheets/min |
| Power Supply | 380V, 50Hz |
| Compressed Air Requirement | 0.6 m³/min |
| Machine Dimensions (L × W × H) | 3800 × 950 × 1395 mm |
| Motor Configuration | Three-phase motor |
| Mechanical Parts Treatment | Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment |
| Pneumatic Components Brand | Jiahe brand, Harbin bearings |
| Instrument Installation | Reasonable layout, easy to remove |
- Unwinding Section: Magnetic powder brake with dedicated motor ensures constant tension control, keeping aluminum foil straight for smooth flanging, corrugation, and cutting. Includes air-expandable shaft.
- Inlet Tension Section: Adjustable tension rollers avoid uneven tension, ensuring stable production.
- Flanging Section: Roller-type flanging continuously flattens and smooths aluminum foil edges to meet width requirements.
- Corrugation Pressing Section: Replaceable corrugation rollers can be customized for height requirements; full roller group replacement requires no adjustment.
- Sizing & Cutting Section: Pneumatic knives with induction sizing provide high precision cutting of corrugated sheets.
- Automatic Discharge Platform: Pneumatic system automatically ejects finished corrugated sheets, simplifying collection and stacking.
