350mm HEPA Filter Corrugating Machine Used For Aluminum Foil Forming
Price:
$5500~7500
MOQ:
1
Delivery Time:
30
Brand:
TONGCHEN
Product Description

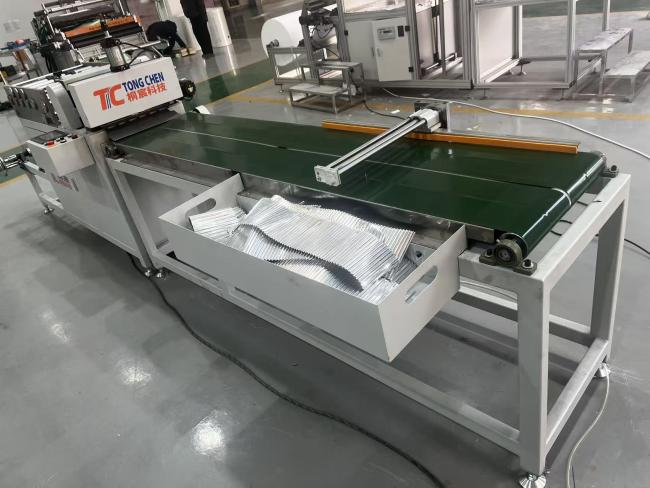

350mm HEPA Filter Corrugating Machine for Aluminum Foil Forming
The 350mm Corrugating Machine is a state-of-the-art solution for producing aluminum foil and paper separators. Featuring a painted frame for precision and aesthetic appeal, the ergonomic layout allows easy roll replacement, adjustment, and operation. The process—from roll feeding and tension control to flanging, corrugation, sizing, cutting, and automatic discharge—is fully optimized for efficiency, quality, and minimal operator fatigue.
Process Workflow
Rolled aluminum foil (paper) → Coiling → Tension unwinding → Tension feeding → Flanging → Corrugation pressing (heat setting) → Automatic sizing cutting → Automatic discharge
Technical Specifications
| Material | Aluminum foil (semi-hard, flat) or paper |
| Maximum Roll Diameter | 700 mm |
| Maximum Material Width | 320 mm |
| Material Thickness | 0.04 ± 0.005 mm |
| Corrugated Edge Width After Pressing | 3 mm - 10 mm |
| Corrugation Height | 3 mm - 6 mm (customizable) |
| Sizing Length | Freely adjustable |
| Production Speed (Max) | 0 - 30 sheets/min |
| Power Supply | 380V, 50Hz |
| Compressed Air Requirement | 0.6 m³/min |
| Machine Dimensions (L × W × H) | 3800 × 950 × 1395 mm |
| Motor Configuration | Three-phase motor |
| Mechanical Parts Treatment | Shafts: electroplated hard chrome; Others: decorative nitro-iron and black treatment |
| Pneumatic Components Brand | Jiahe brand, Harbin bearings |
| Instrument Installation | Reasonable layout, easy to remove |
Applications

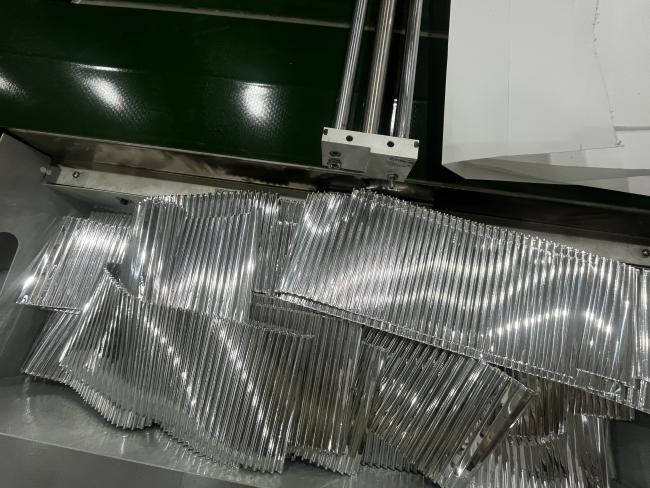

- Production of aluminum foil corrugated separators
- Manufacturing of paper-based separators
- Industrial packaging materials
- Electronics and battery separator sheets
- Custom corrugated sheets for industrial applications
Key Advantages
- High production efficiency (up to 30 sheets/min)
- Fully customizable corrugation height (3-6mm) and sheet length
- Stable production due to tension-controlled feeding
- Ergonomic design improves operator comfort and safety
- Easy maintenance with accessible and replaceable components
- Suitable for both aluminum foil and paper materials
- Painted frame ensures durability and precision alignment
Packaging & Delivery
Selling Units: Single item
Manufacturer Profile
Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
- Paper folding equipment and rotating machines
- Diesel engines and large air filter production equipment
- Partitionless and partitioned filter production equipment
- Pleating machines and glass fiber strip production lines
