300mm Pleat Height Mini HEPA Pleating And Gluing Production Line
Price:
$32000~37000
MOQ:
1
Delivery Time:
30
Brand:
TONGCHEN
Product Description
300mm Pleat Height Mini HEPA Pleating And Gluing Production Line
This fully automatic system is engineered for continuous folding and gluing of HEPA and mini-pleat filter materials. It supports a maximum folding width of 1300mm and a pleat height range of 20-300mm, providing stable operation, uniform spacing, and high production efficiency. This machine is ideal for manufacturing high-efficiency air filters, automotive filters, and other precision pleated filtration products.
Technical Specifications
| Max Folding Width | 1300 mm |
| Folding Height Range | 20-300 mm (set via display screen) |
| Corrugation Flatness Standard | Folding height is flat; spacing uniform and consistent |
| Production Speed | 2-15 m/min |
| Power Controller | 1 set |
| Servo Motors | 1.3 kW × 2 sets; 4 kW × 1 set |
| Servo Motors (Auxiliary) | 0.75 kW × 3 sets |
| High-Precision Reducers | 6 sets |
| Hot-Melt Glue Machine Capacity | 50 L × 2 (Foamed-grade gluing machines) |
| Glue Gun | Two sets of 50-point independent glue components with separate solenoid valve control |
| Glue Line Spacing | 25.4 mm |
Main Features
- Wide Folding Capacity: Maximum folding width up to 1300 mm, suitable for large filter materials
- Adjustable Pleat Height: 20-300 mm, freely set through the control display
- Stable Corrugation Quality: Ensures uniform spacing and flat pleats
- Speed Flexibility: Production speed adjustable from 2-15 m/min
- Multi-Servo Drive System: 6 high-precision reducers and multiple servo motors ensure smooth motion and accuracy
- Dual Foamed-Grade Glue System: Two 50L glue machines provide stable and efficient glue application
- Independent Glue Control: Each glue point controlled separately by solenoid valves
- Precise Glue Line Spacing: 25.4mm spacing ensures even bonding and neat pleats
- Easy Digital Adjustment: Folding height, speed, and glue volume adjustable via touchscreen interface
- Durable Mechanical Design: Rigid aluminum frame and precision components ensure long service life
Product Advantages
- Large pleat height range for flexible filter designs
- High-precision servo synchronization for consistent folding
- Dual foamed-grade hot-melt glue systems for stable bonding
- Smart control interface for easy operation and quick setup
- Robust and reliable mechanical structure for continuous production
Packaging & Delivery
Selling Units: Single item
Manufacturer Profile

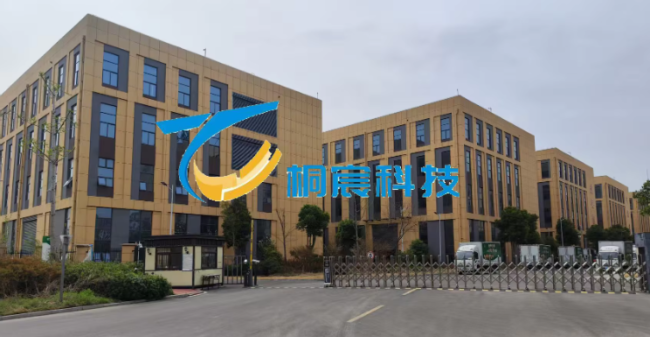

Bengbu Tongchen Automation Technology Equipment Co., Ltd. is located in Bengbu, China—an important transportation hub and industrial base. Our company specializes in the development, design, and production of filter manufacturing equipment, providing advanced, practical, and efficient solutions that meet both domestic trends and international standards.
Product Range
- Paper folding equipment and rotating machines
- Diesel engines and large air filter production equipment
- Partitionless and partitioned filter production equipment
- Pleating machines and glass fiber strip production lines
