30w/15w/7.5w/3.8w 5-inch Coaxial Speaker 100V/70V/8ohm High Quality Commercial Audio OEM ODM

Name: 30w/15w/7.5w/3.8w 5-inch Coaxial Speaker 100V/70V/8ohm High Quality Commercial Audio OEM ODM
Brand: VOXPA Electronics Co.,Ltd

Price Negotiable

Price: Negotiable

MOQ: 100

Delivery Time: 30

Product Description

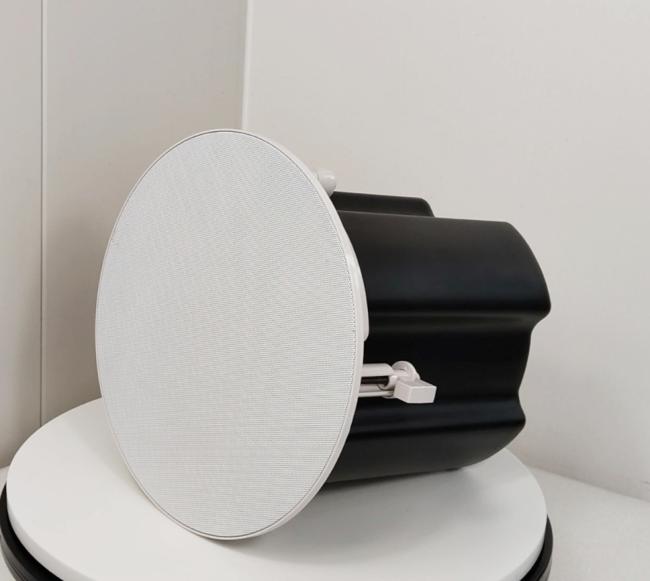

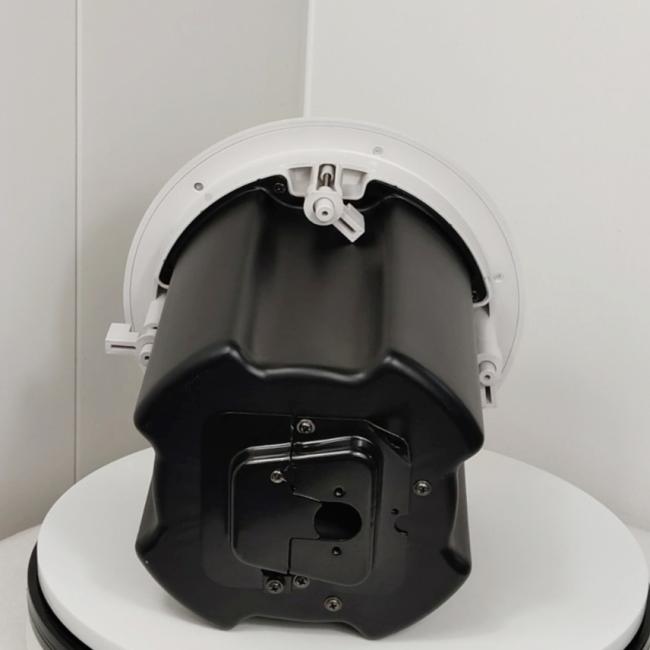

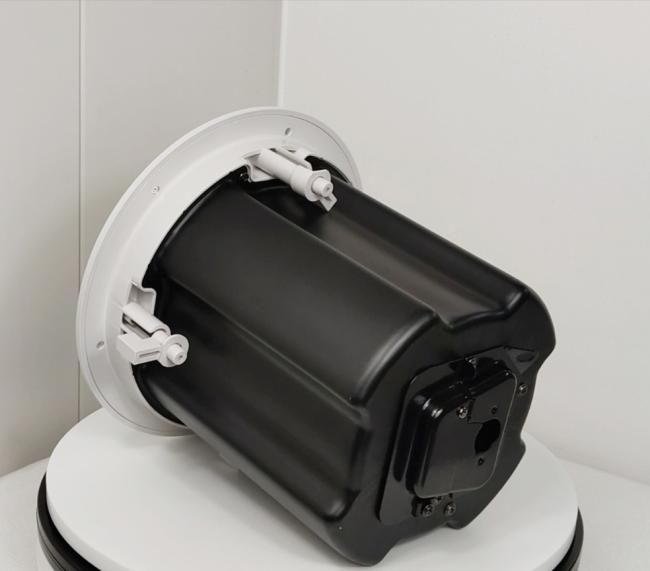

5" Coaxial Speaker - Commercial Ceiling Speaker with Frameless Magnetic Metal Grille

CF-05S 5" Multi-Tap Coaxial Narrow-Bezel Ceiling Speaker with Iron Material

Meet the CF-05S, a versatile 5-inch coaxial ceiling speaker engineered for the dynamic audio needs of hotels, restaurants, and retail spaces. Built with a slim, narrow-bezel design and a rugged iron back can, it delivers professional-grade sound while blending seamlessly into modern interiors.

This model stands out with its multi-tap power selection (30W/15W/7.5W/3.8W) and wide voltage compatibility (100V/70V/8Ω), giving you precise control over audio levels to match any space size. With an 88dB sensitivity rating and a 70-20kHz frequency response, it produces clear, balanced audio—whether you’re playing soft background music in a hotel lobby or making urgent paging announcements in a busy restaurant.

The robust iron construction ensures durability in high-traffic environments, and its compact 240*230mm profile, paired with a φ205mm mounting hole, allows for discreet, flush installation. The screw-lock mechanism enables fast, secure setup, cutting down on installation time and labor costs for commercial projects.

Ideal for contractors, facility managers, and audio integrators, the CF-05S combines flexibility, reliability, and performance. Its multi-tap design and broad voltage support make it adaptable to both new builds and retrofits, ensuring consistent audio coverage across your entire space.

Technical Specifications

Model	Speaker Size	Power	Voltage	Sensitivity	Frequency Response	Dimension(mm)	Material	Mounting Hole
CF-05	5" coaxial speaker	30W	100V	88DB	70-20KHz	240*230	Iron	Φ205
CF-05S	5" coaxial speaker	30W/15W/7.5W/3.8W	100V/70V/8Ω	88DB	70-20KHz	240*230	Iron	Φ205
CF-06	6" coaxial speaker	40W	100V	93DB	60-20KHz	240*230	Iron	Φ230
CF-06S	6" coaxial speaker	40W/20W/10W/5W	100V/70V/8Ω	93DB	60-20KHz	240*230	Iron	Φ230
