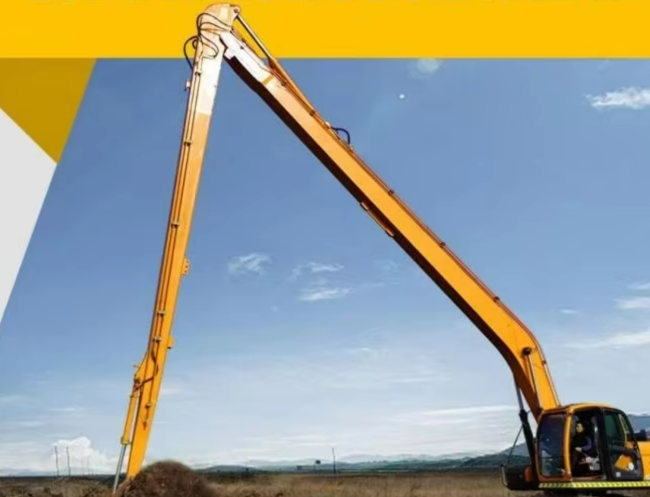

Customizable 18m Long Reach Excavator Boom For 20-Ton Machines – 10m Digging Depth
Customizable 18m Long Reach Excavator Boom For 20-Ton Machines – 10m Digging Depth
Used for Komatsu pc200 pc220 pc240 pc250 320D Kobelco SK200 SK250 EC220
|
Excavator tonnage |
Unit |
20-25T |
30-36T |
40-47T |
|---|---|---|---|---|
| Total length | mm | 16000 | 18000 | 18000 |
| Max digging radius | mm | 15300 | 17300 | 17300 |
| Max cut depth | mm | 11200 | 12200 | 12200 |
| Max cut height | mm | 13500 | 15300 | 15300 |
| Max unloading height | mm | 11500 | 12200 | 12200 |
| Min rotate radius | mm | 4750 | 5150 | 5200 |
| Boom length | mm | 9800 | 10300 | 10500 |
| Stick length | mm | 6200 | 7700 | 7500 |
| Stick max cut force(ISO) | KN | 82 | 64 | 115 |
| Bucket max cut force(ISO) | KN | 151 | 99 | 151 |
| Bucket capacity | m3 | 0.5 | 0.4 | 0.8 |
| Extra Counter weight | T | 0 | 2 | 0 |
Production workshop of Defeng Mechanical Manufacturing Limited
1. The conventional material is Q355B, and the enhanced version is Q460.
The plate is thin, high in strength, light in weight, and reduces the load of the excavator.
2. The bushing in the boom seat cover is made of copper (with self-lubriing carbon powder inside).
3. The oil pipes are all made of high-precision cold-drawn seamless steel pipes, which have undergone pickling and
phosphating treatment, with good material and high strength.
4. All the long arms are integrally bored after welding to ensure the concentricity between the pins and the quality.
Company view
FAQ:
1. Are you manufacturer?
Yes.
We are factory in Changzhou city, Jiangsu province, near Shanghai port.
2. Do you have warranty?
Yes. Long Boom and Arm has 6 months warranty.
3. Do you have after-sale service?
Yes.
After order, we will start production quickly and keep updated.
After shipment, we will track the shipping and keep updated.
After you receive machines, we will instruct the usages and maintenance.
During usage, if any problems, we will offer timely and complete solutions.
We offer servicing for the whole lifetime of machines, no worry for personal use or resell.
