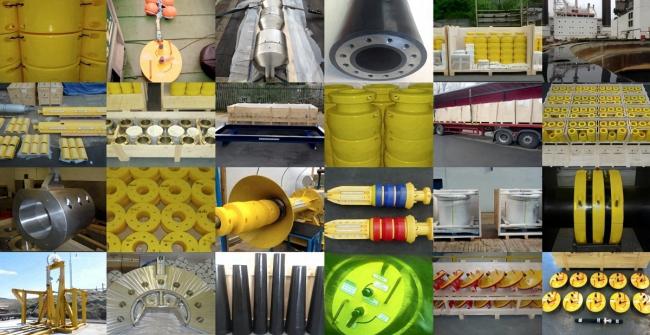

Custom Submarine Cable Protection PU Bend Limiter Polyurethane Bend Restrictor

The bending limiter provides essential submarine cable protection at lower ports of offshore wind power I-pipe and J-pipe installations. Installed on buoyancy modules outside marine riser columns, this solution ensures long-term safety and reliability for submarine cables in complex marine environments.

Key Structural Components: Semi-annular female end, semi-annular male end, snap ring, snap groove, auxiliary pipeline channel, and riser column channel. The connection system features snap rings that precisely match corresponding grooves for secure assembly.

As offshore energy development expands, our bend limiters offer critical protection for flexible risers, which provide superior compliance in challenging marine conditions compared to rigid alternatives.

• Modular bite structure with adjustable length for various service environments
• Harvard structure module design
• High-quality polyurethane material with exceptional deformation resistance, corrosion resistance, and wear resistance
• Material tensile strength ≥45MPa
• Material density ≤1.2×10³kg/m³ to avoid adding underwater weight
• 8t lateral pressure capacity
• Bending radius compliant with submarine cable requirements

• Excellent elasticity and corrosion resistance
• Superior hydrolysis resistance and insulating properties
• Protects cables from anchor shocks through urethane elasticity
• Cable-friendly design prevents damage to cable covers
• No abrasion under harsh marine conditions including ground/rock subsidence
• Exceptional anti-corrosion performance in pipe environments
• 50+ year durability in submarine conditions
• Excellent surface and dielectric volume properties
• 1.0m-2.0m basic units reduce weight and installation time
• Eliminates need for barge cranes or secondary work vessels during laying
