Products Highlight

Core Hardware
• Supports Intel® Sandy Bridge/Ivy Bridge CPUs including i3/i5/i7 models

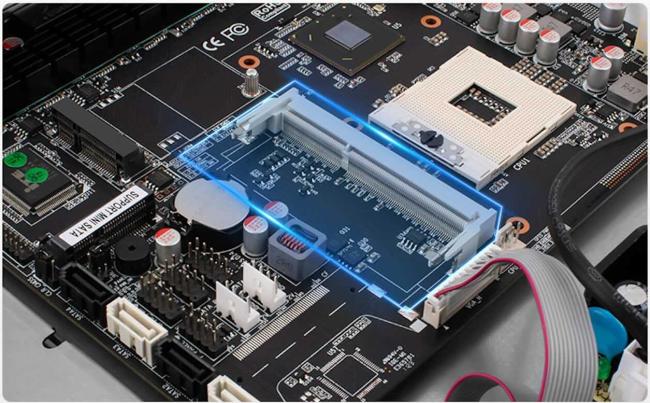

• Features Intel® HM76 chipset with single SO-DIMM slot for DDR3 1600MHz RAM (max 8GB)
• Offers 6× RJ45 ports via Intel® 82574L (1G) or Intel® i226-V (2.5G) controllers

Storage & Display
• Provides 2× SATA3.0 6Gbps + 2× SATA3.0 5Gbps + 1× mSATA interfaces
• Delivers VGA + dual 15-pin display outputs supporting 1920×1080@60Hz

Connectivity & Power
• Includes 2× USB2.0 ports + 4× USB2.0 header pins
• Operates on AC 100-240V input with dual 60W power design

Specialized Features
• Equips 8× programmable GPIO and 256-level watchdog timer
• Supports 4G/WiFi customization and Network WakeUp/PXE boot

Physical & Environment
• 1U chassis measuring 440×320×45mm
• Operational range: 0°C–60°C with 10–90% humidity

Port Customization
• Configurable with 6× 1G RJ45 using Intel® i210-AT/i211-AT/82574L chips

System Compatibility
• Recommend pfSense, OPNsense, Panabit and PVE

Products Datasheet

CPU Comparison

Recommend Operating System

1. Networking Devices/Firewalls:

   • pfSense / OPNsense: Full hardware compatibility (6 Ethernet ports, Intel NICs), optimized for older platforms, extremely low resource consumption (ideal for i3/i5), powerful and stable.

   • iKuaiOS: User-friendly for Chinese users, excellent hardware compatibility, outstanding traffic control and behavior management, well-supported on older CPUs.

   • Panabit: Professional traffic control, hardware compatible, ideal for deep traffic analysis scenarios.

2. Lightweight Servers/Basic Applications:

   • Debian / Ubuntu Server (LTS): Extremely lightweight, stable, strong community support, perfect compatibility with legacy hardware, minimal resource usage. Ideal for basic services (file server/NAS/Docker).

   • Proxmox VE (PVE): Top choice for virtualization! Far better compatibility with older hardware than ESXi. Maximizes limited resources (8GB RAM) to run multiple lightweight VMs (e.g., iKuai + Debian).

3. Routing Systems (Non-x86 Optimized):

   • RouterOS (ROS): Hardware compatible, extremely efficient, but steep learning curve. Best for networking experts.

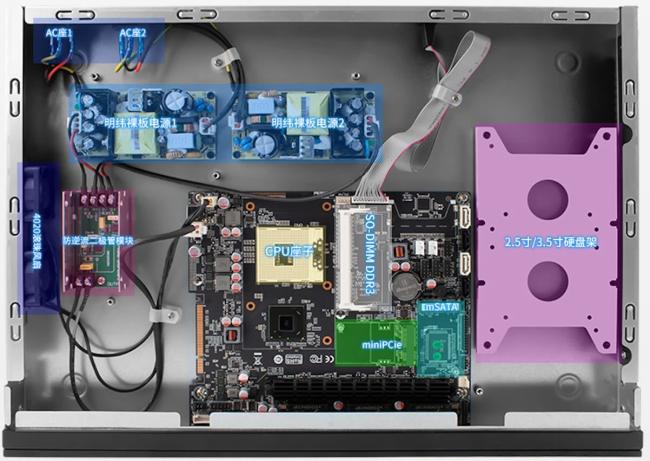

Products Design

Recomended Working Environment

I. Core Recommended Scenarios (Highly Advised)

1. Enterprise Edge Networking

   • Firewall/Router:
     ✅ Deploy pfSense/OPNsense: Utilize 6 Intel ports for multi-WAN load balancing/VLAN segmentation
     ✅ Deploy iKuai OS: Ideal for Chinese environments with behavior management + multi-line traffic shaping
     Hardware synergy: Perfect Intel NIC compatibility, watchdog timer ensures long-term stability

2. Lightweight Network Service Gateway

   • VPN Server:
     ✅ Run OpenVPN/WireGuard (on Debian/OPNsense)
     ✅ Hardware encryption: Leverage CPU's AES-NI instruction set

   • DHCP/DNS Services:
     ✅ Deploy AdGuard Home + Pi-hole (Ubuntu/Debian)
     *Power efficiency: <30W total consumption for 24/7 operation*

3. Industrial IoT Edge Computing

   • Protocol Gateway:
     ✅ Connect sensors/PLCs via 8x GPIO, run Node-RED (Debian)

   • Data Collection & Forwarding:
     ✅ Deploy MQTT Broker (Mosquitto) + Telegraf (time-series aggregation)
     *Industrial durability: Wide temperature tolerance (0-60°C) for harsh environments*

II. Virtualization Scenarios (Requires Strict Load Control)

▶ Solution: Proxmox VE (PVE) Hypervisor

• Typical Workload:





  VM1: iKuai (main router, 2 cores + 2GB RAM)
  VM2: Debian (light services e.g. DNS/monitoring, 1 core + 1GB RAM)
  LXC: AdGuard Home (ad filtering, 0.5 core + 512MB RAM)

• Critical Constraints:
  ❗ Total RAM ≤7GB (reserve 1GB for PVE)
  ❗ Avoid Windows VMs (excessive resource demands)
