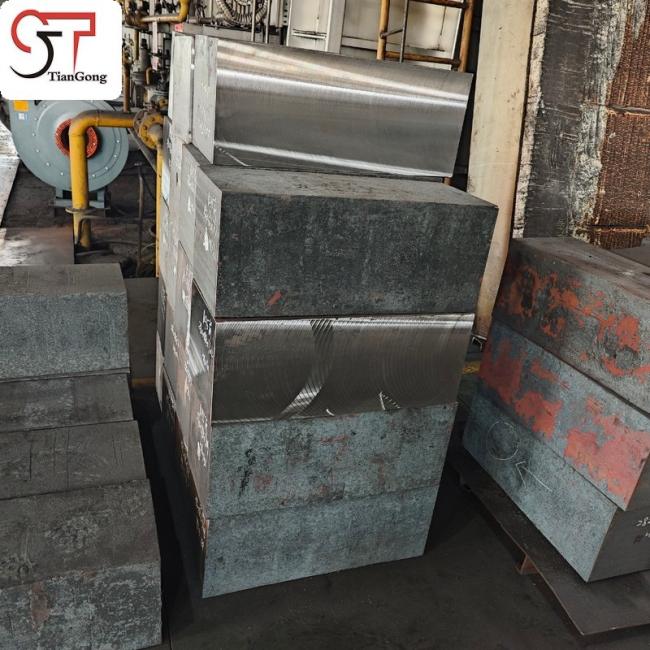

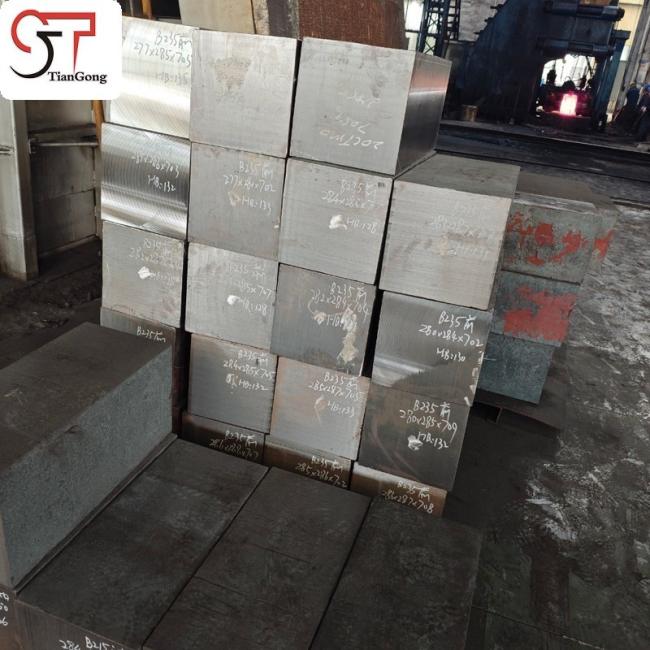

Heavy-Section Forged Steel Blocks For Offshore Drilling Platform Structures
Heavy-Section Forged Steel Blocks for Offshore Drilling Platform Structures
Heavy-section forged steel blocks are specifically designed for the demanding structural requirements of offshore drilling platforms. Manufactured from high-strength alloy steels such as 42CrMo4, 30CrNiMo8, and 35CrMo, these blocks undergo precision forging and heat treatment to achieve superior toughness, impact resistance, and fatigue strength.
Key Features:
-
Exceptional structural integrity and high load-bearing capacity for critical platform components.
-
Superior resistance to fatigue, cracking, and deformation under dynamic offshore conditions.
-
Precision forging and controlled heat treatment ensure uniform material properties throughout the block.
-
Large-section capability to accommodate heavy-duty applications in harsh marine environments.
Applications:
These forged steel blocks are widely used in offshore drilling platform structures, including jacket bases, leg reinforcements, deck support beams, and other critical load-bearing components. Their robustness and reliability ensure safe and long-lasting performance in extreme marine and offshore operating conditions.
| Item | Details (Heavy-Section Forged Steel Blocks – Offshore Drilling Platforms) |
|---|---|
| Product Name | Heavy-Section Forged Steel Block for Offshore Drilling Platform Structural Components |
| Material Grade | - 42CrMo, 30CrNiMo8, or 35CrMo alloy steels – optimized for high strength, toughness, and excellent fatigue resistance under dynamic offshore loading |
| Forging Equipment | - Hydraulic Open Die Presses: 5T / 8T / 12T – Capable of forging large-section steel blocks with uniform internal structure and directional grain flow |
| Forging Ratio | ≥ 3.5 – Ensures optimal grain alignment, internal soundness, and improved resistance to cyclic and impact loads typical of offshore operations |
| Manufacturing Process | Raw Material Inspection → Preheating → Open Die Forging → Heat Treatment (Quenching + Tempering) → Rough Machining → Non-Destructive Testing → Optional Final Machining → Dimensional Inspection → Protective Packaging |
| Delivery Conditions | - Standard: Quenched and Tempered for maximum load-bearing capacity and toughness - Optional: Normalized or Semi-Machined for specific assembly requirements |
| Applications | - Jacket bases and leg reinforcements of offshore drilling platforms - Deck support beams and critical structural blocks - Heavy-duty transmission and mounting structures in marine equipment |
| Testing & Inspection | - Chemical Composition: Optical Emission Spectrometry - Mechanical Properties: Tensile Strength, Hardness, Impact Toughness - Non-Destructive Testing: Ultrasonic Testing (UT), Magnetic Particle Testing (MT) - Dimensional Inspection: Full-scale measurements with calibrated gauges to ensure precision and compliance with offshore standards |
