Precision-Machined Crane Trolley Wheels on Gantry Crane Runway Beams
Precision-Machined Crane Trolley Wheels on Gantry Crane Runway Beams.

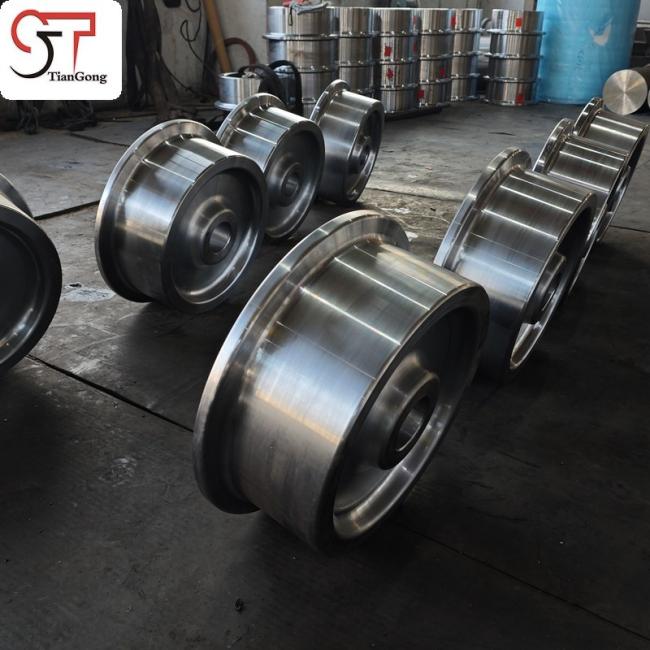

Precision-Machined Crane Trolley Wheels are specifically engineered components for gantry crane systems, serving as the primary rolling elements that facilitate smooth horizontal movement of the crane trolley along the runway beams. These wheels ensure precise positioning, stable load transfer, and reliable operation in demanding industrial environments.
Product Features:
-
CNC precision-machined to exact dimensional tolerances for smooth, vibration-free trolley movement
-
Optimized wheel profile design for consistent load distribution and reduced beam wear
-
Manufactured from high-grade alloy steel with optional hardened tread surfaces
-
Low-noise operation achieved through precise machining and balanced construction
-
Standardized mounting interfaces for easy installation and maintenance
Application Fields:
-
Gantry cranes in container terminals and port handling facilities
-
Overhead crane systems in manufacturing plants and workshops
-
Material handling equipment in logistics and distribution centers
-
Steel mill gantry cranes and heavy industrial material handlers
-
Specialized crane installations requiring accurate trolley positioning and control
| Item | Details |
|---|---|
| Material | High-carbon alloy steel (e.g., 1060/1070) – Selected for high surface hardness and excellent wear resistance, ensuring long service life under the high-frequency, reciprocating motion of trolley wheels on runway beams. |
| Machining Precision | CNC precision machining – Guarantees tight dimensional tolerances (IT7-IT8) and superior surface finish, enabling smooth rolling, minimal vibration, and reduced noise during trolley movement. |
| Main Application | Specifically designed for gantry crane trolley systems – Optimized for smooth travel along I-beam or box-section runway beams, widely used in workshops, warehouses, logistics yards, and port container handling areas. |
| Production Process | Precision turning → grinding → heat treatment (selective hardening) – Ensures high roundness, precise tread profile, and uniform surface hardness for consistent performance and extended service intervals. |
| Load Distribution Design | Optimized tread profile and flange geometry – Engineered to match standard runway beam profiles, ensuring even load distribution, reducing point stress, and minimizing wear on both wheel and beam. |

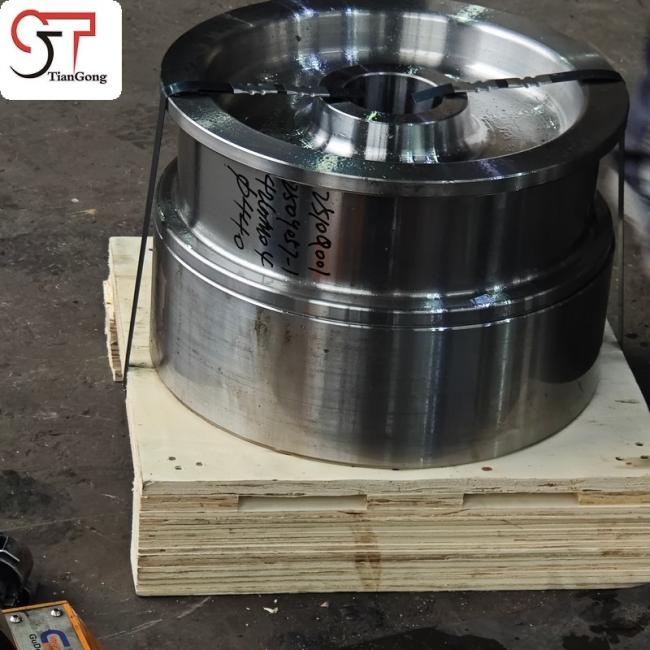

| Delivery State | Ready-to-install precision-machined wheels – Supplied with finished tread, bore, and keyway/set screw features, complete with protective coating to prevent corrosion during storage and transit. |
| Inspection Tools | Dimensional gauges, hardness testers, surface roughness testers, dynamic balance tester – Comprehensive inspection ensures each wheel meets strict standards for dimensions, hardness, balance, and surface quality required for precise trolley operation. |
| Service Package | Tiangong offers tailored machining, heat treatment, inspection, and just-in-time delivery – Supports flexible batch orders and provides full documentation to meet the operational and maintenance needs of gantry crane trolley systems. |
