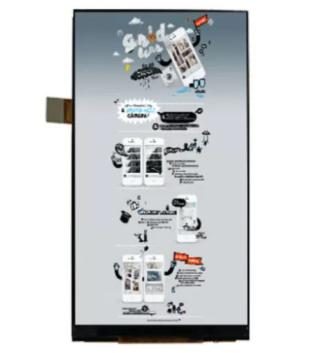

4.7 Inch HD TFT LCD Screen with 720x1280 Resolution and 300 cd/m² Brightness
| Parameter | Value |
|---|---|
| Resolution | 720 × 1280 |
| Size | 4.7 Inch |
| Viewing Direction | All Viewing Angle |
| TFT Mode | TFT, Transmissive |
| Item | Content | Description |
|---|---|---|
| 1 | Display outline size | 461.5 mm × 112.3 mm × 1.5 mm T |
| 2 | VA size | 58.104 mm × 103.296 mm |
| 3 | Resolution | 720 (RGB) × 1280 |
| 4 | With/Without Touch screen | CTP / RTP optional / Without |
| 5 | Interface | MIPI |
| 6 | Brightness | 300 Cd/m² |
| 7 | Connector | AXT526124 (Panasonic) |
| 8 | Drive IC | ILI9881C |
- Medium-small-sized display with space-efficient design
- Easy one-handed operation and device panel integration
- Ideal balance between viewable area and portability
- Mainstream size for consumer electronics and industrial control applications
- IPS wide-viewing-angle technology eliminates color distortion
- 720P (1280×720) resolution with high pixel density
- Crisp image details and clear text display
- Fast response time (10-20ms) with true color reproduction
- Cost-effective display technology solution
- Supports finger, stylus, and glove operation
- High touch accuracy for small icons and handwritten input
- Resistant to oil, moisture, dust, and low temperatures
- Stable performance in challenging environments
- High-speed serial interface for mobile devices
- Lower power consumption and reduced EMI interference
- Simplified motherboard design with fewer signal lines
- Compatible with modern embedded processors
Product Introduction
Core display performance: Its diagonal size is approximately 11.94 cm, measuring 4.7 inches. It is a medium-sized screen, typically featuring a thin design, which is convenient for integration into various small devices. The resolution of 720x1280 combined with TFT (thin film transistor) technology offers a high pixel density, enabling the presentation of detailed and clear images and text. Most of these screens can display up to 16.7 million colors, with good color reproduction, and have a brightness of 300cd/m². In indoor environments and normal outdoor lighting conditions, they can clearly display content and meet daily visual needs. Additionally, this specification of the screen is often equipped with mainstream interfaces such as MIPI, and also supports communication protocols like SPI and I2C. It is equipped with connectors ranging from 20 to 40 pins, facilitating quick connection with various main control devices. The integration process is simple, reducing the development time for the device.
Practical compatibility features: These screens generally have a wide operating temperature range, typically operating stably within -20°C to 70°C, meeting the usage requirements of different environments. The supply voltage is mostly around 2.8V, with low power consumption, which is in line with the battery life requirements of various portable and low-power devices. Some products also support customization of touch functions and OEM/ODM services, allowing for the combination of capacitive or resistive touch screens to adapt to different interaction scenarios.
- PLC touch screens and HMI interfaces
- Industrial detection instruments and CNC machine panels
- Resistant to oil and supports glove operation
- Stable 24-hour continuous operation capability
- Handheld POS machines and barcode scanners
- Logistics terminals and portable gaming devices
- High-definition display for clear information presentation
- Supports signature input with stylus
- Vehicle secondary screens and control panels
- Wide viewing angles for different seating positions
- Operates in extreme temperatures (-20℃ to 70℃)
- EMI-resistant for stable vehicle operation
- Portable blood glucose meters and blood pressure monitors
- Handheld ultrasound and medical monitoring devices
- Accurate medical data display
- Supports operation with medical gloves
