15.6" 1500nits FHD Industrial LCD Screen with Wide Temperature Range and LVDS Interface for Sunlight Readable Display
Price:
0.7-7USD
MOQ:
1000
Delivery Time:
3-4WEEKS
Brand:
BBI
Product Description
15.6" 1500nits FHD Industrial Sunlight Readable TFT LCD Display
High-performance 15.6-inch industrial TFT LCD display featuring 1500 nits ultra-high brightness, wide temperature operation, and LVDS interface for superior sunlight readability in demanding environments.
Technical Specifications
| Item | Specification | Unit |
|---|---|---|
| Screen Size | 15.6" real diagonal | |

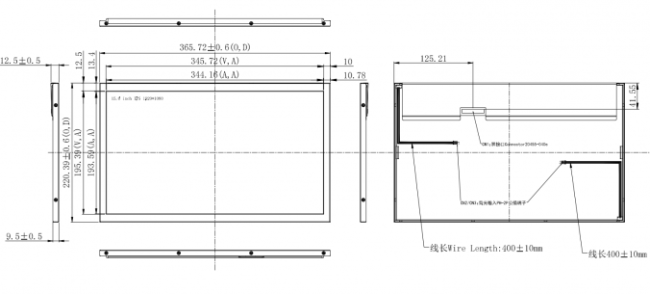

| Bezel Opening | 365.72x220.39x12.5 | mm |
| Pixel Number | 1920 x R.G.B. x 1080 | pixel |
| Pixel Pitch | 0.17925 (H) x 0.17925 (V) | mm |
| Display Area | 344.16x193.59 | mm |
| Display Colors | 16.7M | color |
| Transmissive Mode | Normally Black | - |
| Surface Treatment | AG type, 3H hard coating | - |
| Power Consumption | Total cell | |
| TC | 8100 | k |
| NTSC | 72 (Typ) | % |
Interface Pin Definition
| Pin | Name | Description |
|---|---|---|
| 1 | NC | Not connection, this pin should be open |
| 2 | NC | Not connection, this pin should be open |
| 3 | NC | Not connection, this pin should be open |
| 4 | NC | Not connection, this pin should be open |
| 5 | NC | Not connection, this pin should be open |
| 6 | NC | Not connection, this pin should be open |
| 7 | NC | Not connection, this pin should be open |
| 8 | NC | Not connection, this pin should be open |
| 9 | NC | Not connection, this pin should be open |
| 10 | NC | Not connection, this pin should be open |
| 11 | LCD_VCC | LCD logic and driver power 3.3V |
| 12 | LCD_VCC | LCD logic and driver power 3.3V |
| 13 | LCD_VCC | LCD logic and driver power 3.3V |
| 14 | NC | Not connection, this pin should be open |
| 15 | NC | Not connection, this pin should be open |
| 16 | NC | Not connection, this pin should be open |
| 17 | REV_SCAN | Low -> Normal Mode. High -> Horizontal & Vertical Reverse Scan |
| 18 | RXO0- | Negative LVDS differential data input. Channel O0 (odd) |
| 19 | RXO0+ | Positive LVDS differential data input. Channel O0 (odd) |
| 20 | RXO1- | Negative LVDS differential data input. Channel O1 (odd) |
| 21 | RXO1+ | Positive LVDS differential data input. Channel O1 (odd) |
| 22 | RXO2- | Negative LVDS differential data input. Channel O2 (odd) |
| 23 | RXO2+ | Positive LVDS differential data input. Channel O2 (odd) |
| 24 | LCD GND | LCD logic and driver ground |
| 25 | RXOC- | Negative LVDS differential clock input. (odd) |
| 26 | RXOC+ | Positive LVDS differential clock input. (odd) |
| 27 | LCD GND | LCD logic and driver ground |
| 28 | RXO3- | Negative LVDS differential data input. Channel O3(odd) |
| 29 | RXO3+ | Positive LVDS differential data input. Channel O3 (odd) |
| 30 | RXE0- | Negative LVDS differential data input. Channel E0 (even) |
| 31 | RXE0+ | Positive LVDS differential data input. Channel E0 (even) |
| 32 | RXE1- | Negative LVDS differential data input. Channel E1 (even) |
| 33 | RXE1+ | Positive LVDS differential data input. Channel E1 (even) |
| 34 | LCD GND | LCD logic and driver ground |
| 35 | RXE2- | Negative LVDS differential data input. Channel E2 (even) |
| 36 | RXE2+ | Positive LVDS differential data input. Channel E2 (even) |
| 37 | RXEC- | Negative LVDS differential clock input. (even) |
| 38 | RXEC+ | Positive LVDS differential clock input. (even) |
| 39 | RXE3- | Negative LVDS differential data input. Channel E3 (even) |
| 40 | RXE3+ | Positive LVDS differential data input. Channel E3 (even) |
Product Overview
Core Features
- Ultra-High Brightness: 1500 nits brightness with anti-glare 3H hard coating ensures perfect readability in direct sunlight
- Wide Temperature Range: Operating temperature -30℃ to +85℃, storage temperature -40℃ to +90℃
- Industrial LVDS Interface: 40-pin dual-channel configuration with stable, interference-resistant signal transmission
- IPS Technology: 178°/178° wide viewing angle with no color deviation or brightness attenuation
- High Color Performance: 16.7M true colors with 72% NTSC color gamut and 800:1 contrast ratio
- Robust Construction: Metal casing reinforcement for vibration and impact resistance
- Long Lifespan: WLED backlight with over 50,000 hours operational life
Primary Applications
- Industrial Automation: CNC machines, robot control cabinets, HMI interfaces, mining and construction machinery
- Transportation: Vehicle central control consoles, bus/rail transit information displays, marine navigation
- Outdoor Terminals: Digital signage, highway toll booths, security monitoring, smart grid interfaces
- Medical Equipment: Ambulance monitors, field emergency stations, portable medical devices
- Agriculture & Environmental: Agricultural machinery displays, weather station terminals, outdoor monitoring systems
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module. We can create new tooling for you.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
I want to customize a new LCD module. Can you do?
Yes, we can. Please send your drawing or provide outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, drive conditions).
What is the lead time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timing when you confirm the drawing.
Can you send us samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of special orders: approximately 15-30 days. We'll inform you if we can complete earlier.
