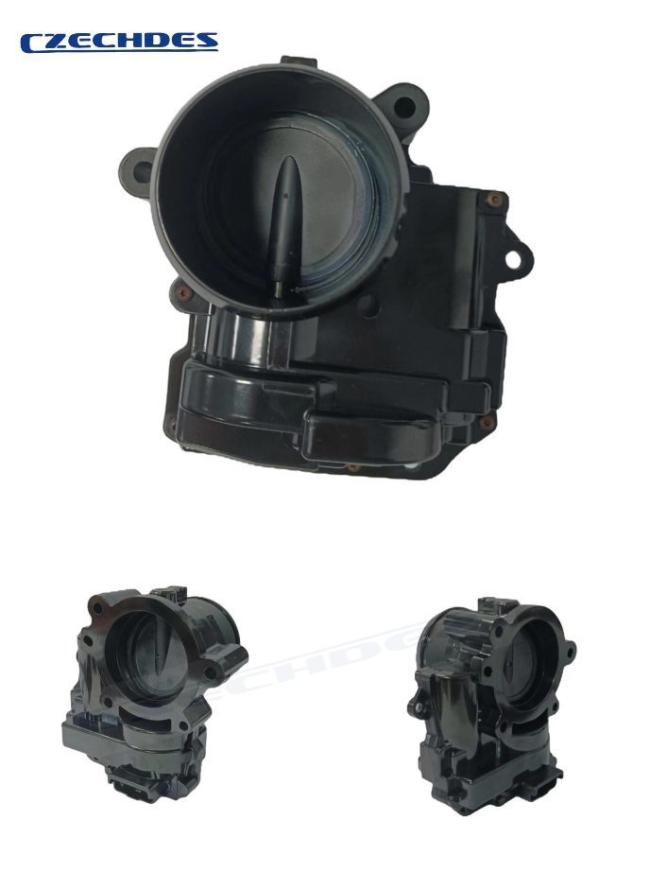

Throttle Valve Body 13547528179 13547574380 13547576698 13547604918 13548624189 13548675278 For BMW

Throttle Valve Body 13547528179 13547574380 13547576698 13547604918 13548624189 13548675278 For BMW

1. Product Introduction (Technical Principle)

    This series of throttle bodies serves as the core actuator in the electronic throttle control system. Its operating principle is as follows: The Engine Control Unit calculates the optimal throttle opening based on driver input and real-time engine conditions, sending a command to the drive motor inside the throttle body. This motor then rotates the throttle plate to the specified angle via a precision gear set. Simultaneously, integrated non-contact position sensors continuously feed the plate's actual position back to the ECU, creating a high-precision, fast-responding closed-loop control system for accurate air intake management.

2.Vehicle Compatibility List

3. Features

• Direct Motor Drive: Ensures rapid response and precise control.

• Non-Contact Position Sensors: Eliminates physical wear, offering long service life and high reliability.

• Redundant Sensor Design: Typically features dual sensors for signal verification, enhancing safety.

• Compact, Integrated Design: Combines the motor, gear mechanism, and sensors into a single unit.

• Emergency (Limp-Home) Mode: In case of system failure, a return spring moves the plate to a predefined open position, allowing limited vehicle operation.

4. Purpose

Its primary function is to precisely regulate the volume of air entering the engine's combustion chambers. It is directly responsible for:

• Controlling engine power output and throttle response.

• Maintaining a stable and smooth idle.

• Helping to optimize the air-fuel ratio for improved fuel economy and reduced emissions.

5. Production Process

• Precision Manufacturing: Housings are typically die-cast aluminum and machined with CNC for dimensional stability and sealing.

• Automated Assembly: Core components are assembled in a cleanroom environment using automated equipment to ensure consistency.

• Advanced Joining: Critical connections use techniques like laser welding for strength and long-term durability.

• End-of-Line Testing: Every unit undergoes full functional, performance, and leak testing on specialized benches before shipment.

6. Operating Method (Replacement & Maintenance)

1. Diagnosis: Use a professional diagnostic scanner to read fault codes and data streams to confirm the fault.

2. Power Disconnect: Disconnect the negative battery terminal before starting work for safety.

3. Replacement: Remove associated pipes and the electrical connector. Remove and install bolts using the specified torque sequence.

4. Adaptation: This is a critical step. After installing a new unit, a "throttle valve adaptation" procedure must be performed using the diagnostic tool. This allows the ECU to learn the new unit's parameters; failure to do so will cause operational issues.

5. Cleaning: For units with only carbon buildup, specialized cleaner can be used. Throttle adaptation is also required after cleaning.
