2.5 T Mini Excavator Digger Compact Crawler Excavation Equipment 4.12 Meters Length

2.5Ton mini excavator Digger Optional Attachments Small Excavator Machine

Characteristics :

1, 2.5Ton Mini Excavator The overall dimensions of the machine are approximately 4.12 meters in length, 1.32 meters in width, and 2.25 meters in height. The track width is only 250mm, and the grounding specific pressure is low (about 23.6-29.6KPa), making it suitable for narrow Spaces such as community alleys, greenhouses, and indoor operations

2, 2.5Ton Mini ExcavatorThe turning radius of the machine body is extremely small (as low as 1.85 meters), and the tail does not exceed the width of the track, allowing for flexible construction at the base of the wall and beside the pipeline

Application :

 1, 2.5Ton Mini Excavator  Trenching and fertilizing/planting trees and digging pits: Replace manual labor to complete deep digging and fertilizing in orchards and digging tree pits.

2, 2.5Ton Mini Excavator  Soil turning and weeding/land leveling: Loosening of soil in greenhouses, farmland improvement .

3, 2.5Ton Mini Excavator  Demolition and crushing: Interior wall demolition, concrete pavement crushing.

Advantage:

2.5Ton Mini Excavator  the width of the body is usually less than 1 meter.It mostly adopts imported engines (such as Kubota and Yanmar ), which have low fuel consumption and strong power.

Packing :

2.5Ton Mini Excavator  Under normal circumstances, we will put the machine into the packed wooden box and then transport the wooden box into a container

Technology :

Total width(B)	990/1300		Bucket capacity	0.056 m3
Top width(D)	1050		Rated power	14.2KW/2200rpm
Total heigh(C)	2470		Rated speed	9.5 r/min
Track width(F)	230		Gradeability	58%
Track gauge(G)	780/1090
Min.ground clearance(H)	150		Digging height(a)		3500
Tail turning radius(I)	780		Unloading height(b)		2560
Track ground length(J)	1200		Digging depth(c)		2370
Track length(K)	1500		Digging distance(d)		3030
			Turning radius(e)		1750
			Height at minimum turning radius(f)		2600

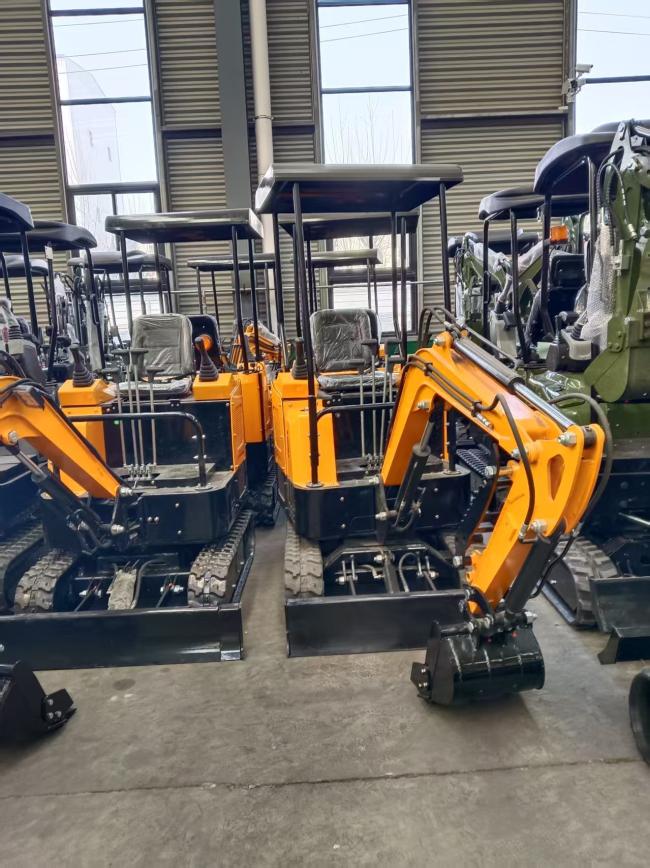

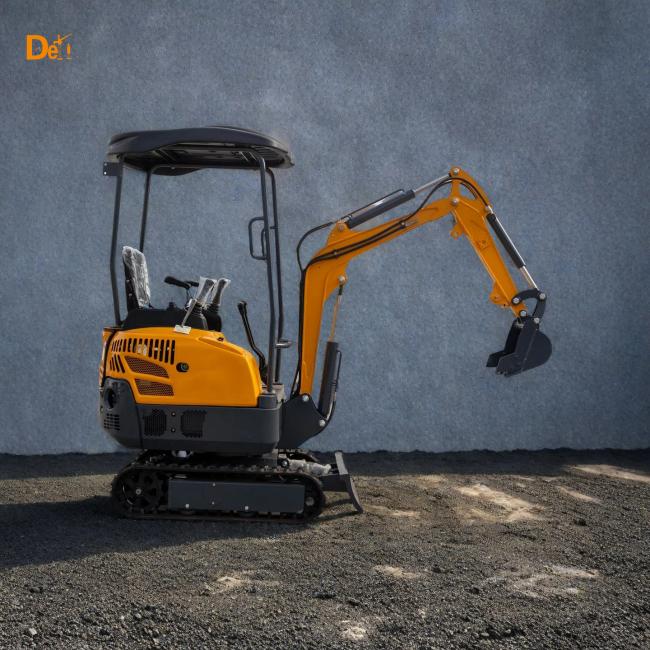

Picture Show :
