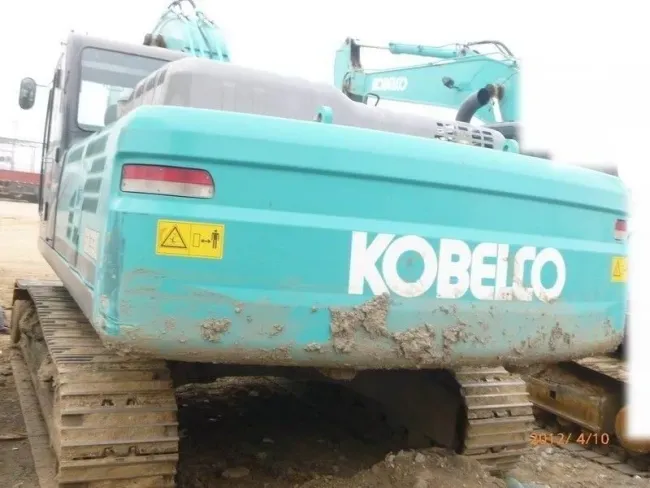

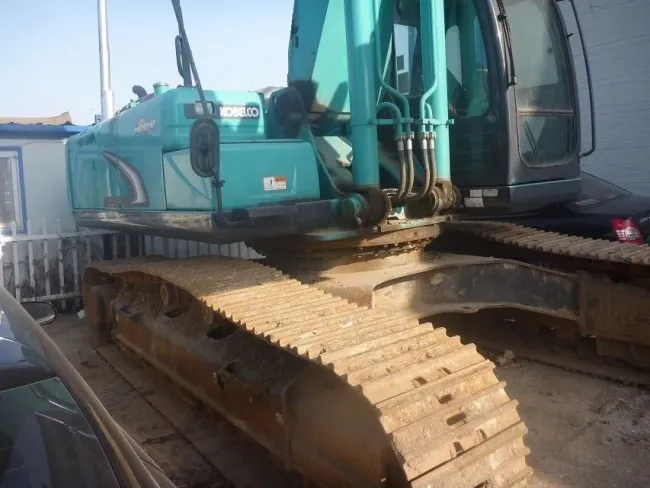

Used Kobelco Sk330-8 Crawler Excavator with Low Price in Good Condition
Basic Info.
Product Description

Kobelco Sk330-8 Excavator
| Model | Sk330-8 |
| Condition | Used |
| Year | 2014-2018 |
| Moving Type | Crawler Excavator |
| Brand | Kobelco |
| Working Weight | 34100kg |
| Bucket capacity | 1.5m3 |
| Origin | Japan |
Other Details
Parameter configuration of sk330-8 excavator
Specifications
Bucket backhoe
Tonnage (ton) 33
Operating weight (kg) 34100
Bucket capacity (M3) 1.5
performance
Slewing speed (RPM) 10
Walking speed (km / h) 5.6 / 3.3
Climbing capacity (%) 70
Grounding voltage (kPa) 68
Bucket digging force (KN) 222
Digging force of stick (KN) 165
dynamic system
Engine model Hino j08e
Rated power (kW / RPM) 197 / 2100
Displacement (L) 7.684
Number of cylinders 6
Cylinder diameter × stroke (mm) 112 * 130
Cooling mode water cooling
Working mode: direct injection, turbocharging, built-in intercooler
Hydraulic system
Main pump type double variable displacement axial piston pump, pilot gear pump
Walking hydraulic motor type two groups of two speed change plunger motor
Maximum flow of main pump (L / min) 2 * 294
Working hydraulic oil circuit (MPA) 34.3
Traveling hydraulic circuit (MPA) 34.3
Slewing hydraulic circuit (MPA) 29
Control hydraulic circuit (MPA) 5
Boom cylinder number × cylinder diameter × stroke (mm) 2 * 140 * 1550
Stick cylinder number × cylinder diameter × stroke (mm) 170 * 1788
Bucket cylinder number × cylinder diameter × stroke (mm) 150 * 1193
Oil capacity
Fuel tank (L) 580
Hydraulic tank (L) 280
Hydraulic system (L) 353
Engine oil change quantity (L) 28.5
Coolant (L) 31.1
Body size
Total transport length (mm) 11200
Total transport width (mm) 3200
Total transport height (mm) 3420
Full height of cab (mm) 3160
Total track length (mm) 4650
Track shoe width (mm) 600
Track gauge (mm) 2600
Minimum ground clearance (mm) 500
Ground clearance of counterweight (mm) 1190
Minimum turning radius of front working device (mm) 4370
Rear turning radius (mm) 3500
Scope of work
Maximum excavation radius (mm) 11260
Maximum excavation radius of parking surface (mm) 11060
Maximum excavation depth (mm) 7560
Maximum excavation height (mm) 10580
Maximum unloading height (mm) 7370
Maximum vertical excavation depth (mm) 6610
Maximum effective excavation depth (mm) 7400
