High-Altitude Operation Truck Lifting People 32m Telescopic Boom Bucket Truck for Aerial Work Vehicle Lift Platform
Price:
US$24,800.00
MOQ:
1
Delivery Time:
Negotiable
Product Description
Basic Info.
Model NO.
FTGKS32
Certification
ISO9000, CCC, CE
Emission Standard
Euro 2
Hoesrpower
122 HP
Payload
200kgs
Fuel
Diesel
Transmission Type
Automatic
Drive Wheel
4x2
Condition
New
Total Length(mm)
5998mm
Overall Width(mm)
2050mm
Overall Height (mm)
2700mm
Act. Wt.(Kg)
5382kg
Max. Work Height(M)
32m
Work Radius at Max. Work Height(M)
3.7m
Max. Work Radius(M)
16m
Work Height at Max. Work Radius(M)
23m
Front Overhang(mm)
1075mm
Rear Overhang(mm)
2120mm
Wheelbase(mm)
2800mm
Transverse Span(mm)
6200mm
Longitudinal Span(mm)
5700mm
Chassis
Futian Linghang M Model
Engine
Full Diesel Engine H20-120e60(122 HP)
Trademark
Yitaiwei
Origin
Shandong, China
Production Capacity
150 Sets/Month
Product Description
Truck Mounted Aerial Work Vehicle 32M Isuzu

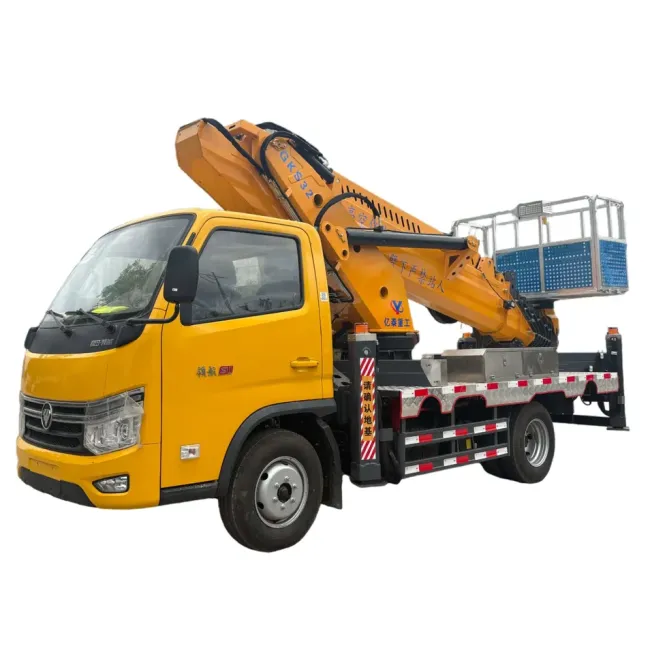

The FTGKS32 high-altitude work vehicle adopts the Foton M chassis and is equipped with a 122 horsepower full diesel engine, with a lifting capacity of up to 32 meters. It is equipped with a 200 kilogram suspension basket, oil brake, double hydraulic support legs, 650 semi steel wire tires, and provides three operation modes: remote control, electronic control, and manual. The vehicle has a large span and high stability, making it the first choice for high-altitude operations such as construction and decoration. At the same time, we can also provide customized services for products below 60 meters to meet customers' special needs. Manufacturer, supports customization, factory prices, and after-sales guarantee.
Specification
Key Technical Specifications
Model:FTGKS32
Total Length(MM):5998
Overall width(MM):2050
Total Length(MM):5998
Overall width(MM):2050
Overall height (MM):2700
Act. Wt.(KG):5382

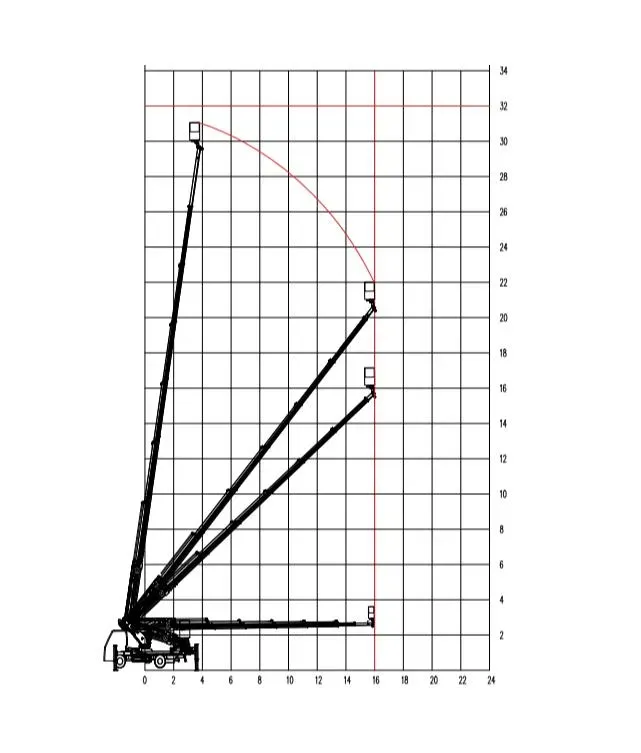

Max. Work Height(M):32
Work radius at Max. work height(M):3.7
Max. Work Radius(M):16
Work height at Max. work radius(M):23
Front overhang(MM):1075
Rear overhang(MM):2120
Wheelbase(MM):2800
Transverse Span(MM):6200
Longitudinal Span(MM):5700
Act. Wt.(KG):5382
Max. Work Height(M):32
Work radius at Max. work height(M):3.7
Max. Work Radius(M):16
Work height at Max. work radius(M):23
Front overhang(MM):1075
Rear overhang(MM):2120
Wheelbase(MM):2800
Transverse Span(MM):6200
Longitudinal Span(MM):5700
Configuration Description
Chassis:Futian Linghang M model
Engine:Full diesel engine H20-120E60(122 HP)
Tyre:650mm Reinforced Steel-Belted Radial Tire
Braking System:Hydraulic Brake
Boom Type:8-Stage Drum-Shaped Polygonal Section Boom & 7-Stage Synchronized Telescoping
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation
Platform Max. Load Capacity(KG):200KG
Outrigger:Front and rear hydraulic V-outrigger(individually adjustable)
Control operation:Work platform and ground remote control operation
Operating system:Electro-hydraulic proportional control system & Realize infinite speed regulation
Leveling system:Hydraulic Auto-Leveling System
Upper/Lower Interlock System:Safety Interlock System for Boarding and Alighting to Prevent Accidents.
Level Detection Function:Real-Time Vehicle Levelness Monitoring.
E-Stop:Real-Time Vehicle Levelness Monitoring.
Vehicle Levelness Tester:Dual-Axis Tilt Status Detection.
Engine:Full diesel engine H20-120E60(122 HP)
Tyre:650mm Reinforced Steel-Belted Radial Tire
Braking System:Hydraulic Brake
Boom Type:8-Stage Drum-Shaped Polygonal Section Boom & 7-Stage Synchronized Telescoping
Rotator:21 inch disc worm gear integrated turntable(First tier brands) & 360 degree arbitrary rotation
Platform Max. Load Capacity(KG):200KG
Outrigger:Front and rear hydraulic V-outrigger(individually adjustable)
Control operation:Work platform and ground remote control operation
Operating system:Electro-hydraulic proportional control system & Realize infinite speed regulation
Leveling system:Hydraulic Auto-Leveling System
Upper/Lower Interlock System:Safety Interlock System for Boarding and Alighting to Prevent Accidents.
Level Detection Function:Real-Time Vehicle Levelness Monitoring.
E-Stop:Real-Time Vehicle Levelness Monitoring.
Vehicle Levelness Tester:Dual-Axis Tilt Status Detection.
Reinforced Boom & Dual Luffing Cylinders & Two-Stage Telescopic Hydraulic Outriggers
MIIT-Certified Special Purpose Vehicle Manufacturing Enterprises
