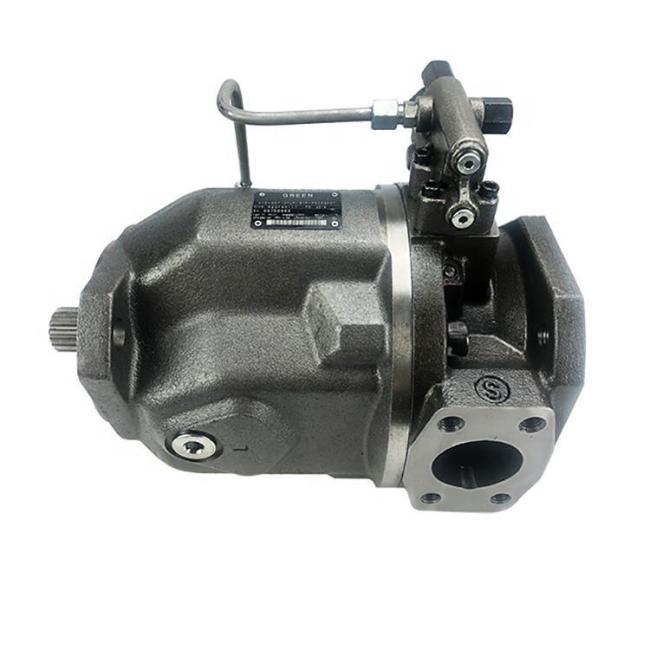

A10VSO100DFE1/31R-PPA12K02 A10VSO100FHD/31R-PPA12N00 Hydraulic Pump Rexroth Axial Piston Pump German A10VSO100DR DFR
A10VSO100DFE1/31R-PPA12K02 A10VSO100FHD/31R-PPA12N00 Hydraulic pump Rexroth axial piston pump German A10VSO100DR DFR
| Item | Data |
| Power | 37.5KW |
| Bucketcapacity | 2.8 M3 |
| Operating weight | 125Ton |
| Max. tractive force | 96kN |
| Max. breakout force | 96kN |
| Tipping load | 60kN |
| Engine displacement | 6750ml |
| Max. torque | 500N.m |
| R902433755 A A10VSO100 DFLR/31R-PPA12N00 |
| R910918975 A A10VSO100 FED /31R-PPA12N00 |
| R900212797 A10VSO100DFLR/31R-PPA12K37 |
| R900213284 A10VSO100DFLR/31R-PPA12K37 (18,5-1450) |
| R900991119 A10VSO100DFLR/31R-PPA12N00 SO258 |
| R900225250 A10VSO100DFLR/31R-VPA12N00 (15-1450) |
| R902411596 A10VSO100DFR + A10VSO28DFR |
| R900432617 A10VSO100DFR/31R-PPA12N00 |
| R900729127 A10VSO100DFR1+A10VSO28DFR1+AZPF-1X-004 |
| R900064533 A10VSO100DFR1/31R-PPA12K27 SO126 |
| R900203423 A10VSO100DFR1/31R-PPA12N00 SO169 |
| R900022777 A10VSO100DR/31R-PPA12K26 |
| R900548012 A10VSO100DR/31R-PPA12K37 |
| R900032995 A10VSO100DR/31R-PPA12K57 |
| R900432434 A10VSO100DR/31R-PPA12N00 |
| R902411481 A10VSO100DRG+PGF3-3X/050 |
FAQ:
2. What are the available displacement sizes?
The A10VSO series offers displacements from 10 to 140 cc/rev, categorized into:
• 31/32 series: 18–140 cc/rev (common sizes: 28, 45, 71, 100, 140).
• 52 series: 10 cc/rev (limited models).
3. How does the control mechanism work?
The pump supports multiple control types, indicated in the model code (e.g., DFR1):
• DR: Pressure control (remote).
• DFR: Pressure/flow control.
• DFLR: Pressure/flow/power control.
• FE/DFE: Electrohydraulic flow or pressure/flow control.
• ED: Electrohydraulic pressure control.
4. What are the installation requirements?
• Flange types: ISO 2-hole (A) or 4-hole (B) for larger sizes (e.g., 140 cc/rev).
• Shaft options: Keyed straight shaft (P), SAE splined shaft (S/R).
• Seals: NBR (standard) or FKM (fluorocarbon) for high-temperature fluids.
