PV7-1X/40-45RE37MW6-16WH PV7-1X/100-118RE07MD6-16 PV7-1X/40-45RE37MC5-16WG PV7 series hydraulic oil pump imported from Germany with Rexroth blade pump
Price:
Negotiable
MOQ:
1
Delivery Time:
2 weeks
Brand:
Rexroth
Product Description
PV7 Series Hydraulic Vane Pumps
Product Overview
High-performance PV7 series hydraulic vane pumps imported from Germany with Rexroth blade pump technology. Available in direct-acting and pilot-operated configurations for various industrial applications.
Featured Models
PV7-1X/40-45RE37MW6-16WH
PV7-1X/100-118RE07MD6-16
PV7-1X/40-45RE37MC5-16WG
Technical Specifications
Performance Comparison
| Parameter | Direct-Acting Series | Pilot-Operated Series |
|---|---|---|
| Model Range | PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10 | PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16 |
| Displacement per Revolution | 10-25 cm³/rev | 14-150 cm³/rev |
| Max Continuous Pressure | 100 bar | 160 bar |
| Max Peak Pressure | 120 bar (short-term overload ≤5s) | 200 bar (short-term overload ≤5s) |
| Speed Range | 600-2800 rpm | 600-3600 rpm |
| Max Flow Rate at 1800 rpm | 36 l/min | 270 l/min |
| Volumetric Efficiency | ≥90% (at 160 bar, 1800 rpm, ISO VG 46) | ≥92% (at 160 bar, 1800 rpm, ISO VG 46) |
| Total Efficiency | ≥80% | ≥82% |
| Noise Level at 1m | ≤63 dB(A) | ≤65 dB(A) |
Operating Conditions
| Parameter | Specification |
|---|---|
| Suction Pressure Range | -0.8 to +1 bar (absolute: 0.2-1.1 bar) |
| Compatible Hydraulic Fluids | Mineral oil (HLP) and synthetic oil (HETG/HEES) |
| Fluid Viscosity Range | 10-1000 mm²/s (operation); 2-1500 mm²/s (start-up) |
| Optimal Viscosity Range | 16-160 mm²/s |
| Fluid Temperature Range | -20 to +80 °C (operation); -40 to +90 °C (storage) |
| Mounting Standard | ISO 3019-2 flange; optional foot mounting available |
Note: Use FKM seals when operating with synthetic fluids
Available Models
PV7-1X/100-118RE07MC5-16
PV7-1X/25-30RE01KC3-16
PV7-1X/10-20RE01MC5-10WG
PV7-1X/25-30RE01MW0-16
PV7-1X/16-20RE01MD3-16
PV7-1X/16-20RE01MC0-16-P110
PV7-1X/40-45RE37KD0-16-C3.1
PV7-1X/63-71RE07MC5-16WH
PV7-1X/16-30RE01KC0-08
PV7-1X/10-14RE01MD5-16
PV7-1X/63-71RE07MC6-16
PV7-1X/16-20RE01KD0-16
PV7-1X/10-14RE01MW0-16
PV7-1X/63-71RE07MC0-16-C3.1
PV7-1X/16-30RE01MW0-08WH
PV7-1X/100-150RE07MC0-08-A446
PV7-1X/25-30RE01MC5-16WG
PV7-1X/10-20RE01MC0-10-A497
PV7-1X/100-150RE07KC0-08
PV7-1X/100-150RE07MD5-08
PV7-1X/25-45RE01MC0-08-P25Q50
PV7-1X/40-71RE37MC5-08
PV7-1X/10-14RE01KD0-16
PV7-1X/16-20RE01MC0-16-P120
PV7-1X/100-150RE07MW0-08WH
PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH

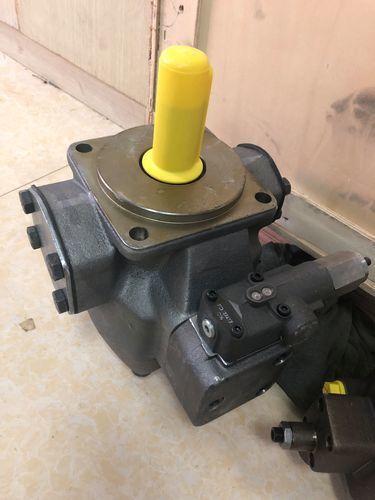

Product Image
Frequently Asked Questions
How to troubleshoot unstable flow output in PV7-2X variable-displacement pumps?
Check for contamination in the compensation valve core, inspect control mechanism spring fatigue, verify oil pressure stability, and clean or replace faulty components promptly.
What mounting flanges are available for PV7 series pumps?
Common mounting flanges include ISO 3019/2, SAE A, and SAE B flanges. Customized mounting flanges can be provided according to customer requirements.
Can PV7 series pumps be used in high-frequency start-stop systems?
Yes, but ensure the pump is filled with oil before each start to avoid dry running, and select a motor with good starting performance to reduce start-stop impact.
What is the impact of oil viscosity on PV7 series pump performance?
Excessively high viscosity increases suction resistance and power consumption; excessively low viscosity increases internal leakage and reduces volumetric efficiency. Recommended viscosity is 20-30 mm²/s under normal operating temperature.
How to replace vanes in PV7 series pumps?
Disassemble the pump end cover, remove stator and rotor assembly, extract worn vanes, install new vanes in rotor slots (note installation direction), apply hydraulic oil to vanes, and reassemble pump in reverse order of disassembly.
