China PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany for sale

PV7-1X/100-118RE07KC5-16 PV7-1X/25-30RE01MC7-16 PV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

Name: PV7-1X/100-118RE07KC5-16nPV7-1X/25-30RE01MC7-16tnPV7-1X/63-71RE07MC5-16 Vane pump PV7 series Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany
Brand: Quanzhou Yisenneng Hydraulic Electromechanical Equipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2 weeks

Brand: Rexroth

Product Description

Rexroth PV7 Series Vane Pumps

PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16

Rexroth pilot-operated hydraulic oil pump, original equipment, in stock, made in Germany

Technical Specifications

Parameter/Property Category	Direct-Acting (PV7-A) Series	Pilot-Operated (PV7-C/D/N/W) Series	Unit	Remarks
Model Range	PV7-1X/06-10RA01MA0-10, PV7-2X/20-25RA01MA0-10	PV7-1X/14-20RE01MC0-16, PV7-1X/100-118RE07KD0-16	#VALUE!	1X/2X=component series; 06/14/20=frame size
Displacement per Revolution	10-25	14-150	cm³/rev	Displacement varies by specific model suffix
Max. Continuous Working Pressure	100	160	bar	PV7-A: ≤100 bar; PV7-C/D/N/W: ≤160 bar
Max. Peak Pressure	120	200	bar	Short-term (≤5s) overload only
Speed Range	600-2800	600-3600	rpm	Higher speed for smaller displacement models
Max. Flow Rate (at 1800 rpm)	36	270	l/min	Calculated at rated displacement
Volumetric Efficiency (Rated Condition)	≥90%	≥92%	%	At 160 bar, 1800 rpm, ISO VG 46 oil
Total Efficiency (Nominal Operation)	≥80%	≥82%	%	Includes mechanical & volumetric efficiency
Suction Pressure Range	1	-0.8 to +1	bar	Absolute pressure: 0.2-1.1 bar
Fluid Compatibility	Mineral oil (HLP), synthetic oil (HETG/HEES)	Mineral oil (HLP), synthetic oil (HETG/HEES)	-	Use FKM seals for synthetic fluids
Fluid Viscosity Range	10-1000 (operation); 2-1500 (start-up)	10-1000 (operation); 2-1500 (start-up)	mm²/s	Optimal: 16-160 mm²/s
Fluid Temperature Range	-20 to +80	-20 to +80	°C	Storage: -40 to +90 °C
Noise Level (1 m Distance, Rated Operation)	≤63	≤65	dB(A)	Pilot-operated models have optimized noise reduction
Mounting Standard	ISO 3019-2 flange	ISO 3019-2 flange	-	Optional foot mounting for some models
Shaft Connection	ISO 4162 splined shaft	ISO 4162 splined shaft	-	Keyed shaft available on request
Seal Material	NBR (standard); FKM (optional)	NBR (standard); FKM (optional)	-	NBR for mineral oil; FKM for synthetic oil
Weight	8-12	10-35	kg	Depends on displacement and control type

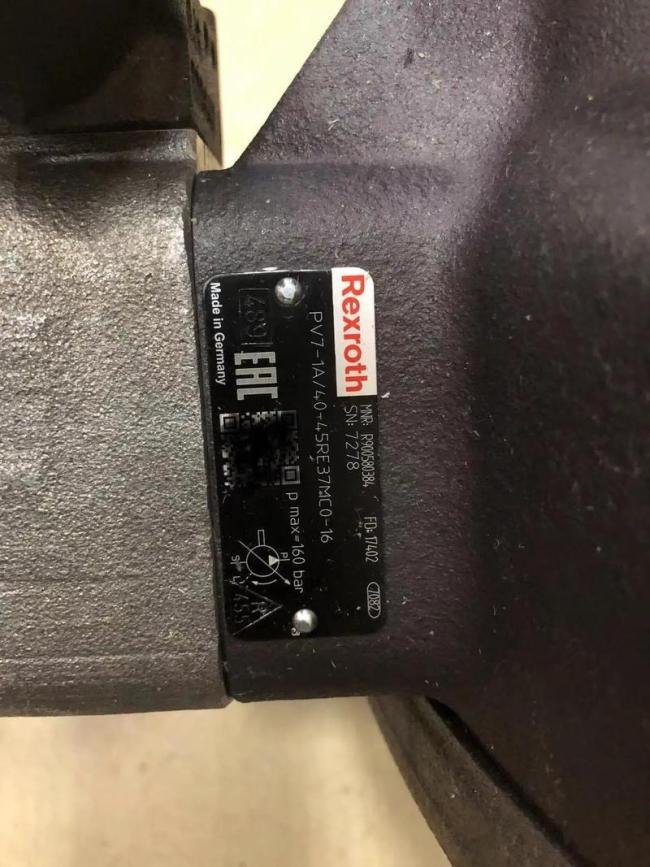

Rexroth PV7 Series Vane Pump technical diagram and product image

Available Models

PV7-1X/16-20RE01MC5-16WG
PV7-1X/10-20RE01MW0-10WH
PV7-1X/63-94RE07KD0-08
PV7-1X/63-71RE07MW0-16WH
PV7-1X/63-71RE07MC7-16WH
PV7-1X/40-45RE37MC0-16
PV7-1X/63-94RE07MC0-08-P80Q114
PV7-1X/40-45RE37MC5-16WH
PV7-1X/10-14RE01KN0-16
PV7-1X/25-30RE01MC5-16WH
PV7-1X/63-71RE07KC0-16
PV7-1X/10-20RE01MC3-10
PV7-1X/16-20RE01MN0-16
PV7-1X/25-45RE01MW0-08WH
PV7-1X/63-71RE07MN0-16
PV7-1X/63-71RE07KD0-16
PV7-1X/16-20RE01MC8-16
PV7-1X/40-71RE37MW0-08WH
PV7-1X/40-45RE37MD0-16-P50Q36
PV7-1X/40-45RE37MC7-16WG
PV7-1X/100-118RE07MN5-16
PV7-1X/25-45RE01MC7-08WG
PV7-1X/63-71RE07MC7-16
PV7-1X/100-150RE07MC3-08
PV7-1X/40-45RE37KC0-16
PV7-1X/63-94RE07MC5-08
PV7-1X/16-20RE01MC0-16-P60Q26
PV7-1X/16-20RE01MC5-16
PV7-1X/40-71RE37MC5-08WG
PV7-1X/25-45RE01MC7-08
PV7-1X/25-30RE01MW5-16WH
PV7-1X/10-20RE01MD0-10
PV7-1X/63-71RE07MD0-16-Q90
PV7-1X/16-30RE01MC3-08
PV7-1X/100-150RE07MC7-08
PV7-1X/100-118RE07MN0-16
PV7-1X/10-20RE01MC5-10
PV7-1X/25-30RE01MC5-16WH-A234
PV7-1X/100-150RE07MC5-08WH
PV7-1X/25-30RE01MW0-16WH
PV7-1X/10-20RE01MC7-10WH
PV7-1X/25-45RE01MC5-08
PV7-1X/40-45RE37MC8-16
PV7-1X/16-20RE01MW0-16WH
PV7-1X/16-20RE01MC3-16-P50Q25
PV7-1X/100-118RE07KC0-16
PV7-1X/40-71RE37MC5-08WH
PV7-1X/100-118RE07MC6-16
PV7-1X/40-71RE37MC3-08
PV7-1X/40-71RE37MC7-08WH
PV7-1X/10-14RE01MW0-16WH
PV7-1X/10-20RE01MC3-10-A497
PV7-1X/16-20RE01MC3-16
PV7-1X/16-20RE01MC5-16WH
PV7-1X/63-71RE07MC3-06-A460
PV7-1X/16-30RE01MC5-08WH
PV7-1X/10-14RE01MC0-16-P100
PV7-1X/63-94RE07MC5-08WH
PV7-1X/10-14RE01MC3-16
PV7-1X/40-45RE37MD0-16
PV7-1X/100-118RE07MC7-16WH
PV7-1X/25-45RE01MC5-08WH
PV7-1X/16-20RE01MC0-16
PV7-1X/63-71RE07MC5-16WG
PV7-1X/63-71RE07KC3-16
PV7-1X/10-20RE01MC5-10WH
PV7-1X/16-20RE01MC7-16
PV7-1X/10-14RE01MC7-16
PV7-1X/63-94RE07MC0-08
PV7-1X/16-20RE01MC0-16-P100Q29
PV7-1X/25-30RE01MC0-16-P100Q36
PV7-1X/40-45RE37MW5-16WH
PV7-1X/10-14RE01MC0-16-P45
PV7-1X/25-45RE01MN0-08
PV7-1X/25-30RE01MC0-16
PV7-1X/63-94RE07MC0-08-P75
PV7-1X/63-71RE07MW5-16WH
PV7-1X/25-30RE01MC5-16
PV7-1X/40-71RE37MD0-08
PV7-1X/100-150RE07MD0-08
PV7-1X/10-20RE01MC7-10
PV7-1X/10-14RE01MD3-16
PV7-1X/100-118RE07MW0-16WH
PV7-1X/100-118RE07KD0-16
PV7-1X/10-14RE01MC5-16
PV7-1X/63-94RE07MN0-08
PV7-1X/10-14RE01KC0-16
PV7-1X/40-45RE37MC3-16
PV7-1X/40-45RE37MC7-16
PV7-1X/16-20RE01MC0-16-C3.1
PV7-1X/40-45RE37MC0-16-A446
PV7-1X/100-118RE07MW0-16WG
PV7-1X/100-150RE07MC0-08
PV7-1X/63-94RE07MC5-08WG
PV7-1X/16-20RE01KC0-16
PV7-1X/40-55RE37MC0-08-A449
PV7-1X/63-94RE07MD0-08
PV7-1X/16-20RE01MD0-16-Q25
PV7-1X/40-45RE37MD0-16-P50Q39
PV7-1X/63-71RE07MD0-16-Q65
PV7-1X/16-30RE01MC0-08
PV7-1X/40-45RE37MW0-16
PV7-1X/40-71RE37MC0-08
PV7-1X/100-118RE07MW6-16WH
PV7-1X/16-30RE01MC5-08WG
PV7-1X/10-20RE01MC0-10
PV7-1X/63-71RE07MW0-16
PV7-1X/63-94RE07KC0-08
PV7-1X/40-45RE37MC7-16WH
PV7-1X/10-14RE01MC0-16-P60Q15
PV7-1X/63-71RE07KW0-16WG
PV7-1X/100-118RE07KC5-16
PV7-1X/25-30RE01MC7-16
PV7-1X/63-71RE07MC5-16
PV7-1X/25-30RE01KD0-16
PV7-1X/10-14RE01MC5-16WH
PV7-1X/10-20RE01MC0-10-P45

Frequently Asked Questions

Does Rexroth PV7 vane pump provide precise hydraulic power transmission?

Yes, it ensures precise and stable hydraulic power transmission for precision equipment.

What is the power-to-weight ratio of Rexroth PV7 vane pump like?

It has a high power-to-weight ratio, making it suitable for applications where weight is a concern.

Can Rexroth PV7 vane pump be customized?

Yes, it can be customized with different control options to meet specific application needs.

Is Rexroth PV7 vane pump compatible with other Rexroth hydraulic components?

Yes, it has excellent compatibility with other Rexroth hydraulic components for seamless system integration.

Does Rexroth PV7 vane pump have pressure fluctuations during operation?

No, it provides smooth flow without obvious pressure fluctuations.
