PV7-1X/16-20RE01MD0-16 PV7-1X/25-30RE01MN0-16 PV7-1X/10-14RE01MC6-16 Vane pump pilot-operated hydraulic oil pump PV7 series Rexroth hydraulic pump made in Germany
Price:
Negotiable
MOQ:
1
Delivery Time:
2 weeks
Brand:
Rexroth
Product Description
PV7 Series Vane Pump - Pilot-Operated Hydraulic Oil Pump
Product Overview
The PV7 series represents high-performance pilot-operated hydraulic vane pumps manufactured by Rexroth in Germany. These pumps are engineered for demanding industrial applications requiring reliable hydraulic power with optimized noise reduction and extended service life.
Technical Specifications
| Parameter | Direct-Acting Models | Pilot-Operated Models | Unit | Notes |
|---|---|---|---|---|
| Noise Level (1 m Distance, Rated Operation) | ≤63 | ≤65 | dB(A) | Pilot-operated models have optimized noise reduction |
| Mounting Standard | ISO 3019-2 flange | ISO 3019-2 flange | - | Optional foot mounting for some models |
| Shaft Connection | ISO 4162 splined shaft | ISO 4162 splined shaft | - | Keyed shaft available on request |
| Seal Material | NBR (standard); FKM (optional) | NBR (standard); FKM (optional) | - | NBR for mineral oil; FKM for synthetic oil |
| Weight | 8-12 | 10-35 | kg | Depends on displacement and control type |
| Control Type | Direct-acting pressure compensation | Pilot-operated pressure/flow control | - | PV7-A: direct-acting; PV7-C/D/N/W: pilot-operated |
| Response Time (Pressure Rise) | 40-60 | 20-40 | ms | Faster response for pilot-operated models |
| Housing Material | GG25 cast iron | GG25 cast iron | - | High strength, vibration-resistant |
| Rotor/Stator Material | 42CrMo4 alloy steel (quenched & tempered) | 42CrMo4 alloy steel (quenched & tempered) | - | High hardness & wear resistance |
| Vane Material | Wear-resistant powder metallurgy alloy | Wear-resistant powder metallurgy alloy | - | Self-lubricating & anti-seizure |
| Service Life (Normal Conditions) | 8000-10000 | 8000-10000 | hours | Depends on oil cleanliness & maintenance |

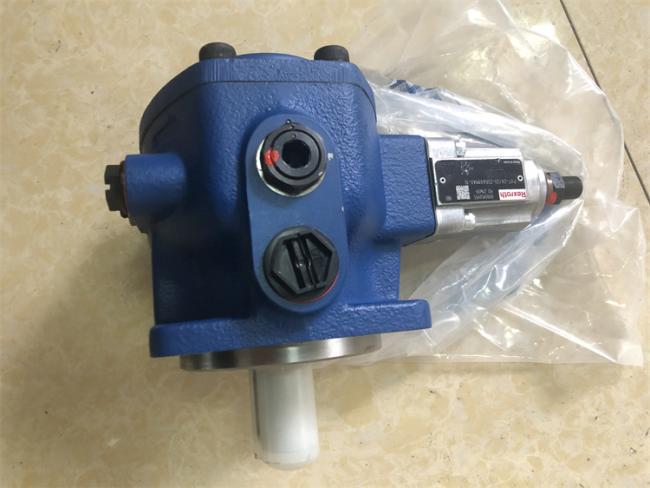

Product Image
Available Models
- PV7-1X/63-71RE07MC0-16-C3.1
- PV7-1X/16-30RE01MW0-08WH
- PV7-1X/100-150RE07MC0-08-A446
- PV7-1X/25-30RE01MC5-16WG
- PV7-1X/10-20RE01MC0-10-A497
- PV7-1X/100-150RE07KC0-08
- PV7-1X/100-150RE07MD5-08
- PV7-1X/25-45RE01MC0-08-P25Q50
- PV7-1X/40-71RE37MC5-08
- PV7-1X/10-14RE01KD0-16
- PV7-1X/16-20RE01MC0-16-P120
- PV7-1X/100-150RE07MW0-08WH
- PV7-1X/16-20RE01MC5-16WG
- PV7-1X/10-20RE01MW0-10WH
- PV7-1X/63-94RE07KD0-08
- PV7-1X/63-71RE07MW0-16WH
- PV7-1X/63-71RE07MC7-16WH
- PV7-1X/40-45RE37MC0-16
- PV7-1X/63-94RE07MC0-08-P80Q114
- PV7-1X/40-45RE37MC5-16WH
- PV7-1X/10-14RE01KN0-16
- PV7-1X/25-30RE01MC5-16WH
- PV7-1X/63-71RE07KC0-16
- PV7-1X/10-20RE01MC3-10
- PV7-1X/16-20RE01MN0-16
- PV7-1X/25-45RE01MW0-08WH
- PV7-1X/63-71RE07MN0-16
- PV7-1X/63-71RE07KD0-16
- PV7-1X/16-20RE01MC8-16
- PV7-1X/40-71RE37MW0-08WH
- PV7-1X/40-45RE37MD0-16-P50Q36
- PV7-1X/40-45RE37MC7-16WG
- PV7-1X/100-118RE07MN5-16
- PV7-1X/25-45RE01MC7-08WG
- PV7-1X/63-71RE07MC7-16
- PV7-1X/100-150RE07MC3-08
- PV7-1X/40-45RE37KC0-16
- PV7-1X/63-94RE07MC5-08
- PV7-1X/16-20RE01MC0-16-P60Q26
- PV7-1X/16-20RE01MC5-16
- PV7-1X/40-71RE37MC5-08WG
- PV7-1X/25-45RE01MC7-08
- PV7-1X/25-30RE01MW5-16WH
- PV7-1X/10-20RE01MD0-10
- PV7-1X/63-71RE07MD0-16-Q90
- PV7-1X/16-30RE01MC3-08
- PV7-1X/100-150RE07MC7-08
- PV7-1X/100-118RE07MN0-16
- PV7-1X/10-20RE01MC5-10
- PV7-1X/25-30RE01MC5-16WH-A234
- PV7-1X/100-150RE07MC5-08WH
- PV7-1X/25-30RE01MW0-16WH
- PV7-1X/10-20RE01MC7-10WH
- PV7-1X/25-45RE01MC5-08
- PV7-1X/40-45RE37MC8-16
- PV7-1X/16-20RE01MW0-16WH
- PV7-1X/16-20RE01MC3-16-P50Q25
- PV7-1X/100-118RE07KC0-16
- PV7-1X/40-71RE37MC5-08WH
- PV7-1X/100-118RE07MC6-16
- PV7-1X/40-71RE37MC3-08
- PV7-1X/40-71RE37MC7-08WH
- PV7-1X/10-14RE01MW0-16WH
- PV7-1X/10-20RE01MC3-10-A497
- PV7-1X/16-20RE01MC3-16
- PV7-1X/16-20RE01MC5-16WH
- PV7-1X/63-71RE07MC3-06-A460
- PV7-1X/16-30RE01MC5-08WH
- PV7-1X/10-14RE01MC0-16-P100
- PV7-1X/63-94RE07MC5-08WH
- PV7-1X/10-14RE01MC3-16
- PV7-1X/40-45RE37MD0-16
- PV7-1X/100-118RE07MC7-16WH
- PV7-1X/25-45RE01MC5-08WH
- PV7-1X/16-20RE01MC0-16
- PV7-1X/63-71RE07MC5-16WG
- PV7-1X/63-71RE07KC3-16
- PV7-1X/10-20RE01MC5-10WH
- PV7-1X/16-20RE01MC7-16
- PV7-1X/10-14RE01MC7-16
- PV7-1X/63-94RE07MC0-08
- PV7-1X/16-20RE01MC0-16-P100Q29
- PV7-1X/25-30RE01MC0-16-P100Q36
- PV7-1X/40-45RE37MW5-16WH
- PV7-1X/10-14RE01MC0-16-P45
- PV7-1X/25-45RE01MN0-08
- PV7-1X/25-30RE01MC0-16
- PV7-1X/63-94RE07MC0-08-P75
- PV7-1X/63-71RE07MW5-16WH
Frequently Asked Questions
What direction of rotation is available?
The standard offering is right-hand rotation (designated 'R'), viewed from the drive shaft end.
What types of shaft are offered?
The standard is a parallel keyed shaft (designated 'A').
What are the standard pipe connections?
Standard connections are with pipe threads according to DIN EN ISO 228-1.
What seal material is standard?
Standard seals are made of NBR, suitable for use with HLP mineral oil.
What are the options for the zero stroke pressure setting?
The setting is model-dependent. For instance, a PV7../06-10 pump can be set to 25-50 bar (code 05) or 50-100 bar (code 10).
