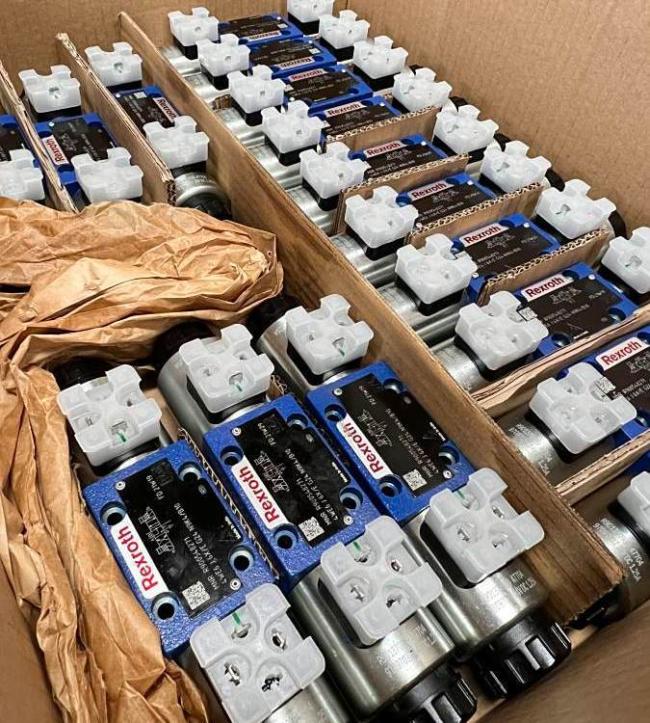

FAQs for Rexroth 4WE6H6X/EG24N9K4 Solenoid Valve

1. Q: What is the main function of the "H" center position?

   A:​ The "H" center blocks all four ports (P, A, B, T) in the neutral position, effectively locking the connected actuator (cylinder or motor) in place against movement. It is used for secure stopping under load.

2. Q: What is the voltage and power requirement for the solenoid?

   A:​ The voltage specification is 24V DC. The solenoid draws approximately 22W of power under standard operating conditions.

3. Q: Where should the solenoid's drain port (Y) be connected?

   A:​ The drain port (Y) must be connected directly to the tank with zero backpressure. Any pressure in this line can cause sluggish or failed shifting, internal leakage, and potential coil damage.

4. Q: The valve is stuck. How can I manually test it?

   A:​ Use the manual override (standard on this model) to shift the valve. If it moves freely manually, the issue is likely electrical (e.g., insufficient voltage). If it is also stiff manually, the cause is likely mechanical, such as contamination, spool damage, or excessive system pressure.

5. Q: Where can I find detailed technical drawings and performance data?

   A:​ Please refer to the official product datasheet, document number RE 29030. This can be found on the manufacturer's website or requested from an authorized distributor or technical support.
