R900424279 DBDS20P1X/400 German made Rexroth overflow valve

Name: R900424279 DBDS20P1X/400 German made Rexroth overflow valve
Brand: Quanzhou Yisenneng Hydraulic Electromechanical Equipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2 weeks

Brand: Rexroth

Product Description

R900424279 DBDS20P1X/400 German made Rexroth overflow valve

Product Overview

Rexroth DBDS20P1X/400 — Direct-Acting Pressure Relief Valve (P/N: R900424279)

Technical Specifications

Parameter	Value
Part Number	R900424279
Model	DBDS 20 P1X / 400
Valve Type	Direct-acting seat-type pressure relief valve (DBD series)
Nominal Size (NG)	20 — subplate mounting per ISO 6264 / NG20 (DIN 24340 Form A)
Adjustment Type	Hexagon socket setscrew with protective cap (P1X = index 1X, adjustable by Allen key)
Max. Adjustable Relief Pressure	400 bar (40 MPa)
Max. Operating Pressure (P-port)	630 bar
Max. Flow Rate (Qmax)	approx. 200-250 L/min (Size 20 DBD)
Ports	2 (P → T, Pressure to Tank)
Seal Material	NBR (standard, code omitted = NBR)
Hydraulic Fluid	Mineral oil HL, HLP per DIN 51524; HFC (water-glycol); HLPD, HVLP, HVLPD
Fluid Temperature Range	-30 °C to +80 °C (NBR seals)
Viscosity Range	10-800 mm²/s
Weight (approx.)	~8.1 kg
Body Material	Steel, zinc-plated

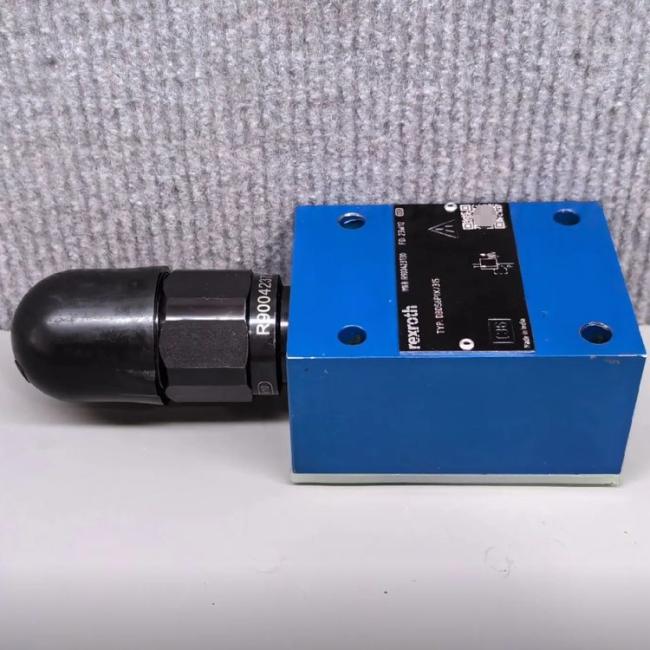

Rexroth DBDS20P1X/400 Pressure Relief Valve

Related Part Numbers

R900967790 4WREE10EA25-2X/G24K31/A1V
R900767561 4WREE10EA25-2X/G24K31/F1V
R900939866 4WREE10EA50-2X/G24K31/A1V
R900971420 4WREE10EA50-2X/G24K31/F1V
R900940191 4WREE10EA75-2X/G24K31/A1V
R900976330 4WREE10EA75-2X/G24K31/F1V
R900710343 4WREE10EB50-2X/G24K31/A1V
R900950497 4WREE10EB75-2X/G24K31/A1V
R900724343 4WREE10EB75-2X/G24K31/F1V
R900927237 4WREE10Q2-50-2X/G24K31/A1V
R900927236 4WREE10Q2-75-2X/G24K31/A1V
R901066046 4WREE10Q5-50-2X/G24K31/A1V
R901113345 4WREE10Q5-50-2X/G24K31/A1V=DE
R901028415 4WREE10R3-75-2X/G24K31/A1V
R901341484 4WREE10R3-75-2X/G24K31/F1V
R901037424 4WREE10R75-2X/G24K31/A1V
R900724591 4WREE10R75-2X/G24K31/F1V
R901007660 4WREE10R75-2X/G24K31/F1V-741
R900950365 4WREE10V1-25-2X/G24K31/A1V
R900976334 4WREE10V1-25-2X/G24K31/F1V
R900943804 4WREE10V1-50-2X/G24K31/A1V
R900972643 4WREE10V1-50-2X/G24K31/F1V
R901233907 4WREE10V1-50-2X/G24K31/F1V-876
R901412403 4WREE10V1-75-2X/G24K31/A1M
R900950902 4WREE10V1-75-2X/G24K31/A1V
R901400160 4WREE10V1-75-2X/G24K31/F1M
R901024870 4WREE10V1-75-2X/G24K31/F1V
R900933075 4WREE10V25-2X/G24K31/A1V
R900779950 4WREE10V25-2X/G24K31/F1V
R900927235 4WREE10V50-2X/G24K31/A1V
R987243696 4WREE10V50-2X/G24K31/A1V-826+3.1K
R901354782 4WREE10V50-2X/G24K31/F1M
R900924975 4WREE10V50-2X/G24K31/F1V
R900924607 4WREE10V75-2X/G24K31/A1V
R987243698 4WREE10V75-2X/G24K31/A1V-826+3.1K
R901354783 4WREE10V75-2X/G24K31/F1M
R900617269 4WREE10V75-2X/G24K31/F1V
R900956458 4WREE10W1-25-2X/G24K31/A1V
R900962405 4WREE10W1-25-2X/G24K31/F1V
R900933077 4WREE10W1-50-2X/G24K31/A1V
R901154931 4WREE10W1-50-2X/G24K31/A1V-280
R901354784 4WREE10W1-50-2X/G24K31/F1M
R900965185 4WREE10W1-50-2X/G24K31/F1V
R901371014 4WREE10W1-75-2X/G24K31/A1M
R900927234 4WREE10W1-75-2X/G24K31/A1V
R901154933 4WREE10W1-75-2X/G24K31/A1V-280
R901354786 4WREE10W1-75-2X/G24K31/F1M
R900976119 4WREE10W1-75-2X/G24K31/F1V
R901185591 4WREE10W2-75-2X/G24K31/A1V
R901377557 4WREE10W25-2X/G24K31/A1M
R900933074 4WREE10W25-2X/G24K31/A1V
R901127151 4WREE10W25-2X/G24K31/A1V-280
R900953102 4WREE10W25-2X/G24K31/F1V
R900935771 4WREE10W3-25-2X/G24K31/A1V
R900931319 4WREE10W3-50-2X/G24K31/A1V
R900969321 4WREE10W3-75-2X/G24K31/A1V
R900244748 4WREE10W3-75-2X/G24K31/F1V
R900931371 4WREE10W50-2X/G24K31/A1V
R900974227 4WREE10W50-2X/G24K31/A1V-280
R901354788 4WREE10W50-2X/G24K31/F1M
R900949806 4WREE10W50-2X/G24K31/F1V
R900927233 4WREE10W75-2X/G24K31/A1V
R901135118 4WREE10W75-2X/G24K31/A1V-280
R900969501 4WREE10W75-2X/G24K31/A1V=DE
R900741017 4WREE10W75-2X/G24K31/A1V=LB
R901354791 4WREE10W75-2X/G24K31/F1M
R900948360 4WREE10W75-2X/G24K31/F1V
R901430295 4WREE10WA25-2X/G24K31/A1V
R901060996 4WREE10WA25-2X/G24K31/F1V
R900247296 4WREE10WA50-2X/G24K31/A1V
R901063131 4WREE10WA50-2X/G24K31/F1V
R901002587 4WREE10WA75-2X/G24K31/A1V
R900963483 4WREE10WA75-2X/G24K31/F1V
R901097145 4WREE10WB50-2X/G24K31/A1V
R900960911 4WREE10WB50-2X/G24K31/F1V
R900960910 4WREE10WB50-2X/G24K31/F1V
R901268120 4WREE10WB75-2X/G24K31/A1V
R901244712 4WREE10XA00-2X/G24K31/A1V-953
R900938420 4WREE6E04-2X/G24K31/A1V
R900978168 4WREE6E04-2X/G24K31/F1V
R900912156 4WREE6E08-2X/G24K31/A1V
R900974228 4WREE6E08-2X/G24K31/A1V-280
R901354730 4WREE6E08-2X/G24K31/F1M
R900928726 4WREE6E08-2X/G24K31/F1V
R901394155 4WREE6E1-08-2X/G24K31/A1M
R900933794 4WREE6E1-08-2X/G24K31/A1V
R901354733 4WREE6E1-08-2X/G24K31/F1M
R900976811 4WREE6E1-08-2X/G24K31/F1V
R901394310 4WREE6E1-16-2X/G24K31/A1M
R900915686 4WREE6E1-16-2X/G24K31/A1V
R901155084 4WREE6E1-16-2X/G24K31/A1V-280
R900617482 4WREE6E1-16-2X/G24K31/F1V
R901368370 4WREE6E1-32-2X/G24K31/A1M
R900928553 4WREE6E1-32-2X/G24K31/A1V
R901154930 4WREE6E1-32-2X/G24K31/A1V-280
R901354735 4WREE6E1-32-2X/G24K31/F1M
R900949222 4WREE6E1-32-2X/G24K31/F1V
R901371016 4WREE6E16-2X/G24K31/A1M

Frequently Asked Questions

Q1: Is this a pilot-operated or direct-acting relief valve?

It is a direct-acting seat valve (DBD series) — no pilot stage. The spring-loaded poppet/ball opens immediately when system pressure exceeds the spring preload.

Q2: What does "P1X / 400" mean?

P1 = adjustment type: hexagon socket with protective cap (Allen key adjustable)
1X = component series index (dimensionally interchangeable within series 1X)
/400 = spring pressure stage, maximum settable relief pressure = 400 bar

Q3: How do I adjust the relief pressure?

Depressurize the system, remove the protective cap, turn the internal setscrew with an Allen key — clockwise to increase, counterclockwise to decrease. Reinstall the cap and verify with a pressure gauge at the P-port. Factory preset is typically near the low end of the spring range; always adjust on-site.

Q4: Which subplate is required?

Use a standard NG20 (Size 20) subplate per ISO 6264 with P and T ports. The valve mounts via four M12 bolts (tightening torque approx. 70-80 N*m). Subplate port threads are commonly G 3/4" BSP or M27×2.

Q5: Does T-port backpressure affect the set pressure?

Yes. The spring chamber drains internally to the T-port, so any backpressure at T adds 1:1 to the relief/cracking pressure. Keep T-line backpressure minimal or compensate in the setpoint.

Q6: Common fault symptoms & causes?

Pressure won't reach set value: wrong spring grade (not /400), high T-backpressure, poppet sticking due to contaminated oil, damaged seating, or broken spring
Continuous dribble / leak: damaged seating surface, aged O-ring, or contamination trapped in the seat — clean or replace
Chatter / noise: air in the system, flow exceeding ~250 L/min, or line resonance — bleed air and confirm flow rating

Q7: Fluid & seal compatibility?

Standard NBR seals suit mineral oil (HL/HLP) and HFC (water-glycol). For HEES/HETG biodegradable oils or HFD phosphate ester, FKM (Viton) seals are required — order the "V" seal variant if needed.
