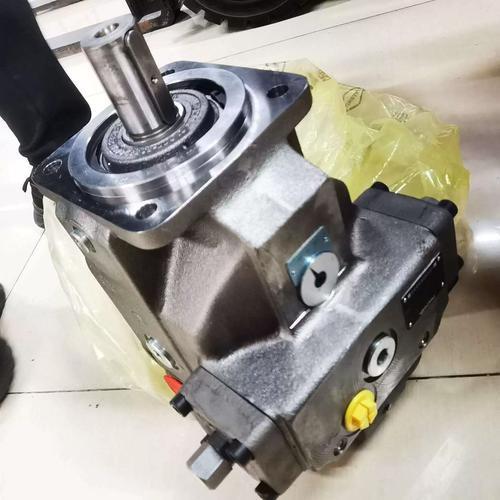

A4VSO355LR2G/30L-PPB13N00 Loader, oil field, mining, German Rexroth plunger pump
| Parameter | Specification |
|---|---|
| Model | A4VSO355LR2G/30L-PPB13N00 |
| Brand / Origin | Rexroth / Germany |
| Type | Swashplate-type axial piston variable pump (Open circuit) |
| Displacement (Vg max) | 355 cm³/rev |
| Control Type | LR2G – Constant power (horsepower) control with hyperbolic characteristic + remote pressure limiting (via external pilot relief valve on XD port). Power characteristic adjustable mechanically; pressure cut-in point remotely settable. |
| Nominal Pressure | 350 bar (35 MPa) Continuous |
| Peak / Maximum Pressure | 400 bar (40 MPa) Intermittent |
| Maximum Speed (nₘₐₓ) | 1500 rpm @ Vg max (Size 355) |
| Recommended Speed | 1000 - 1500 rpm |
| Theoretical Flow @ 1500 rpm | ≈ 533 L/min (Q = n × Vg / 1000) |
| Rotation Direction | L – Counter‑clockwise (viewed from shaft end) |
| Mounting Flange | ISO 3019‑2 / Series 30, 4‑bolt (Code PP) |
| Through‑drive | Yes – PPB indicates through‑drive capable (N00 = no auxiliary pump fitted) |
| Port Configuration | PPB13 – SAE flange side ports, pressure & tank ports 90° apart |
| Seal Material | FKM (Fluoroelastomer / Viton, standard for mineral oil HLP) |
| Case Drain | Two case drain ports – must be routed to tank < 2 bar backpressure |
| Recommended Oil Viscosity | 16 - 100 mm²/s (optimal ISO VG 46 at operating temp) |
| Oil Cleanliness Requirement | ISO 4406 18/16/13 (NAS 1638 Class 8-9) |
| Net Weight (Approx.) | ≈ 207 kg (dry, excl. coupling) |
| Package / Condition | Original factory wooden crate, new unused, German import |
| Salable / Supply Region | Global – Available via Rexroth authorized industrial hydraulics distributors |
- Mining: Mine-site centralized hydraulic power stations (HPU), crusher wedge adjusters, roof support test benches, conveyor tensioning systems
- Oil Field: Skid-mounted well-service HPUs, BOP test rigs, drawworks brake/clutch hydraulic packs
- Heavy Industry / Metallurgy: Steel rolling mill auxiliaries, billet pushers, forging press clamp circuits
- Plastics / Die-Casting: Large injection molding & die-casting machines (power-limited pump to protect drive motor)
- Marine / Offshore: Deck machinery open-circuit power packs
- Test Benches: Loader/excavator factory test stands (NOT the travel main pump of mobile loaders – those use A4VG/A11VO)
- A4VSO – Axial piston variable pump, open circuit
- 355 – Displacement 355 cm³/rev
- LR2G – Constant power (hyperbolic) control with remote pressure limiting (pressure cut-off setpoint adjusted via external pilot relief valve on XD port; power characteristic start point adjustable mechanically)
- 30 – Design Series 30
- L – Counter‑clockwise rotation (viewed from shaft end)
- PPB13N00
- PP – Through‑drive capable, ISO 4‑bolt flange
- B13 – SAE flange side ports (P & T 90° apart)
- N00 – No auxiliary pump / no special option on through‑drive
LR2: Basic constant power (horsepower) control – follows a hyperbolic P×Q = const curve to protect the drive motor from overload. Power limiting start point is set mechanically.
LR2G: Same hyperbolic constant power characteristic + remote pressure limiting (pressure cut-off) via an external pilot relief valve connected to the XD port. The pressure at which the pump cuts displacement back (pressure override) is determined by the external pilot valve setting + internal differential (~20 bar). This allows remote adjustment of the max system pressure without opening the pump.
Connect a pilot relief valve (DB …-5X/… type recommended) between the LR2G's XD port and tank. The pilot valve's cracking pressure determines the pressure limiting setpoint. The XD port must never be blocked. When system pressure reaches (pilot valve setting + ~20 bar internal differential), the LR2G forces the pump to stroke down.
Yes. The PPB code indicates through‑drive capability. An A4VSO (same or smaller) or compatible gear pump can be flange-mounted on the rear. N00 = no auxiliary gear pump pre-fitted, through-drive shaft is present.
- Case Drain: Plumb directly to tank, backpressure ≤ 1.5-2 bar. Never tee into main return.
- Suction Line: Keep short & large-diameter; absolute inlet pressure ≥ 0.8 bar. Use 100 µm suction strainer.
- XD Pilot Line (LR2G): Ensure pilot relief valve is properly sized and connected; confirm pilot supply pressure is adequate.
- Rotation Check: "L" = counter‑clockwise from shaft end – verify prime mover direction before coupling.
- Bleed: Fill case and suction with oil, vent before first start-up.
Yes, strongly recommended. LR2G provides power limiting and remote pressure cut-off under normal conditions but has response time. A system safety relief valve (e.g. DB type, set slightly above max LR2G setpoint + margin) protects against spikes from thermal expansion or pilot valve failure.
Maintain ISO 4406 18/16/13 (NAS 1638 Class 8 -9) minimum using a return-line filter β₁₀ ≥ 200 (10 µm nominal). Contamination is the primary cause of A4VSO premature wear.
No. A4VSO is an industrial open-circuit pump. Mobile wheel loaders and excavators typically use A4VG (closed circuit) or A11VO (open axial) as travel/main pumps. A4VSO with LR2G may be used in loader factory test benches, auxiliary stationary HPUs, or mine-site industrial hydraulic stations, not as a direct OEM travel pump replacement.
