Gripper Hex Head Screw Serrated Surfaces High Hardness Clamping Fixture Parts
Price:
7-8.5 USD per Item
MOQ:
5
Delivery Time:
7-10 days
Brand:
ADJIG
Product Description

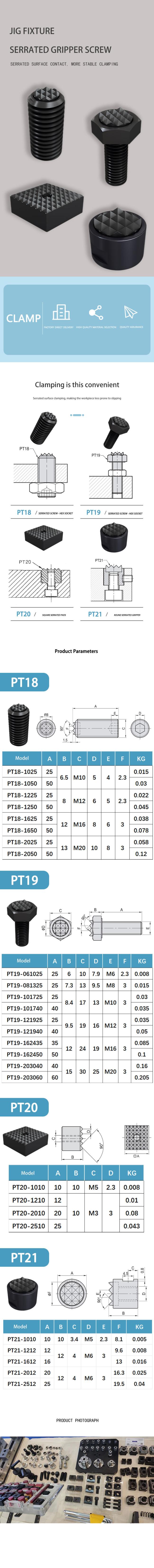

Gripper Hexagon Screw Serrated Surfaces High Hardness Clamping Support Fixture Workpiece
Material: SCM435
Heat treated: HRC 32°~38°
Serrated surface to be heat treated with high frequency quenching.
Surface finish︰Black Oxide.
| Model No | A | B | C | D | E | F | KG |
| PT19-061025 | 25 | 6 | 10 | 7.9 | M6 | 2.3 | 0.008 |
| PT19-081325 | 25 | 7.3 | 13 | 9.5 | M8 | 3 | 0.015 |
| PT19-101725 | 25 | 8.4 | 17 | 13 | M10 | 3 | 0.03 |
| PT19-101740 | 40 | 0.035 | |||||
| PT19-121925 | 25 | 9.5 | 19 | 16 | M12 | 3 | 0.035 |
| PT19-121940 | 40 | 0.05 | |||||
| PT19-162435 | 35 | 12 | 24 | 19 | M16 | 3 | 0.085 |
| PT19-162450 | 50 | 0.1 | |||||
| PT19-203040 | 40 | 15 | 30 | 25 | M20 | 3 | 0.16 |
| PT19-203060 | 60 | 0.205 |
