T Slot Fixture Base Plate Plate Bed Subplate For Clamping Fixturing Workholding
Price:
560-1410 USD per item
MOQ:
5
Delivery Time:
7-10 days
Brand:
ADJIG
Product Description

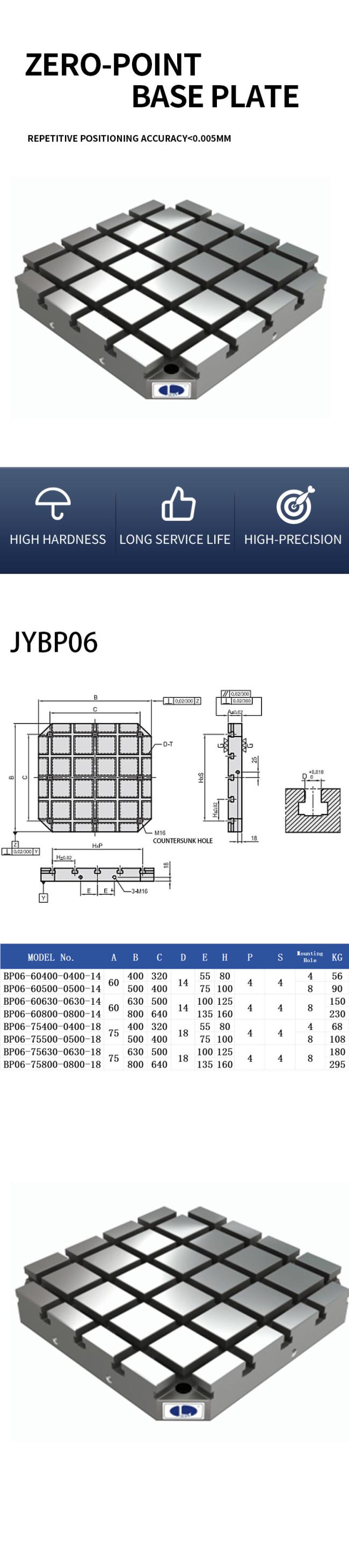

T-Slot Base Plate Bed Subplate for Precision Clamping Fixturing and Workholding
MC Base Plate
Material: FC30
Heat Treatment: Burnished
Application: Suitable for MC series
Features: Utilizes T-slot positioning with standardized fixture components for rapid assembly of a complete, customized fixture set.
| Model No. | A | B | C | D | E | H | P | S | Mountingholes | KG |
| BP06-60400-0400-14 | 60 | 400 | 320 | 14 | 55 | 80 | 4 | 4 | 4 | 56 |
| BP06-60500-0500-14 | 500 | 400 | 75 | 100 | 8 | 90 | ||||
| BP06-60630-0630-14 | 60 | 630 | 500 | 14 | 100 | 125 | 4 | 4 | 8 | 150 |
| BP06-60800-0800-14 | 800 | 640 | 135 | 160 | 230 | |||||
| BP06-75400-0400-18 | 75 | 400 | 320 | 18 | 55 | 80 | 4 | 4 | 4 | 68 |
| BP06-75500-0500-18 | 500 | 400 | 75 | 100 | 8 | 108 | ||||
| BP06-75630-0630-18 | 75 | 630 | 500 | 18 | 100 | 125 | 4 | 4 | 8 | 180 |
| BP06-75800-0800-18 | 800 | 640 | 135 | 160 | 295 |
