Industrial X Ray Machine Featuring Gas Insulated Anode Grounding and Fully Automatic X Ray Transmission Inspection
Industrial X Ray Machine Featuring Gas Insulated Anode Grounding and Fully Automatic X Ray Transmission Inspection
◆ Chopper control for adaptive starting rate and harsh voltage range on site;
Unique voltage working soft start and slow shutdown function is beneficial for protecting the X-ray generator;
The first fully automatic training mode, with discharge self voltage reduction protection and automatic time tracking;
◆ The side of the casing is equipped with a working status indicator light for easy remote observation;
Equipped with safety door signal interlocking terminals, which can be connected to the lead room door control to ensure personnel safety;
◆ The delayed exposure time can be freely adjusted;
◆ It can accumulate exposure time and facilitate favorable recording for the equipment;
As long as the voltage and exposure time of the X-ray tube are set in advance, the operator only needs to press the button, and the X-ray machine can repeatedly take photos.
This device does not require a 1:1 rest and can continuously work for exposure. Even with larger filming tasks, this device can improve work efficiency.

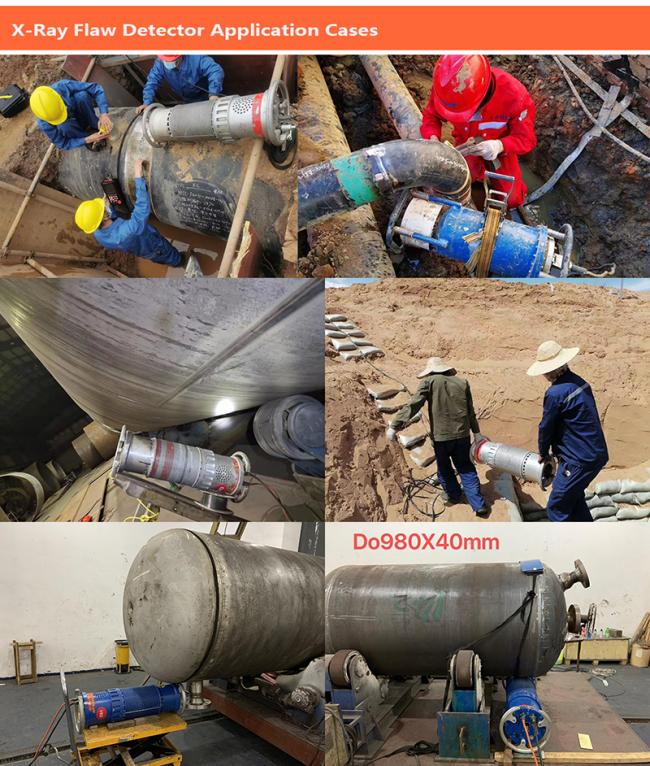

This series of X-ray machines is an SF6 gas insulated portable X-ray flaw detector, consisting of the following parts:
(1) X-ray generator
(2) Intelligent controller
(3) Power cable (AC220V, 15A, 3P)
(4) Connecting cable (12P)
(5) Attachment
Specifications
| Project | RD-300LGD | |
| input | Input power |
Single-phase 50Hz AC220V - 250V
|
| Power supply capacity |
≥ 2.8 KVA
|
|
| output | X - ray tube voltage | 150-300 KVp |
| X ray tube current | 5mA | |
| mA Stability degree | ± 1% | |
| Ray tube | Focal size |
2.6× 2.6
|
| X-ray irradiation range |
45°±5°
|
|
| Ray generator |
working pressure Cooling mode Insulation way |
0.45MPa ~ 0.5Mpa Anode ground connection radiator Strong wind cold Gas insulation SF6 |
|
Size weight (kg) |
Φ350×885
|
|
| 46 | ||
| Maximum penetration | Thickness steel A3(mm) | 80 mm Fe(5 min) |
| condition | focal distance 600mm ,Agfa film,Double lead foil,Liquid temperature 22,Film density ≥1.5 | |
| sensitivity | superior 2% | |
| controller |
Size weight Circuit |
325×270×180 < 9(kg) Automatic control and protection |
| Environment |
working temperature relative humidity Altitude |
-30°~ +40° Not more than 85% Not higher 1500m |
| methods | Maximum one-time startup time ≤ 90 minutes | |
| Insulation level | E | |
| protection grade | IP51 | |
| Executive standards |
GB/T26838-2011
|
|
