Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation
Price:
200~800 USD
MOQ:
1
Delivery Time:
1~3 weeks
Brand:
SPR-ing
Product Description
Industrial Slip Ring for Power Signal Data Transmission 360 Degree Rotation
Our high-precision slip ring features gold-gold contacts for superior conductivity and excellent thermal performance. The integrated pouring and mirror-processing technology ensures contact surface roughness of Ra0.02 and concentricity ≤0.01mm. With durable stainless steel housing, compact structure, and brush design close to zero pressure, it guarantees longer service life, reliable signal and power transmission under extreme environments.
Technical Specifications
Electrical Specifications
| Design loop | 36, 56 |
| Insulation resistance | 500MΩ/500V/DC |
| Rated voltage/current | 0-240VDC / Max 2A |
| Dielectric strength | 250VAC/50Hz/60s |
| Dynamic resistance change value | ≤10mΩ |
Mechanical Specifications
| Rated speed | 0-250 rpm |
| Working life | 10 million rpm |
| Operating temperature | -40℃ ~ 85℃ |
| Contact material | Gold-gold |
| Shell material | 303 stainless steel |
Boundary Dimensions with Flange
| Number of rings | Size A | Size B |
|---|---|---|
| 36 rings | 66mm | 52.40mm |
| 56 rings | 89mm | 75.30mm |
36-Ring Combination Modes
- 36-way 2A
- 4-way 5A, 28-way 2A
- 4-way 10A, 20-way 2A
56-Ring Combination Modes
- 56-way 2A
- 4-way 5A, 48-way 2A

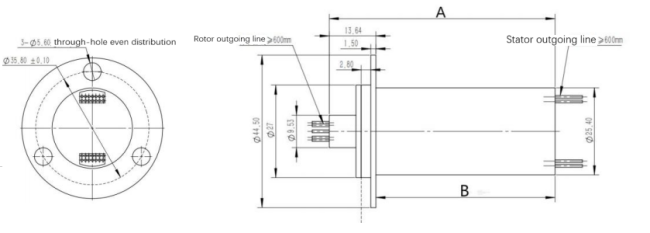

Outline Drawing
Technical Advantages
- Gold-gold contact: High conductivity, excellent thermal performance, small temperature coefficient of resistance (resistant to vulcanization, oxidation, corrosive gases), optimal hardness, superior wear resistance (excellent fusion welding resistance, arc corrosion and burn resistance)
- Integrated pouring process: Ensures ring groove and bearing concentricity ≤ 0.01 mm
- Mirror processing technology: Achieves contact surface finish of Ra0.02 for more reliable contact
- Precision component manufacturing: Dimensional tolerances < 0.01mm for high precision and stable contact
- Extended service life: Brush design and debugging process close to zero pressure increases lifespan by 1/3
- Compact design: Small size and compact structure to meet space constraints
- Robust construction: Integral stainless steel metal structure suitable for extremely harsh environments
Support and Services
- Expert troubleshooting assistance
- Installation guidance and support
- Maintenance recommendations
- Warranty services for eligible products
Packing and Shipping
Each slip ring is securely packaged in a sturdy cardboard box with protective padding. Shipments are tracked via reliable courier services to ensure safe and timely delivery.
Frequently Asked Questions
What is the brand name of this high-speed slip ring?
The brand name is SPR-ing.
What is the model number?
Model SP040028-G05.
Where is it manufactured?
Shenzhen, China.
What is the minimum order quantity?
1 piece.
What payment methods are accepted?
L/C and T/T.
