Medical CT Scanner Slip Ring High Precision Low Noise Conductive Ring for Medical Equipment

Designed for continuous rotation, the SP035018-A high-speed slip ring ensures stable performance at speeds up to 5000 RPM. Its 18-circuit configuration supports efficient power and signal transmission.

The terminal-type interface eliminates external leads, improving installation efficiency and system reliability. Gold-gold contact technology minimizes electrical noise and wear.

This slip ring is suitable for rotating machinery, automation systems, and testing equipment.

Technical parameters

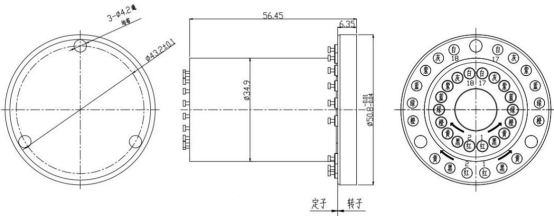

Outline Drawing

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü Small in size and compact in structure, it can meet the space constraints of users.

ü Stainless steel structure: sturdy and durable, with strong sealing, suitable for extremely harsh environments.

ü Color code recognition interface: easy to install
