Miniature Brushless Slip Ring 20Channels 3ALow Noise for CCTV PTZ Surveillance Camera

Price Negotiable

Price: 200-800USD

MOQ: 1

Delivery Time: 1 week

Brand: SPR-ing

Product Description

Miniature Brushless Slip Ring - 20 Channels, 1A Low Noise

Designed specifically for CCTV PTZ surveillance cameras, the SP036020 represents our core high-speed long-life slip ring technology. This product has been rigorously validated through extensive user testing and delivers consistent, reliable performance throughout its rated lifespan. Trusted across multiple industries including aerospace, rail transit, automotive testing, and industrial R&D applications.

Technical Specifications

Electrical Specifications

Design Loop	20
Insulation Resistance	200MΩ/250V/DC
Rated Voltage/Current	250VDC/3A
Dielectric Strength	≥250VAC/50Hz/60s
Dynamic Resistance Change Value	≤10mΩ
Wire Length	Standard 300 ± 20mm (optional)

Mechanical Specifications

Rated Speed	0~3000 rpm
Working Life	10 million~100 million rotations
Operating Temperature	-45℃ ~ 60℃
Contact Material	Gold-gold
Shell Material	Aluminum alloy/304 stainless steel/316L stainless steel
Maximum Starting Torque	3.5N.cm
IP Grade	IP51

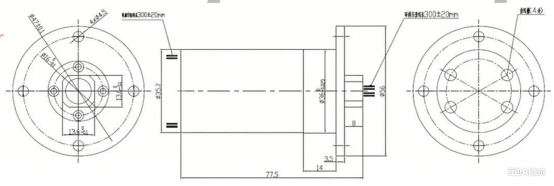

Outline Drawing

Technical Advantages

Core Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
Integrated Casting Process: Maintains concentricity between ring groove and bearing ≤ 0.01mm
Mirror Processing Technology: Contact surface smoothness reaches Ra0.02 for enhanced reliability
Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
High-Speed Capability: Maximum speed of 8000 rpm with cooling system
Extended Lifespan: Maximum operational life of up to 100 million rotations
