SP013018 long life high speed slip ring

The miniature high-speed long-life slip ring has a speed of 10000 revolutions per minute and a lifespan of 10 million revolutions per minute, with stable performance!

As one of our key technologies, the high-speed slip ring has been successfully applied to a certain unit model in large quantities. After sufficient user verification, our company's high-speed slip ring has stable performance and long service life.

Application areas: Used for high-speed testing platform strain gauge signals, thermocouple signals, etc., such as aircraft engine testing, high-speed rail component testing, automotive wheel hub performance testing!

Technical parameters

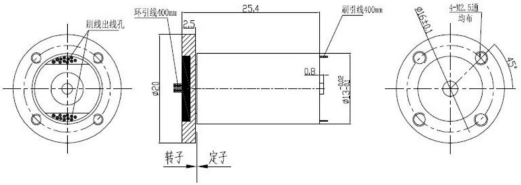

Outline Drawing

Technical advantages:

ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.

ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.

ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.

ü Precision component manufacturing process: dimensional tolerance<0.01mm, axial displacement<0.01mm, high precision, and more stable performance.

ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.

ü High speed, this slip ring can reach a maximum speed of 8000 revolutions per minute (with cooling system).

ü Long lifespan, with a maximum lifespan of up to 100 million revolutions per minute.
