Single Mode Optical Fiber Cable 12 Core- 96 Core 15mm Span 100 120 G652D
| Type | ADSS-288B1.3 |
| Application | Telecom Communication |
| Strength Member | Kevlar |
| Jacket Color | Black |
| Packing | Wooden Drum |
| Number of Conductors | 288 cores |
| Fiber Type | G652D |
| Outer Sheath | PE/AT, AT/PE, PE |
| Span | 50 100 150 |
ADSS (All-Dielectric Self-Supporting) cable is a specialized fiber optic cable that uses all-dielectric materials with non-metallic, non-conducting properties. The insulating material resists the passage of electric current through the cable.

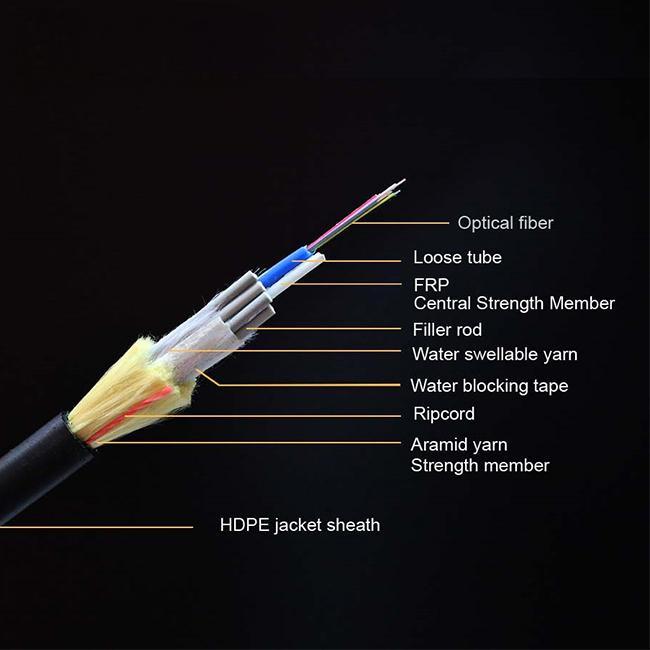

Our Aramid Yarn G652D ADSS Communication Fiber Optic Cable features a loose-jacketed stranded structure. Single-mode or multimode optical fibers are jacketed into high-modulus plastic loose tubes filled with water-repellent compound. These tubes are twisted around a central nonmetallic FRP reinforcement to form a compact circular cable core, with aramid fiber reinforcement and polyethylene or electric trace-resistant outer sheath.
- Single Sheath: FRP + Aramid yarn + Outer sheath
- Double Sheath: FRP + Inner sheath + Aramid yarn + Outer sheath
| Item | Contents | Value | ||||
|---|---|---|---|---|---|---|
| 24 | 48 | 72 | 96 | 144 | ||
| Fiber Count | 24 | 48 | 72 | 96 | 144 | |
| Loose Tube | No. of tubes*fiber per tube | 4*6 | 4*12 | 6*12 | 8*12 | 12*12 |
| Outer Diameter (mm) | 2.1 | 2.5 | |||||
| Item | Specification | |||
|---|---|---|---|---|
| G.652 | G.655 | 50/125um | 62.5/125um | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | |
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | ||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | ||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | ||
| Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | |
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | ||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | ||
We are the manufacturer located in Guangzhou, China, operating since 2011. Our factory employs 11-50 professionals dedicated to producing high-quality fiber optic cables.
We implement strict quality control measures including pre-production samples and final inspection before shipment.
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can arrange transportation for you.
We accept all OEM orders. Contact us with your design requirements and we will provide competitive pricing and samples.
Delivery Terms: FOB, CIF, EXW
Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF
Payment Type: T/T, L/C, D/P D/A, PayPal, Western Union, Escrow
Languages: English, Chinese
