FTTX FTTR FTTH G657A2 Air Blowing Outdoor Optical Fiber Cable Air Blown Micro Cable
Price:
negociate
MOQ:
1km
Delivery Time:
7days
Brand:
PUNAISGD
Product Description
FTTX FTTR FTTH G657A2 Air Blowing Outdoor Optical Fiber Cable Air Blown Micro Cable
Product Description

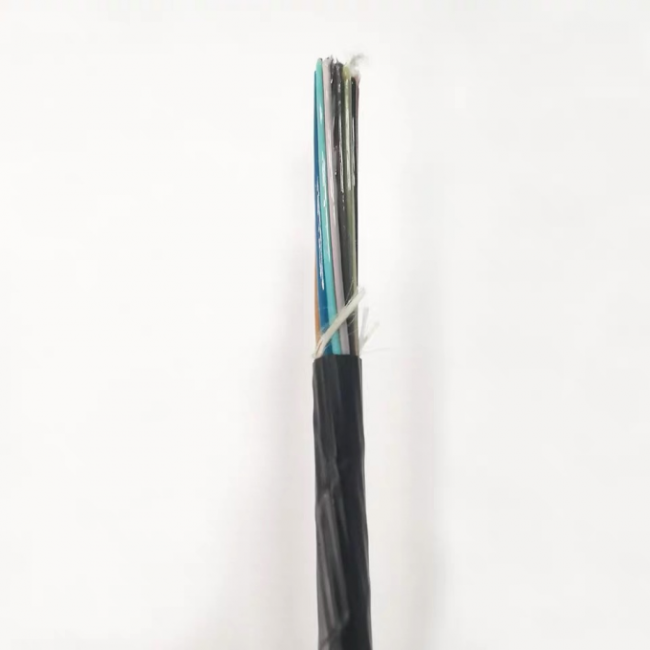

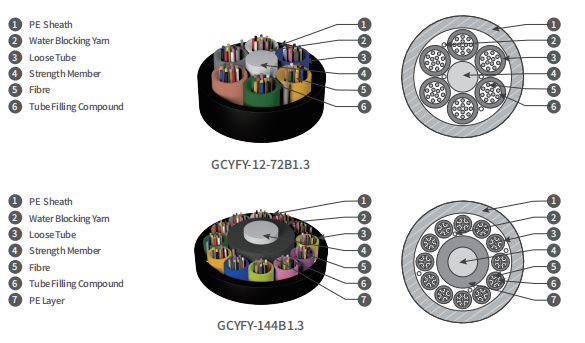

The Air-blow minicable is a compact central loose tube or stranded loose tube optical fiber cable featuring non-metallic strength members and no armor. Designed for installation in mini ducts using air-blowing technology.
Technical Specifications
| Type | O.D. (mm) | Weight (Kg/km) | Tensile strength Long/short term (N) | Crush Long/short term (N/100mm) | Number of tubes/fibre count per tube |
|---|---|---|---|---|---|
| GCYFY-12B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 2/6 |
| GCYFY-24B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 4/6 |
| GCYFY-36B1.3 | 4.5 | 16 | 0.3G/1.0G | 150/500 | 6/6 |
| GCYFY-24B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 2/12 |
| GCYFY-48B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 4/12 |
| GCYFY-72B1.3 | 5.4 | 26 | 0.3G/1.0G | 150/500 | 6/12 |
| GCYFY-96B1.3 | 6.1 | 33 | 0.3G/1.0G | 150/500 | 8/12 |
| GCYFY-144B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 12/12 |
| GCYFY-192B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 16/12 |
| GCYFY-216B1.3 | 7.9 | 52 | 0.3G/1.0G | 150/500 | 18/12 |
| GCYFY-288B1.3 | 9.3 | 80 | 0.3G/1.0G | 150/500 | 24/12 |
| GCYFY-144B1.3 | 7.3 | 42 | 0.3G/1.0G | 150/500 | 6/24 |
| GCYFY-192B1.3 | 8.8 | 76 | 0.3G/1.0G | 150/500 | 8/24 |
| GCYFY-288B1.3 | 11.4 | 110 | 0.3G/1.0G | 150/500 | 12/24 |
| GCYFY-432B1.3 | 11.4 | 105 | 0.3G/1.0G | 150/500 | 18/24 |
| GCYFY-576B1.3 | 13.4 | 140 | 0.3G/1.0G | 150/500 | 24/24 |
Note: G is the weight of optical cable per km.
