Fibra Optica ADSS Aerial Fiber Optical Cable Double Sheath 100m 120m 200m Span 8 12 24 48 72 96 Core Fibre Optic Cable Supplier
Characteristics
2.Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backdrops.
3.Aramid yarn as strength making cable have excellent tensile strength performance.4.Large span lengths and the largest span is over 1000m.

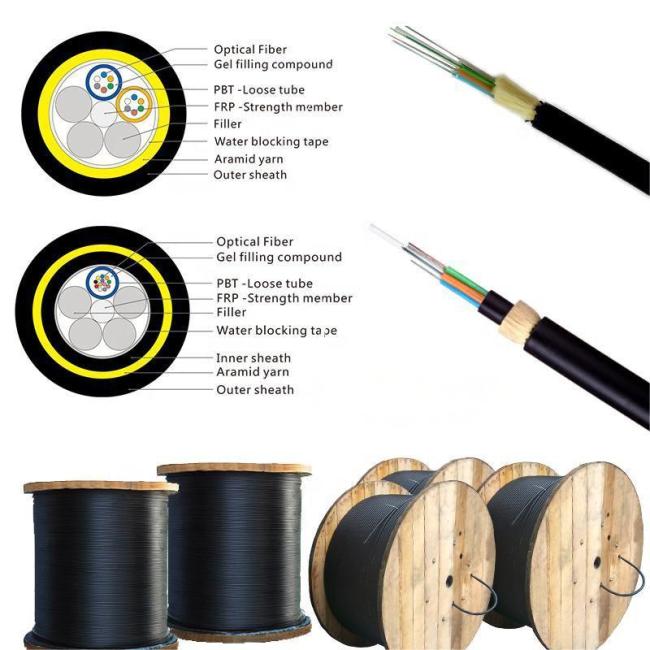

Aramid Yarn G652D ADSS Communication Fiber Optic Cable features a loose-jacketed stranded structure. Single-mode or multimode optical fiber is jacketed into a high-modulus plastic loose tube filled with water-repellent compound. The tube (with filling rope) is twisted around a central nonmetallic FRP reinforcement to form a compact circular cable core. The core is filled with water-blocking material, reinforced with aramid fiber, and finished with a polyethylene or electric trace-resistant outer sheath.
- Single sheath: FRP + Aramid yarn + Outer sheath
- Double sheath: FRP + Inner sheath + Aramid yarn + Outer sheath
| Item | Contents | Value |
|---|---|---|
| Fiber Count | 24 | 48 |
| 72 | 96 | |
| Loose Tube | No. of tubes*fiber per tube | 4*6 |
| 4*12 | 6*12 | |
| Outer Diameter(mm) | 2.1 | 2.5 |
| Attenuation | @850nm | ≤3.0dB/km |
| @1300nm | ≤1.0dB/km | |
| @1310nm | ≤0.36dB/km | |
| @1550nm | ≤0.22dB/km | |
| Bandwidth @850nm | ≥500MHZ.km | |
| Numerical aperture | 0.200±0.015NA |
We are a manufacturer based in Guangzhou, China, operating since 2011. Our products are sold to domestic markets with a workforce of 11-50 employees dedicated to quality production.
We conduct pre-production sampling before mass production and perform final inspections before shipment to ensure consistent quality standards.
Yes, we can ship worldwide. If you don't have your own shipping forwarder, we can assist with logistics arrangements.
We accept all OEM orders. Contact us with your design requirements and we will provide competitive pricing and produce samples for approval.
We offer various delivery terms (FOB, CIF, EXW), accept multiple currencies (USD, EUR, JPY, etc.), and provide flexible payment options (T/T, L/C, PayPal, etc.). Our team communicates in English and Chinese.
