Bundle Tube Type All Dielectric ASU Self-Supporting Optical Cable
Price:
negociate
MOQ:
1km
Delivery Time:
7days
Brand:
PUNAISGD
Product Description
Bundle Tube Type All Dielectric ASU Self-Supporting Optical Cable

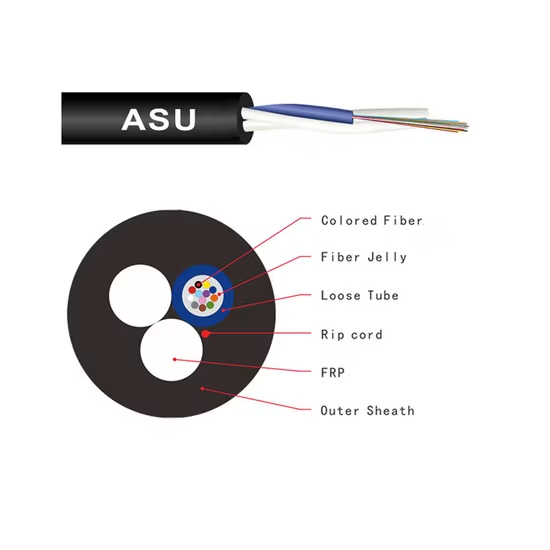

The structure of the optical cable is designed to connect 250 μm optical fibers. The fibers are inserted into a loose tube made of high modulus material, which is then filled with waterproof compound. The loose tube and FRP are twisted together using SZ. Water blocking yarn is added to the cable core to prevent water seepage, and then a polyethylene (PE) sheath is extruded to form the cable. A stripping rope can be used to tear open the optical cable sheath.
Product Attributes
| Attribute | Value |
|---|---|
| Type | ASU-6B1.3 |
| Application | Telecom Comunication |
| Strength member | frp *2pcs |
| Jacket color | Black Color/Others |
| Number of conductors | 4-12 |
| Span | 80 120 |
| Warranty Period | 25 years |
| Hs Code | 854470000 |
| Sample | yes |
| Istallation | Aerial |
| Strengthening Structure | FRP Strength Member |
| Central Strength Member | FRP |
| Custom | Customized available |
| Name | ADSS Fiber Optic Cable |
Product Description
ADSS Fiber Optic Cable Mini ADSS ASU Cable Fiber Optic ASU 80 ASU 120 6fo G652D 6 8 Hilos 12 24 48 Core Outdoor Fiber Optical Drop Cable
Product Specifications
| ITEMS | UNITS | SPECIFICATION |
|---|---|---|
| Fiber Type | G652D | |
| Attenuation | dB/km | Before Cable | After Cable 1310nm ≦ 0.34 1550nm ≦ 0.21 | 1310nm ≦ 0.35 1550nm ≦ 0.22 |
| Chromatic Dispersion | ps/nm.km | 1310nm ≦ 3.5 1550nm ≦ 18 1625nm ≦ 22 |
| Attenuation Uniformity | dB/km | 0.1 |
| Point Discontinuities | dB | ≤ 0.05 |
| Zero Dispersion Slope | ps/n㎡.km | 0.093 |
| Zero Dispersion Wavelength | nm | 1300~1324 |
| PMDQ Link Design 1550 | ps/km1/2 | ≤ 0.1 |
| Cut-off Wavelength(λcc) | nm | ≤ 1260 |
| Attenuation vs. Bending(60mm*100turns) | dB | ≤ 0.1 at 1625 nm (60mm * 100turns) |
| Mold Field Diameter | μm | 9.2±0.4 @ 1310nm 10.4±0.5@ 1550nm |
| Core-Clad Concerntricity | μm | ≤ 0.6 |
| Cladding Diameter | μm | 125 ± 1 |
| Cladding Non-circularity | % | ≤ 1 |
| Coating Diameter | μm | 245 ± 5 |
| Proof Test | Gpa | ≥ 0.69 |
Optical Characteristics
| Cable Type | Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength long/short term (N) | Crush Resistance long/short term (N) | Bending Radius Static/Dynamic (mm) |
|---|---|---|---|---|---|---|
| ASU | 2-12 | 7.0 | 60 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW | 14-24 | 8.0 | 72 | 600/1500 | 300/1000 | 10D/20D |
