GYFTY-8 Fiber Optic Cable
Price:
negociate
MOQ:
1km
Delivery Time:
7days
Brand:
PUNAISGD
Product Description

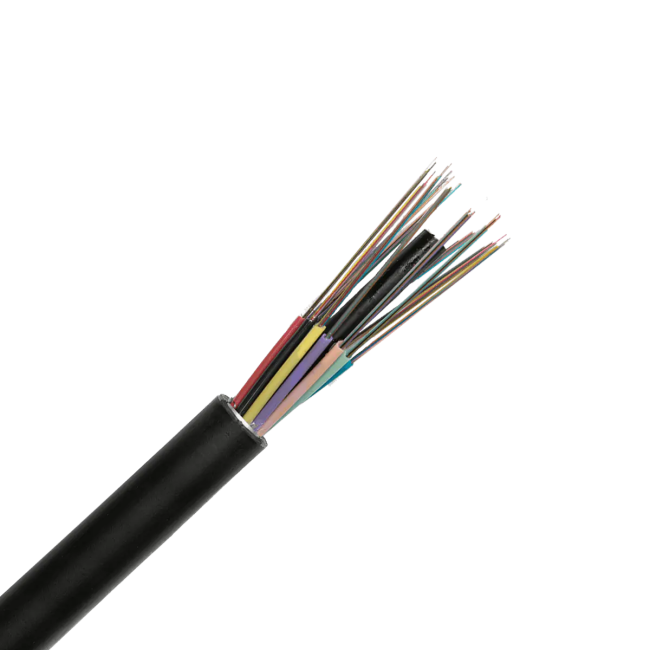

GYFTY-8 Fiber Optic Cable
Product Specifications
| Attribute | Value |
|---|---|
| Type | GYFTY-32F |
| Jacket Material | PE/LSZH |
| Out Jacket Color | Black |
| Strength Member Material | FRP |
| Service | OEM&ODM |
| Standard Length | 2,000m/4000m |
| Number Of Fiber | 32 |
| Oem Factory | Yes |
| Operating Temperature | -40°C to +70°C |
| Name | Outdoor Fiber Optic Cable |
The GYFTY-8 fiber optic cable is a robust, high-quality outdoor cable designed to deliver reliable and high-speed data transmission in harsh environments. Featuring 8 core single-mode or multimode fibers, this cable is built for durability, flexibility, and long-term performance in telecommunications, FTTH (Fiber to the Home), and industrial networks.
Constructed with loose tube technology, the GYFTY-8 provides excellent protection against moisture, temperature fluctuations, and mechanical stress. Its corrosion-resistant steel wire reinforcement and PE (polyethylene) outer sheath ensure superior resistance to UV radiation, water ingress, and rodent damage, making it ideal for direct burial, aerial, and duct installations.
Key features include:
- Low attenuation & high bandwidth for stable, high-speed data transfer
- Strong tensile strength for long-distance deployments
- Lightweight & flexible design for easy installation
- Compliance with international standards (IEC, ITU-T)
Whether for urban networks, rural broadband expansion, or industrial applications, the GYFTY-8 fiber optic cable offers a future-proof solution for seamless connectivity. Trust in its durability, performance, and versatility for your next infrastructure project.
Upgrade your network with GYFTY-8 – where reliability meets innovation.
- Low dispersion and attenuation
- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
- With good antielectromagnetism ability
- Filler protect loose tuber fiber
Application
- Adopted to Outdoor distribution
- Adopted to trunk power transmission system
- Access network and local network in high electromagnetic interfering places
Optical Characteristics
| Parameter | Specification | |
|---|---|---|
| G652 | 50/125μm | 62.5/125μm | |
| Attenuation (+20℃) @850 nm | <=3.0dB/km | <=3.3dB/km | |
| Attenuation (+20℃) @1300 nm | <=1.0dB/km | <=1.0dB/km | |
| Attenuation (+20℃) @1310 nm | <=0.36dB/km | |
| Attenuation (+20℃) @1550 nm | <=0.22dB/km | |
| Bandwidth (Class A) @850 nm | >=500 MHz*km | >=200 MHz*km | |
| Bandwidth (Class A) @1300 nm | >=1000 MHz*km | >=600 MHz*km | |
| Numerical Aperture | 0.200+-0.015NA | 0.275+-0.015NA | |
| Cable cut-off wavelength | <=1260 nm | |
Structure and Technical Specifications
| Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Max No.of (Tubes+ fillers) | Allowable Tensile Load (N) | Allowable Crush Resistance(N/100mm) |
|---|---|---|---|---|---|---|
| 2~36 | 10.2 | 85 | 6 | 6 | 1500 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| 38~72 | 11.1 | 100 | 12 | 6 | 1500 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| 74~96 | 12.6 | 130 | 12 | 8 | 1500 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| 98~120 | 14.1 | 162 | 12 | 10 | 1500 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| 122~144 | 15.9 | 204 | 12 | 12 | 1800 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| 146~216 | 15.9 | 205 | 12 | 18(2 layers) | 2200 (Short Term) 600 (Long Term) |
1000 (Short Term) 300 (Long Term) |
| >144 | Available upon customer request | |||||
Installation
Frequently Asked Questions
How is fiber-optic internet installed in my home?
- The technician locates the optical network terminal.
- The technician connects the fiber terminal to the network box.
- The technician plugs your network box into power.
- The technician connects your device to the network box.
