Food Grade Sanitary Pneumatic Ball Valve Stainless Steel Clamp Double Acting
Descriptions Of Pneumatic Sanitary Ball Valve:
The pneumatic sanitary ball valve is specially designed for industries with high hygiene requirements such as food, pharmaceuticals, and bioengineering. It is made of stainless steel and features a surface polishing treatment (Ra ≤ 0.8 μm), meeting the CIP/SIP (cleaning in place/sterilization in place) process requirements. It ensures zero contamination and zero dead corners during fluid transportation.It is driven by pneumatic actuators (single/ double acting) to achieve quickly open and close (≤ 1 second),and reliable automated control.
Features Of SONGO Food Grade Pneumatic Actuator Ball Valve:
1). The valve body is mirror-polished, with crevice-free construction to prevent bacterial residue. Additionally, it has a full port design, ensuring unobstructed flow and suitable for high-viscosity media (such as juices and pharmaceutical liquids).
2). Multiple sanitary-grade connections are available for selection: Tri-Clamp (DIN 32676), threaded (SMS), welding. Installation and disassembly are convenient.
3). Supports air source pressure ranging from 2 to 8 bar. After installing the positioner, it can be linked with the PLC system to achieve pneumatic automation control.
4). Leak-proof Seal:EPDM/FKM/PTFE gaskets for different media.
Part Material Of Pneumatic Actuated 2 Way Sanitary Ball Valve:
| Connect Type | Clamp |
| Working Pressure | PN16 |
| Brand | SONGO |
| Size | Φ19-Φ159 |
| Temperature | -15~120°C/-15~250°C |
| Medium | Food, medicine, alcohol, milk, beverage |
| Body | SUS304/SUS316L |
| Ball | SUS304/SUS316L |
| Stem | SUS304/SUS316L |
| Seat | PTFE, PPL |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |

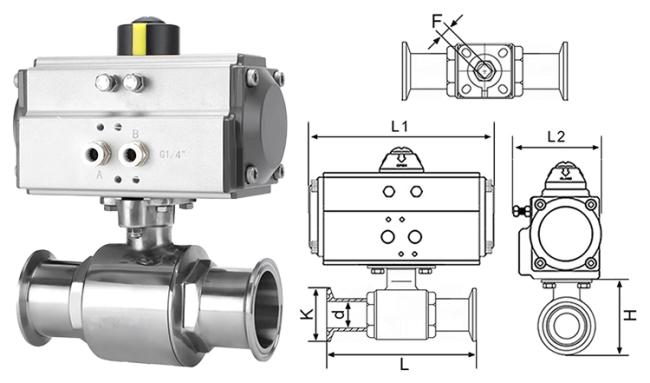

Structure Dimension Drawing Of Pneumatic Operated SS304 Tri Clamp Ball Valve:
| Nominal diameter | K | d | L | H | F | L1 | L2 | Weight (Kg) | Pneumatic Actuator No. | |
| 3/4" | Φ19 | 50.5 | 16 | 100 | 44 | 9 x 9 | 150 | 72.5 | 2.01 | AT-52 |
| 1" | Φ25 | 50.5 | 22 | 105 | 44 | 9 x 9 | 150 | 72.5 | 2.06 | AT-52 |
| 1-1/4" | Φ32 | 50.5 | 29 | 120 | 50 | 9 x 9 | 150 | 72.5 | 2.21 | AT-52 |
| 1-1/2" | Φ38 | 50.5 | 35 | 136 | 57 | 9 x 9 | 171 | 83 | 3.2 | AT-63 |
| 1-3/4" | Φ45 | 64 | 42 | 145 | 60 | 9 x 9 | 171 | 83 | 3.9 | AT-63 |
| 2" | Φ51 | 64 | 48 | 160 | 65 | 9 x 9 | 171 | 83 | 3.92 | AT-63 |
| 2-1/4" | Φ57 | 77.5 | 53 | 162 | 73 | 11 x 11 | 186 | 95.5 | 4.83 | AT-75 |
| 2-1/2" | Φ63 | 77.5 | 58 | 170 | 80 | 11 x 11 | 186 | 95.5 | 5.3 | AT-75 |
| 3" | Φ76 | 91 | 72 | 195 | 90 | 14 x 14 | 206 | 103.5 | 7.2 | AT-83 |
| 3-1/2" | Φ89 | 106 | 85 | 235 | 110 | 14 x 14 | 265 | 108 | 10.6 | AT-92 |
| 4" | Φ102 | 119 | 98 | 270 | 130 | 14 x 14 | 210 | 304 | 17.2 | AT-125 |
| 5" | Φ133 | 145 | 127 | 280 | 155 | 17 x 17 | 210 | 395 | 31 | AT-140 |
| 6" | Φ159 | 183 | 153 | 355 | 175 | 17 x 17 | 309 | 462 | 44.5 | AT-160 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
