Stainless Steel 304 Wafer Pneumatic Ball Valve PN16 PN25 Double Acting Air Actuator
Descriptions Of Italy Thin Type Pneumatic Ball Valve:
The Italy thin Wafer pneumatic ball valve is designed based on Italian technology and is a domestically produced product. It is an ultra-short flange distance ball valve specially developed for industrial applications with limited space.The overall length of this valve is over 30% shorter than that of traditional pneumatic ball valves, while still maintaining excellent flow control performance. It is an ideal choice for automated pipeline systems.
Design Features Of SONGO Thin Wafer Type Pneumatic Actuator Ball Valve:
01) Adopting the thin design concept, the overall structure is compact, saving 40% of installation space, and it is suitable for high-density pipeline layouts.
02) With the feature of Simple structure, small volume and light weight,Long service life, eco-friendly, easy installation, progress steadily, etc
03) Equipped with pneumatic actuators (single acting / double acting),Quickly open and close(≤1s).
04) Connection standard with flange:GB,DIN,ANSI,JIS wafer type Flange.
05) It widely used in the fields of petroleum, chemical industry, metallurgy, power station, light industry, etc
Part Material Of Pneumatic Actuated Italy Thin SS304 Ball Valve:
| Connect Type | Wafer type flange |
| Working Pressure | PN16, PN25 |
| Brand | SONGO |
| Size | DN15-DN150 |
| Temperature | -20℃+280℃ |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body | WCB, CF8, CF8M, stainless steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |

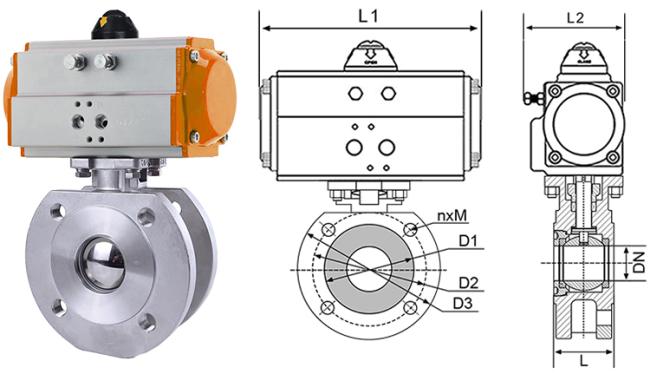

Structure Dimension Drawing Of Pneumatic Operated SS304 Wafer Ball Valve:
| DN | L | D1 | D2 | D3 | nxM | L1 | L2 | Pneumatic Actuator No. |
| 15 | 32 | 46 | 65 | 95 | 4xM12 | 186 | 95.5 | AT-75 |
| 20 | 38 | 55 | 75 | 105 | 4xM12 | 186 | 95.5 | AT-75 |
| 25 | 42 | 65 | 85 | 115 | 4xM12 | 206 | 103.5 | AT-83 |
| 32 | 50 | 78 | 100 | 135 | 4xM16 | 265 | 108 | AT-92 |
| 40 | 62 | 85 | 110 | 145 | 4xM16 | 272 | 121.5 | AT-105 |
| 50 | 72 | 100 | 125 | 160 | 4xM16 | 272 | 121.5 | AT-105 |
| 65 | 95 | 120 | 145 | 180 | 4xM16 | 272 | 121.5 | AT-105 |
| 80 | 118 | 135 | 160 | 195 | 8xM16 | 304 | 142 | AT-125 |
| 100 | 140 | 155 | 180 | 215 | 8xM16 | 395 | 151 | AT-140 |
| 125 | 195 | 185 | 210 | 245 | 8-M16 | 462 | 174 | AT-160 |
| 150 | 225 | 210 | 240 | 280 | 8xM20 | 552 | 206 | AT-190 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:
Flow Path Selection Of Pneumatic 3 Ways Ball Valve:
29 Years Valve Factory Founded In 1996:
Good Feedback From 12382 Clients:
No Worries After Buy Our Valves With Our Engineers:
