SONGO Cast Iron Flange Motorized Gate Valve On/off 380V Electric Actuator Multi-turn Non-rising Stem Resilient EPDM Water Gate Valve

Descriptions And Advantages Of Motorized Flange Cast Iron Resilient Seat Gate Valve:

The SONGO cast iron gate valves are shut-off valves with a gate plate as the opening and closing part. The movement direction of the gate plate is perpendicular to the fluid, featuring low flow resistance and allowing bidirectional flow of the medium. It has a relatively large structural height and a long opening and closing time, and is divided into two types: wedge type (including single gate plate, double gate plate and elastic gate plate) and parallel gate plate type (including single gate plate and double gate plate). According to the structure of the valve stem, they can be classified into exposed stem gate valves (where the valve stem thread is exposed for easy lubrication) and concealed stem gate valves (where the thread is built-in and the valve stem only rotates). The valve body materials include gray cast iron, carbon steel, stainless steel, etc. It adopts flange connection, and the nominal diameter covers DN40-DN1200. It is suitable for pipelines in water, steam, oil, petrochemical, pharmaceutical, power and other industries.
The sealing surface of this valve adopts a wedge-shaped design and relies on self-sealing or forced closure by external force, but maintenance is rather inconvenient. The double gate plate model needs to be installed vertically, while the concealed rod model is suitable for limited Spaces. The improved design has added automatic adjustment of the drive motor, threaded rod transmission structure and magnetic block sealing device, and optimized the arc structure of the gate plate to reduce fluid resistance. Some models have a working pressure of ≤1.0MPa and comply with standards such as ANSI and JIS-10K.

Advantages Of Cast Iron Gate Valve:
1. Low flow resistance. The medium passage inside the valve body is straight-through, and the medium flows in a straight line with low flow resistance.
2. It requires less force when opening and closing. Compared with the stop valve, it is because whether open or closed, the movement direction of the gate is always perpendicular to the flow direction of the medium.
3. Large height and long opening and closing time. The opening and closing stroke of the gate plate is relatively large, and the lowering is carried out through a screw.
4. Water hammer phenomenon is less likely to occur. The reason is that the closure time is long.
5. The medium can flow in any direction on both sides and is easy to install. The channels on both sides of the gate valve are symmetrical.
6. The structural length (the distance between the two connecting end faces of the shell) is relatively small.
7. The sealing surface is prone to wear, which affects the service life. When opening and closing, the two sealing surfaces of the gate and the valve seat rub and slide against each other. Under the action of medium pressure, they are prone to scratches and wear, which affects the sealing performance and shortens the service life.
8. The price is relatively high. There are many contact sealing surfaces, and the processing is rather complex. Especially the sealing surfaces on the gate plate seat are not easy to process, and there are many parts.
9. It has a simple shape, short structural length, good manufacturability and wide application range.
10. Compact structure, good valve rigidity, smooth channel, low flow resistance, the sealing surface is made of stainless steel and hard alloy, long service life, PTFE packing is used, reliable sealing, and easy and flexible operation.

No.	Part Name	Material
01	Body	Ductile cast iron
02	Seat	EPDM
03	Shaft	Stainless steel 420
04	Disc	Ductile cast iron
05	Wedge nut	Brass
06	Bonnet	Ductile cast iron
07	O-ring	EPDM
08	Thrust washer	Brass
09	Sealing ring	EPDM
10	Socket head screw	Carbon steel
11	O-ring	EPDM
12	Actuator	Aluminum alloy

Nominal Pressure PN	Nominal Diameter DN (mm)	L	D	D1	b	z-d	H	L1	L2	H1	Electric Actuator No.	Norminal Torque N.m	Electric Motor Power KW
BS5163 Standard 1.0/1.6 Mpa BS4504 RF Flange Z945X-10/16Q	40	165	150	110	17	4-18	285	350	325	248	SONGODZW-10	100	0.25
	50	178	165	125	18	4-18	300	350	325	248	SONGODZW-10	100	0.25
	65	190	185	145	18	4-18	345	350	325	248	SONGODZW-15	150	0.37
	80	203	200	160	18	4/8-18	390	422	362	295	SONGODZW-20	200	0.55
	100	229	220	180	19	8-18	430	422	362	295	SONGODZW-20	200	0.55
	125	254	250	210	19	8-18	510	422	362	295	SONGODZW-30	300	0.75
	150	267	285	240	19	8-22	565	422	362	295	SONGODZW-30	300	0.75
	200	292	340	295	22	8/12-22	680	422	362	295	SONGODZW-30	300	0.75
	250	330	395/405	350/355	22	12-23/26	820	520	362	300	SONGODZW-45	450	1.1
	300	356	445/460	400/410	26	12-23/26	930	520	362	300	SONGODZW-60	600	1.5
	350	381	505/520	460/470	30	16-23/26	1020	615	490	392	SONGODZW-90	900	2.2
	400	406	565/580	515/525	30	16-26/30	1100	615	490	392	SONGODZW-120	1200	3
	500	457	670/715	620/650	32	20-26/33	1250	802	548	360	SONGODZW-250	2500	5.5

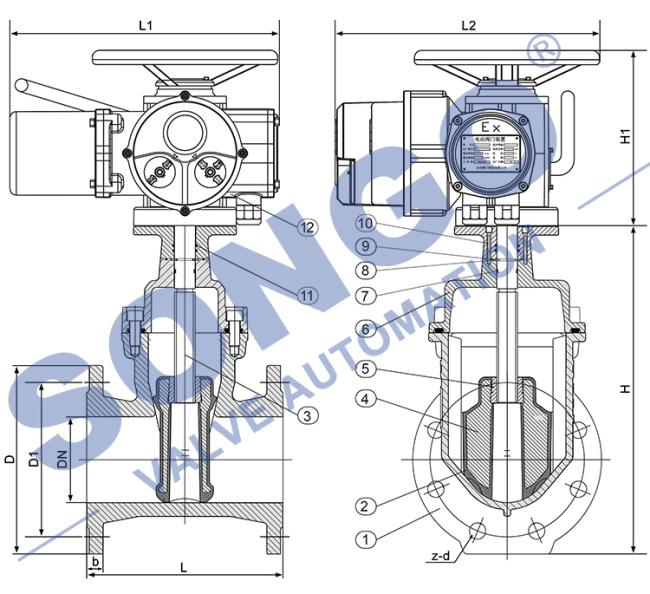

Drawing Of Electric Actuator For Flange Resilient Seat Gate Valve:
