3 Way Pneumatic Ball Valve T or L Port Forged SS316 400bar 6000 PSI Hydraulic Ball Valve
Descriptions Of High Pressure 3way Pneumatic Actuator Ball Valve:
The pneumatic high-pressure three-way ball valve is specially designed for high-pressure and multi-directional fluid control systems. It features a forged valve body and reinforced sealing structure, and can withstand a maximum pressure of PN420 (Class 2500). Through the T-port or L-port flow channel design, various functions such as diversion, confluence, and flow direction switching can be achieved. It is widely used in high-pressure industrial applications such as petroleum, chemical engineering, and energy.
Design Features Of SONGO Pneumatic High Pressure 3way Ball Valve:
1).The valve body is made of stainless steel304/316,Carbon Steel and can withstand ultrahigh pressures ranging from PN100 to PN400.
2).Pneumatic rapid response ,Actuator open and colse speed ≤ 1 second, supports double acting or single acting (spring return).
3).Zero leakage seal,metal hard seal (with a temperature resistance of 600℃) or PTFE soft seal.
4).Multi-flow control, with options for T type (diversion) and L type (direction change) flow channels available.
5).Optional Limit Switch, Namur solenoid valve, F.R.L or intelligent positioner.
Part Material Of Pneumatic Actuated 3 Way L Port High Pressure Ball Valve:
| Connect Type | Female thread,Weld,Ferrule |
| Working Pressure | PN320 |
| Brand | SONGO |
| Size | DN08-DN50 |
| Temperature | -20℃+280℃ |
| Medium | Fresh water,sewage, sea water, air, steam, food, medicine, oils, acids, etc. |
| Body | CF8, CF8M, stainless steel |
| Ball | SS304, SS316 |
| Stem | SS304, SS316 |
| Seat | PTFE |
| Operated | Pneumatic actuated |
| Actuator parts | Solenoid valve, limit switch, positioner, FRL |
| Actuator type | Double action, spring return |

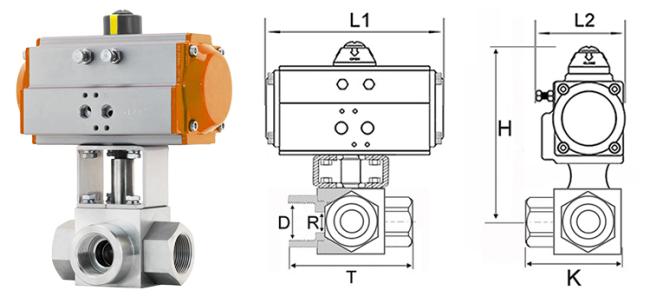

Structure Dimension Drawing Of Pneumatic Operated SS304 3 Way Ball Valve:
| Nominal diameter | L | T | H | K | R | D | L1 | L2 | Pneumatic Actuator No. |
| DN8 | 147 | 72 | 176 | 34 | 6 | G1/4" | 150 | 72.5 | AT-52 |
| DN10 | 147 | 78 | 176 | 36 | 8 | G3/8" | 150 | 72.5 | AT-52 |
| DN15 | 147 | 87 | 176 | 36 | 10 | G1/2" | 150 | 72.5 | AT-52 |
| DN20 | 168 | 99 | 237 | 47 | 14.5 | G3/4" | 171 | 83 | AT-63 |
| DN25 | 182 | 114 | 237 | 51 | 19.6 | G1" | 186 | 95.5 | AT-75 |
| DN32 | 204 | 123 | 249 | 55 | 24.8 | G1 1/4" | 206 | 103.5 | AT-83 |
| DN40 | 239 | 131 | 285 | 62 | 30 | G1 1/2" | 265 | 108 | AT-92 |
| DN50 | 268 | 142 | 348 | 70 | 39.6 | G2" | 272 | 121.5 | AT-105 |
Ball Valve Standard:
| Ball Valve Standard | ||||
| GB Standard | ASME Standard | JIS Standard | DIN Standard | |
| Design Standard | GB/T12237 | API608 | JIS BS5351 | DIN 3357 |
| Inspection Standard | GB/T13927 | API598 | JIS B2003 | EN 12266 |
| Face-to-Face Standard | GB/T12221 | ASME B16.10 | JIS B2002 | DIN 3202-F4 |
| Flange Standard | HG/T 20592, GB/T9113,EN 1092-1, JB/T79.1 |
ASME B16.5 | JIS B2220 | EN 1092-1 |
| Pressure-Temperature Standard |
GB/T 26640 | ASME B16.34 | ASME B16.34 | ASME B16.34 |
| Fire Safe Standard | API607/API 6FA | API607/API 6FA | API607/API 6FA | API607/API 6FA |
Matching Air Accessories Selection For Pneumatic Ball Valve:
Pneumatic Actuator Accessories Options :
| Pneumatic Actuator Accessories Options | ||
| Pneumatic Actuator Pisition | Applicable Connection Standard |
Pneumatic Actuator Accessories |
| Actuator Upper | VDI/VDE 3845 | ● Limit Switch Box ● Proximity Switch ● P/P Pneumatic Positioner ( Control Input Signal Is 0.20-1.03 Bar or 3-15 PSI ) ● E/P Electro Pneumatic Positioner ( Control Input Signal Is 4-20mA ) |
| Actuator Back | VDI/VDE 3845 | Non Explosion-proof Type ExmbIICT4 / EX d IIB T6 / EX d IIC T6 / EX ia IIC T6 Explosion-proof Type ● 3/2 Way Namur Solenoid Valve ( For Spring Return Actuator ) ● 5/2 Way Namur Solenoid Valve ( For Double Acting Actuator ) Air Filter Regulator |
| Actuator Bottom | ISO5211/DIN3337 | ● Declutchable Gear Box ● Ball Valve , Butterfly Valve , Plug Valve |
Single Acting & Double Acting Difference Of Pneumatic Actuator:
| Principle Of Single Acting Pneumatic Actuator (Spring Return) | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A. |
| Principle Of Double Acting Pneumatic Actuator | |
| Counter - Clockwise | Clockwise |
 |
|
|
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A. |
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
|
Operating Type Selection Of Ball Valve:
Connect End Selection Of Pneumatic Ball Valve:
Flow Path Selection Of Pneumatic 3 Ways Ball Valve:
29 Years Valve Factory Founded In 1996:
Good Feedback From 12382 Clients:
No Worries After Buy Our Valves With Our Engineers:
