SONGO Electric Knife Gate Valve For Slurry Carbon Steel PN16/Class 150 Flange 24VDC Motorized Slide Gate Valve
Price:
CN¥2800/pieces 2-29 pieces
MOQ:
2 pieces
Delivery Time:
5-7 Working day
Brand:
SONGO
Product Description
Benefits Of Electric Knife Gate Valve:
The electric knife gate valve is automated cutting valve specially designed for harsh working conditions. Its powerful cutting capacity, extremely low flow resistance and reliable automatic performance make it an indispensable role in modern process industries, especially in the control systems for the transportation of slurries, particles, powders and other media.
Carbon Steel Motorized Slide Gate Valve Features:
1). The knife gate plate can easily cut through fibers, particles, slurries, powders, etc. It is the preferred choice for handling solid-liquid mixed media.
2). When fully open, the flow channel is unobstructed, approximately matching the inner diameter of the pipe, and the flow resistance is low. And it has compact structure and is lightweight.
3). The electric drive enables remote and centralized control, and can be easily integrated into DCS/PLC systems to achieve industrial automation. Optional with voltages of 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, etc.
2). When fully open, the flow channel is unobstructed, approximately matching the inner diameter of the pipe, and the flow resistance is low. And it has compact structure and is lightweight.
3). The electric drive enables remote and centralized control, and can be easily integrated into DCS/PLC systems to achieve industrial automation. Optional with voltages of 12VDC, 24VDC, 24VAC, 110VAC, 220VAC, 380VAC, etc.
4). The structure is simple, the replacement is relatively convenient, and the service life is long.

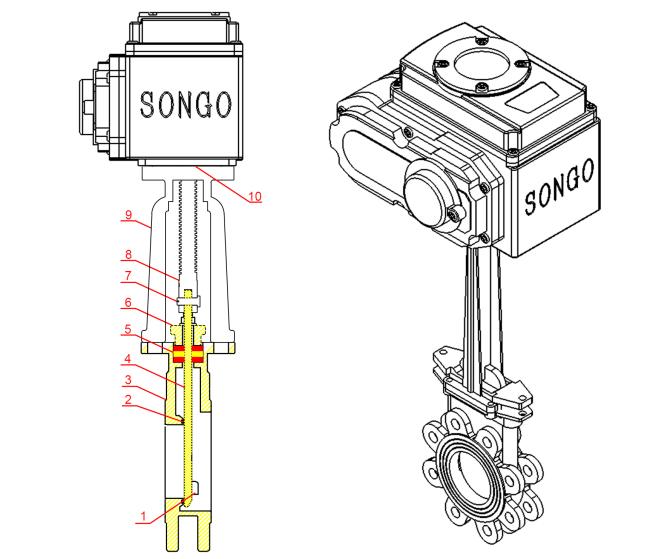

220VAC Motorized Knife Gate Valve Technical Parameter:
| NO. | Part Name | Material |
| 1 | Location Point | Carbon Steel(WCB) |
| 2 | Seat Sealing | NBR,PTFE |
| 3 | Body | Carbon Steel(WCB),Stainless Steel(SS304,SS316) |
| 4 | Valve Plate | SS304,SS316 |
| 5 | Packing | PTFE |
| 6 | Packing Gland | Carbon Steel(WCB) |
| 7 | Pin | A3 |
| 8 | Stem | 2Cr13,Stainless Steel |
| 9 | Bracket | Carbon Steel,Stainless Steel |
| 10 | Electric Actuator | |

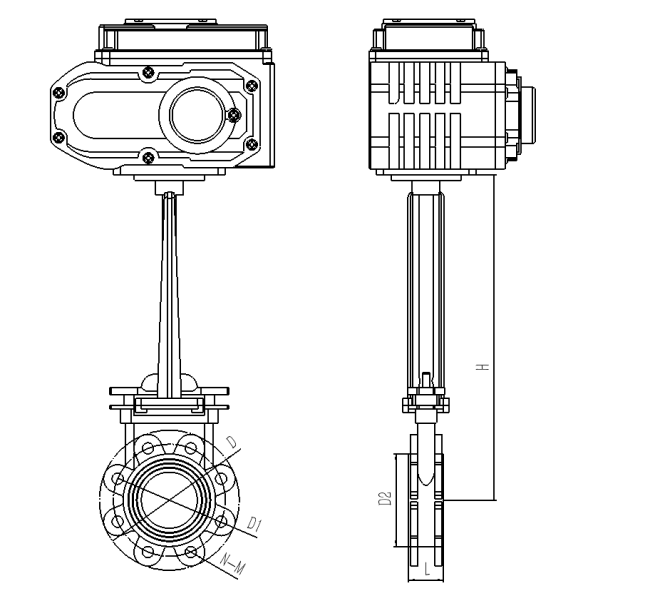

Electric Slide Gate Valve Dimension Drawing
| Nominal Diameter | L | D | D1 | D2 | H | N-M | ●-○ | d | ||
| PN16 | Class 150 | PN16 | Class 150 | |||||||
| DN50 | 48 | 165 | 152 | 125 | 120 | 99 | 300 | 4-M16 | 2-2 | ɸ18 |
| DN65 | 48 | 185 | 178 | 145 | 139.5 | 118 | 364 | 4-M16 | 2-2 | ɸ18 |
| DN80 | 51 | 200 | 190.5 | 160 | 152.5 | 132 | 494 | 8-M16 | 2-6 | ɸ18 |
| DN100 | 51 | 220 | 220.5 | 180 | 190.5 | 156 | 684 | 8-M16 | 2-6 | ɸ18 |
| DN125 | 57 | 250 | 254 | 210 | 216 | 184 | 854 | 8-M16 | 2-6 | ɸ18 |
| DN150 | 57 | 285 | 279 | 240 | 241.5 | 212 | 884 | 8-M20 | 2-6 | ɸ23 |
| DN200 | 70 | 340 | 343 | 295 | 298.5 | 266 | 938 | 8-M20 | 2-6 | ɸ23 |
| DN250 | 70 | 395 | 406 | 350 | 362 | 319 | 945 | 12-M20 | 4-8 | ɸ23 |
| DN300 | 76 | 445 | 483 | 400 | 432 | 370 | 1115 | 12-M20 | 4-8 | ɸ23 |
| DN350 | 76 | 505 | 533 | 460 | 476 | 430 | 1135 | 16-M20 | 6-10 | ɸ23 |
| DN400 | 89 | 565 | 597 | 515 | 539.5 | 480 | 1642 | 16-M24 | 6-10 | ɸ27 |
| DN450 | 89 | 615 | 635 | 565 | 578 | 530 | 1795 | 20-M24 | 8-12 | ɸ27 |
| DN500 | 114 | 670 | 699 | 620 | 635 | 582 | 1885 | 20-M24 | 8-12 | ɸ27 |
| DN600 | 114 | 780 | 813 | 725 | 749.5 | 682 | 2245 | 20-M27 | 8-12 | ɸ30 |
| DN700 | 127 | 895 | 984 | 840 | 914.5 | 794 | 1985 | 24-M27 | 10-14 | ɸ30 |
| ●=Number of blind holes;○=Number of through holes | ||||||||||
