3 Way Solenoid Valve Brass Direct Acting Normally Closed Water Valve 220VAC
Benefits Of 3 Way Brass Solenoid Valve:
The 3 Way direct acting solenoid valve is mainly used to control the on-off and flow direction switching of small flow of gases or liquids. It is one of the most fundamental and widely used types of solenoid valves in the fields of industrial automation and fluid control, and is applicable to media such as gas, water, oil, vacuum, steam, etc.
Features Of 3 Way Solenoid Valve :
1).Simple structure, fast response, zero pressure difference startup.
2).Small in size, easy to install, low in cost, and relatively simple to maintain.
3).Low power consumption and fast response speed.
Characteristic :
| Body Material | Brass,Stainless Steel | ||
| Sealing Material | NBR | EPDM | VITON |
| Medium Temperature | 80℃ | 140℃ | 150℃ |
| Insulation Grade | H | ||
| Voltage | 220-230VAC 50~60Hz;100-120VAC 60Hz;12-25VDC 50~60Hz | ||
| Power | 220-230VAC:22W;100-120VAC:22W;12-25VDC:15W/17W | ||
| Environment Temperature | 80℃ | ||
| Connected | G Thread,NPT Thread | ||
| Voltage Fluctuation | ±10% | ||
| Optional Solenoid | Energy-Saving Solenoid is Optional(can reduce the heat of the solenoid) | ||
Technical Parameter:
| Size | Flow Aperture(mm) | KV Value(m3/h) | Pressure Difference(bar) | ||||
| Min Pressure | Max Working Pressure | ||||||
| Gas,Water,Liquid | Light Oil≤20CST | ||||||
| AC | DC | AC | DC | ||||
| 1/8 inch | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 |
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | |
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | |
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | |
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | |
| 1/4 inch | 1.5 | 0.07 | 0 | 13 | 11 | 13 | 11 |
| 2.0 | 0.14 | 0 | 11 | 9 | 11 | 9 | |
| 2.5 | 0.21 | 0 | 9 | 7 | 9 | 7 | |
| 3.0 | 0.25 | 0 | 6 | 4 | 6 | 4 | |
| 4.0 | 0.35 | 0 | 3.5 | 2 | 3.5 | 2 | |

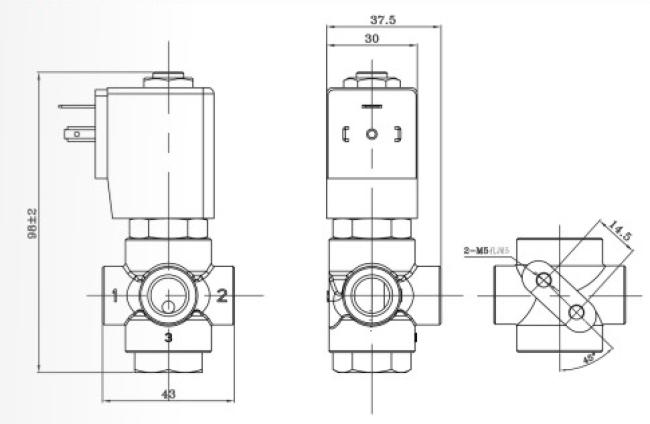

Overall dimensions:

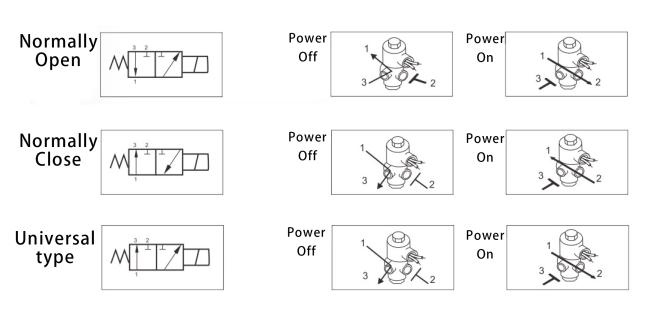

flow direction:
