Descriptions Of WCB Y type strainer:

The DIN standard Y type strainer is a device used to eliminate particulate impurities in the medium, which can effectively protect the normal operation of valves and equipment on the pipeline.When cleaning is required, just take out the detachable strainer screen and reload it after processing, which is extremely convenient for maintenance.

Design Features Of WCB Y type strainer:

1). Filtration accuracy: 10-480 mesh

2). Using a Y-shaped structure, a portion of the fluid medium passes directly through the main pipeline, while another portion is filtered through the filter element. This effectively reduces fluid resistance and pressure loss, and is also convenient for cleaning and replacing the filter element.

3). Using high-quality materials such as stainless steel sintered filter elements, metal mesh filter elements or polypropylene melt-blown filter elements, it features high precision filtration and corrosion resistance, and can remove impurities of different particle sizes.

4). The pressure rating of the filter should be 1.5 times higher than the maximum working pressure of the system.

5). Under the same pipe diameter, the length of the Y-type filter is shortened by 40% to 60% compared to the straight-through type, making it suitable for pipeline systems with limited space.

Part Material Of WCB Y type strainer:

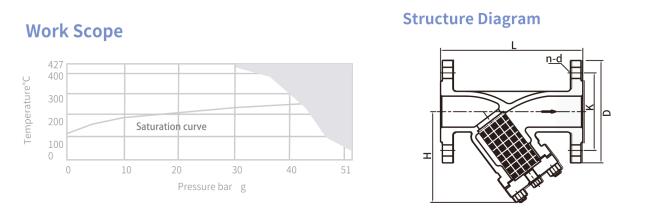

Structure Dimension Drawing Of WCB Y type strainer:

Frequently Asked Questions:
