Bubble Infant CPAP II Nasal 02 Oxygen Air Blender Humidifier ODM
Price:
USD4000-USD6000
MOQ:
1
Delivery Time:
2-4weeks
Brand:
pigeon
Product Description
Bubble Infant CPAP II Nasal O₂ Oxygen Air Blender Humidifier ODM
Product Overview
Medical equipment designed for infant respiratory support, featuring Bubble CPAP technology. The AD-II Infant CPAP is specialized medical equipment developed for neonatal and pediatric respiratory support, suitable for premature infants, neonates, and children up to 14 years old.
Performance Characteristics
- Compact all-in-one system structure integrating main machine, humidifier, and air compressor to save space
- Built-in air and oxygen mixing system with real-time oxygen concentration monitoring
- Dual safety guarantee for oxygen use with system oxygen battery (guaranteed over two years)
- Precise CPAP adjustment combined with system pressure monitoring and safety valve
- Compatible with various infant NCPAP types and applications
- Optional electronic control high-temperature or automatic control humidifiers
- Lightweight pipeline and nasal interface to reduce breathing resistance and patient work of breathing
- Suitable for PICU, NICU, pediatric departments, and wards
Technical Specifications
| Parameter | Specification |
|---|---|
| Oxygen Concentration Control | 21% - 100% |
| Flow Control | 0 - 18 LPM |
| Continuous CPAP Control | 0.1 kPa - 1.0 kPa (1 cmH₂O - 10 cmH₂O) |
| Pressure Monitoring | 0 - 3 kPa (0 - 30 cmH₂O) |
| Oxygen Concentration Monitoring | 21% - 100% |
| Pressure Safety Valve | Activates automatically when pressure exceeds 1.5x control parameter |
| Power Source | AC 220V/110V, 50-60Hz |
| Heater Plate | 150W |
| Thermal Cut-off | 90°C ± 6°C |
| Display | Three digit, 0.56 inch, 7 segment LED |
| Temperature Monitoring | 0 - 75°C |
| Maximum Heated Plate Temperature | 85°C |
| Main Machine Dimensions | 24.7cm × 17.5cm × 21cm (W×H×D) |
| Main Machine Weight | Approximately 6kg |
| Air Source Supply | 0.3 MPa - 0.4 MPa |
Alarm Systems
- Pressure Difference Alarm: Audible alarm when oxygen supply pressure difference is between 0.05 MPa and 0.12 MPa
- Battery Low-Voltage Alarm: LCD displays "LOW BATTERY" and audible alarm when voltage drops to 6.8V ± 0.5V

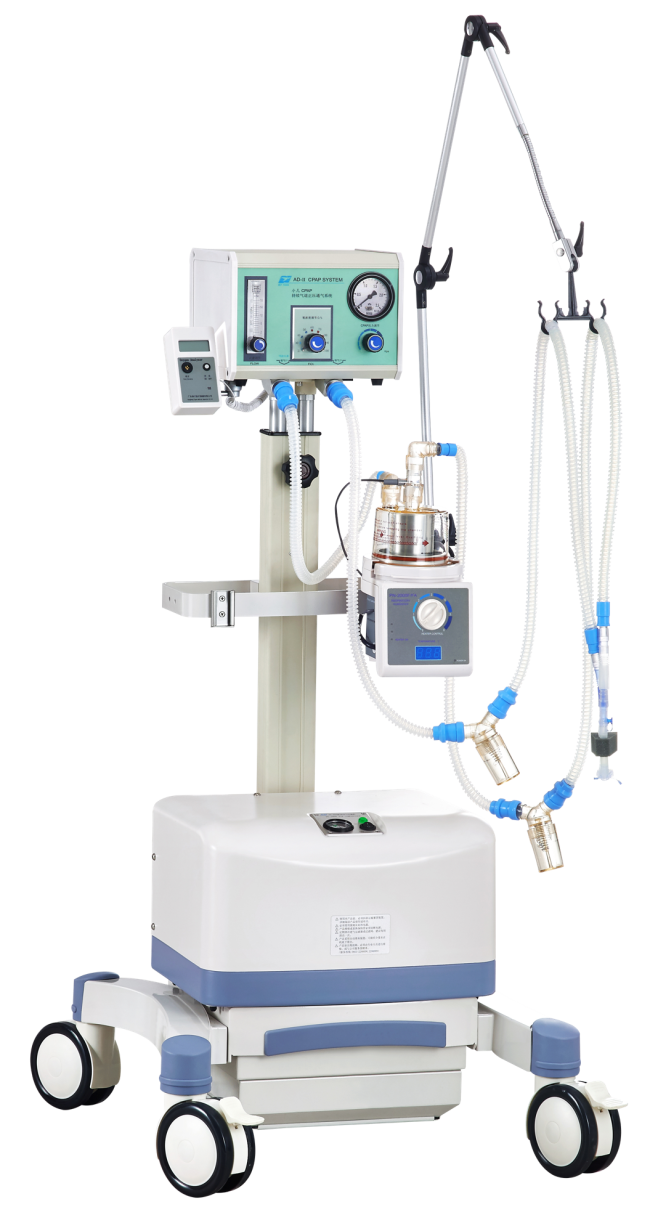

Product Images
