Lc490DUY-SHA2 LG LCD Panel 49 Inch 1920x1080 Resolution Broken TV Spare Parts

Price Negotiable
Price: $107.760/pieces 1-16 pieces
MOQ: 17pcs
Delivery Time: 15-25work day
Brand: LG
Product Description
TV Screen Display Panel Model: LC490DUY-SHA2
LG 49 Inch LCD Screen 1920x1080 Resolution Broken TV Spare Parts
Product Attributes
Attribute Value
Type TFT
Display Size 49 inches
Model Size LC490DUY-SHA2
Product Description
The LG Display LC490DUY-SHA2 is a 49-inch a-Si TFT-LCD open-cell panel delivering Full HD resolution of 1920×1080 (≈45 PPI) in an RGB vertical-stripe layout. This IPS panel (normally black, transmissive) supports 16.7 million colors, a 1200:1 contrast ratio, and wide 89° viewing angles for sharp, vivid visuals.
With a fast 6 ms gray-to-gray response time and standard 60 Hz refresh rate, it's well-suited for dynamic content. The panel features a matte anti-glare finish with haze around 3% and hard coating (2H), weighs approximately 2.06 kg, and uses a 51-pin dual-channel LVDS interface at 12V. Designed without a built-in backlight or touch functionality, it's ideal for OEM TV replacements or high-end display systems.

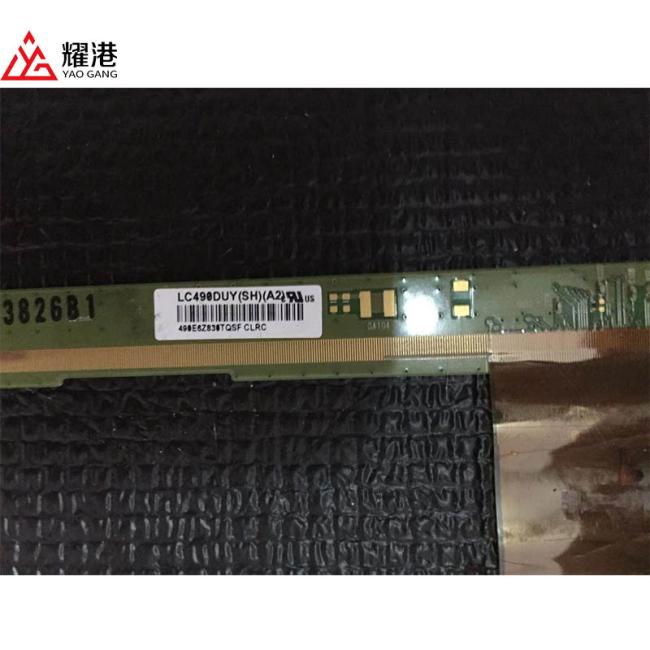

LG LC490DUY-SHA2 LCD Panel Front View

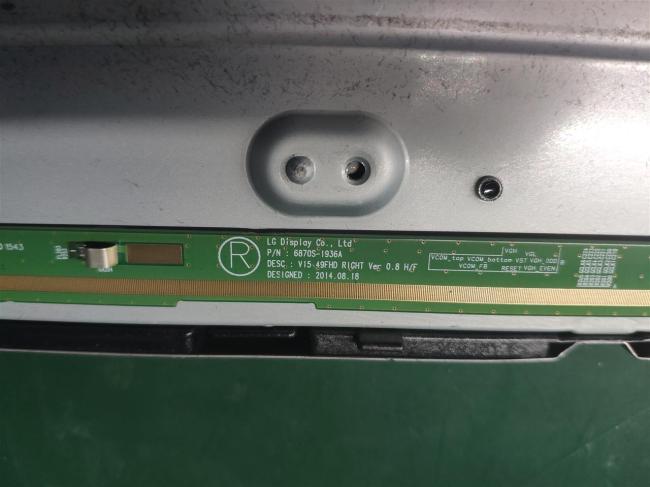

LG LC490DUY-SHA2 LCD Panel Side View
Technical Specifications
Sea Port Guangzhou/Shenzhen/Dongguan/Hong Kong
Physical Dimension 1085.5×617.7×1.4 mm (H×V×D)
Screen Type a-Si TFT-LCD
Packing Foam box and wooden box original package

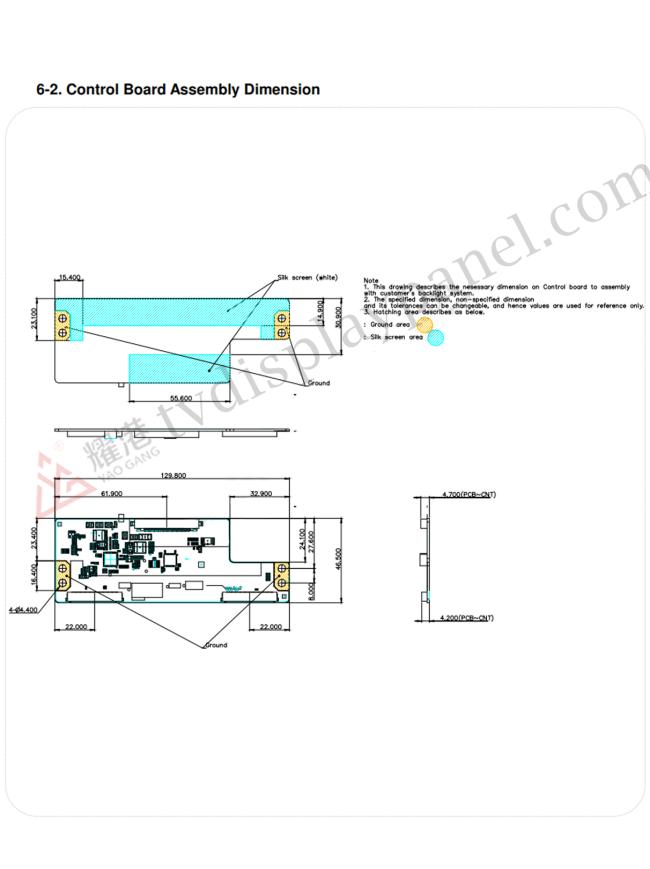

Panel Main Board External Dimension
Panel Main Board External Dimension Diagram

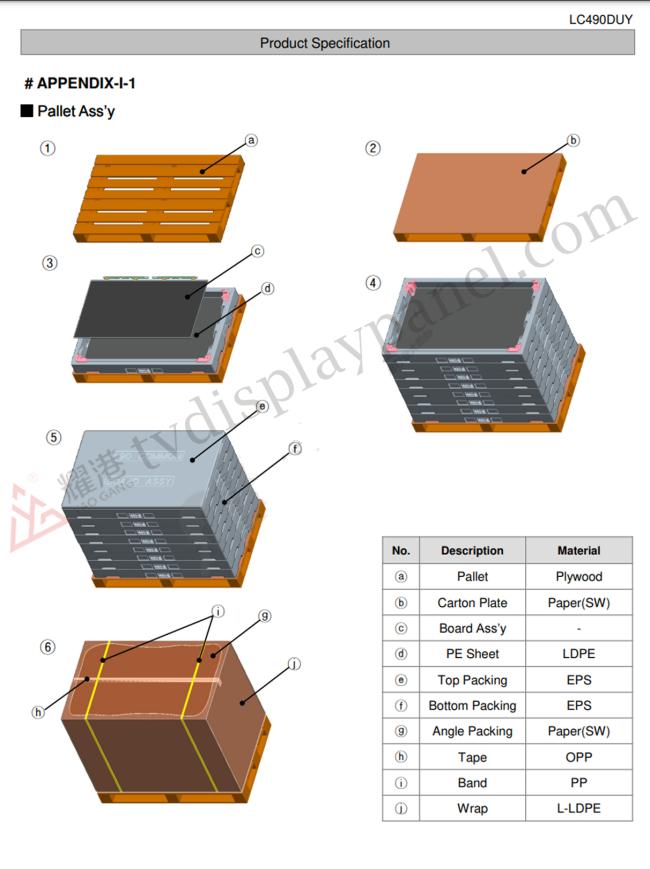

Packing Process
LCD Panel Packing Process
Frequently Asked Questions
Q: How long is your delivery time?
A: The general delivery time is 3-7 days after receiving your order confirmation. Another, if we have the goods in stock, it will only take 1-2 days.
Q: What is your term of payment?
A: 30% down payment before PI or producing and 70% balance payment before shipping.
