43 Inch BOE LCD Panel HV430FHB-N10 Full HD 1920×1080 12V TFT LCD Open Cell
The HV430FHB‑N10 is a 43‑inch a‑Si TFT‑LCD open‑cell panel by BOE, offering Full HD resolution (1920 × 1080, ~51 PPI) with RGB vertical stripe layout. It displays 16.7 million colors via 8‑bit depth, with a typical contrast ratio of 1200:1 and a response time around 8 ms (G‑to‑G).

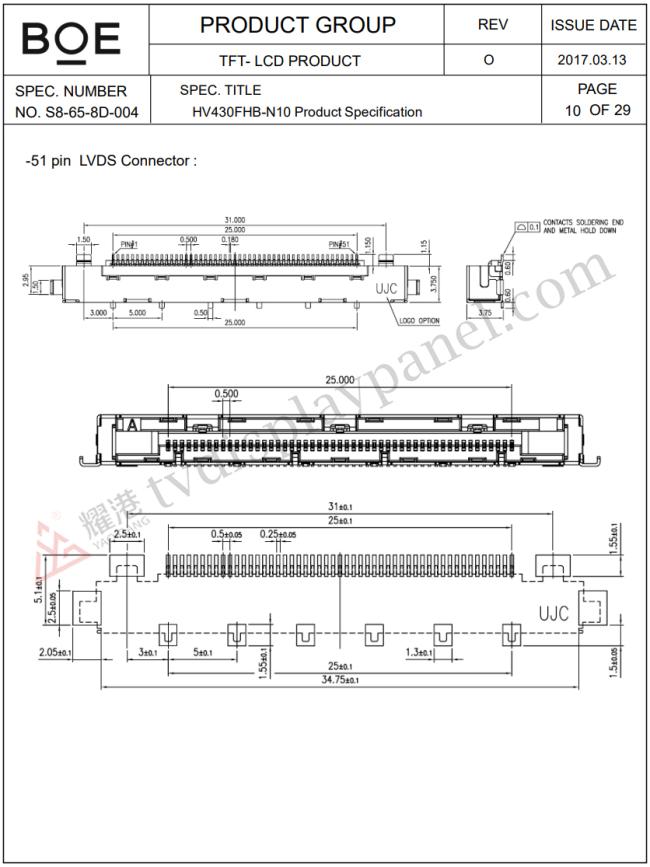

The panel uses ADS mode for high image quality, supports ultra‑wide 89° viewing angles, and features a matte anti‑glare surface (Haze 1%, 3H hardness). Connectivity is via a 51‑pin LVDS interface (2‑channel, 8‑bit), and it requires a 12 V power supply without integrated backlight or touch support. With an operating range of 0 °C to 50 °C and storage tolerance from -20 °C to 60 °C, it is ideal for TV replacements and signage systems.
| Specification | Value |
|---|---|
| Screen Size | 43 inches |
| Interface Type | DisplayPort |
| Resolution | 2K (3840*2160) |
| Receiving System | PAL |
| Refresh Rate | Ntsc (60Hz) |
| Model Number | HV-430FHB-N10 |
| Type | LCD |
| Display Format | 1080p (Full-HD) |
| Best Perspective | 89/89/89/89 (Typ.) |
| Supply Capacity | 5000 slice/month |
We are based in Guangdong, China, operating since 2017. We serve global markets including North America, Central America, Eastern Asia, Southeast Asia, Eastern Europe, South America, Africa, Northern Europe, Southern Europe, and Domestic Market (China). Our team consists of 1-4 professionals.
We implement strict quality control measures including pre-production samples before mass production and final inspection before shipment.
We specialize in LCD wholesale, TV wholesale, LED products, monitors, and LED screens.
We offer a wide range of brand LCD products, support customization and special consultation, and adhere to the business philosophy of "professional, honest and trustworthy".
