2MP 36X Anti-Corrosion Crane Damping Starlight IR Analogue Marine CCTV Camera
2MP 36X Anti-Corrosion Crane Damping Starlight IR IP Marine CCTV Camera
Key Features
This Crane Marine CCTV system meets the requirements of Crane operators.The Crane Marine CCTV system is to be installed in hazardous areas and is primarily used on offshore cranes,supplied with up to 3-4 cameras providing clear view of the cargo,the wire drum and pedestal enhancing hoisting operations.
Whereas building structures,objects,distances and light conditions used to represent big challenges for the crane operator,the Crane CCTV makes even the most challenging tasksfeasible.With a crane camera installed to overlookthe topside of the load and crane hook assembly,valuable information is relayed to the crane operator via hismonitor.ffered a clear view of the load on the monito the traditional dificulties of manoeuvring the load safely andeficiently have been reduced significantly.
The optional Automatic object Tracking feature automaticallyzooms in on the predefined objec,tracking the payload during hoisting or lowering,keping the object a constant size on the sren.This s practical for checking clearances,correct wire spooling et.The interface unit uses an network feedback signal from the wire drum.The Crane Camera overlookin the crane hook assembl is suspended from the crane structure via an interated oil amper.The design keps the camera in a stable vertical position even when the crane boom is tited.The Spring damping and movement gyroscope stabilization.absorbs shocks and vibration protecting the camera and ensuring stable pictures.
Depending on the model,the Crane Marine CCTV system includes either a joystick or a push-button based control.All camera functions ssuch as iris,zoom,focus and camera selections can be operated with the joystick.The joystick can be removed from the control box and installed into other panels if required.
A compact central unit links the system together as wellas providing room for the electronics and the power supply for the camera station.
This crane damping Marine CCTV camera is developed foroffshore surveilance system.It s featured as toget stable video,andwil noteffect by crane moving or working
- Resolution:up to 2MP(1920*1080),Output Full HD:1920*1080@30fps Live Image.
- Privacy mask
- Image mirror
- Dynamic noise reduction
- BLC,HLC,DSS
- Fickerless sharpless
- Temperature display
Service
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Parameters
| Camera | |
| Image Sensor | 1/2.5" 2.0Megapixel CMOS NVP2441H+SONY322 |
| Lens Parameter | Lens Zoom: 36X 3.9~140.4; FNo: 1.6~3.5 |
| Max. Resolution | 1920 (H) *1080 (V)/1200TV Line/1920x1080p(AHD/CVI/TVI) |
| Frames per second | 25/30 |
| Min. Illumination | Color: 0.01Lux@(F1.2, AGC ON), 0Lux with IR |
| Black & White: 0.001Lux@(F1.2, AGC ON),0Lux with IR | |
| Output Format | PAL/NTSC : 1920 (H) *1080 (V) |
| Video output: | 1.0Vp-p,75Ω |
| Focus Mode | Bus control focus/Button control focus |
| Control connector | Bys contol DC±3V~±12V |
| Denoise | 2D/3D |
| Backlight compensation | On/Off |
| Auto IRIS | YES |
| AF mode | Normal/Zoom Trigger/Interval |
| AWB mode | Auto/Manual/outdoor/indoor |
| AE mode | Auto/shutter priority/IRIS priority/manual |
| Electronic shutter | 1/25~1/10000 |
| IR cut mode | Auto/day/night |
| Privacy Zone | 24Mask |
| OSD | Title/Display |
| Protocol | Sony, Pelco-D |
| General | |
| Power | DC12V,DC24V,AC24V,AC100-240V optional,≤18W |
| Cable | Integrated cable |
| Size | 240*194*561mm |
| Weight | ≤25Kg |
| Mount | On crane |
| IR Range | 100m |

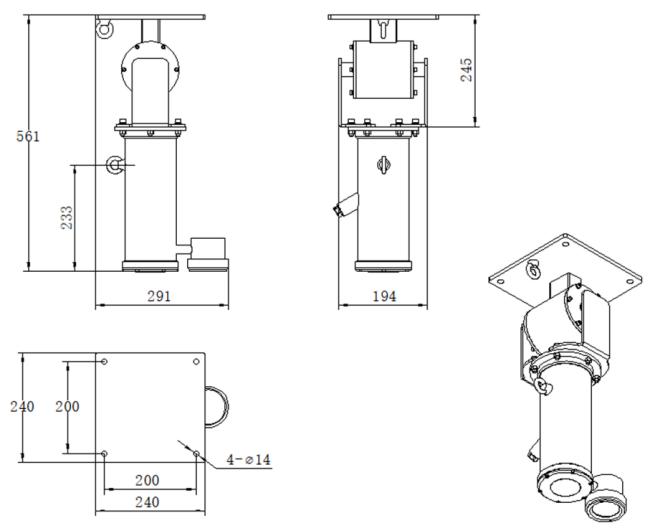

Dimensions
