2MP 4X CCS Type Approval Anti-Corrosion 20m IR PTZ Dome Marine CCTV Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description
2MP 4X CCS Type Approval Anti-Corrosion PTZ Dome Marine CCTV Camera
Key Features
- Stainless Steel 316L Enclosure
- IP68 Ingress Protection
- High quality imaging with 2 MP resolution
- 4x optical zoom allows for closerviewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night
- DC12V/PoE Power optional
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas: desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Parameters
| Camera Module | |
| Image Sensor | 1/3"progressive scan CMOS |
| Min.Illumination | Color:0.005 Lux @(F1.6,AGC ON) B/W:0.001 Lux @(F1.6,AGC ON) 0 Lux with IR |
| White Balance | Auto/Manual/ATW(Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Gain | Auto/Manual |
| Shutter Time | 50Hz:1/1 s to 1/30,000 s 60Hz:1/1 s to 1/30,000 s |
| Day &Night | IR Cut Filter |
| Digital Zoom | 16X |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Lens | |
| Focal Length | 2.8 mm to 12 mm,4×optical zoom |
| Zoom Speed | Approx.2s(optical lens,wide-tele) |
| Field of View | Horizontal field of view:100.5°to 32.6°(Wide-Tele) Vertical field of view:52.8°to 18.3°(Wide-Tele) Diagonal field of view:120.2°to 37.5°(Wide-Tele) |
| Working Distance | 10 mm to 1500 mm(wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| PTZ | |
| Movement Range(Pan) | 0°to 355° |
| Pan Speed | Configurable,from 0.1/s to 100°/s.Preset speed:100°/s |
| Movement Range (Tilt) | 0°to 90° |
| Tilt Speed | Configurable,from 0.1/s to 100°/s.Preset speed:100°/s |
| Proportional Zoom | Yes |
| Presets | 300 |
| Power-off Memory | Yes |
| Compression Standard | |
| Video Compression | Main Stream:H.265+/H.265/H.264+/H.264 Sub-stream:H.265/H.264/MJPEG Third Stream:H.265/H.264/MJPEG |
| H.264 Type | Baseline profile/main profile/high profile |
| H.264+ | Yes |
| H.265+ | Yes |
| Video Bitrate | 32 Kbps to 16384 Kbps |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Bitrate | 64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 Kbps to 192 Kbps(MP2L2) |
| SVC | Yes |
| Smart Features | |
| Basic Event | Motion Detection,Video Tampering Detection,Exception |
| Smart Event | Face detection,intrusion detection,line crossing detection,region entrance detection,region exiting detection,object removal detection,unattended baggage detection,audio exception detection |
| Smart Record | ANR(Automatic Network Replenishment),dual-VCA |
| ROI | Main stream,sub-stream,and third stream respectively support four fixed areas. |
| IR | |
| IR Distance | 20 m |
| Smart IR | Yes |
| Image | |
| Max.Resolution | 1920×1080 |
| Main Stream | 50Hz:25fps(1920×1080,1280×960,1280×720) 60Hz:30fps(1920×1080,1280×960,1280×720) |
| Sub-Stream | 50Hz:25fps(704×576,640×480,352×288) 60Hz:30fps(704×480,640×480,352×240) |
| Third Stream | 50Hz:25fps(1280×720,704×576,640×480,352×288) 60Hz:30fps(1280×720,704×480,640×480,352×240) |
| lmage Enhancement | 3D DNR,EIS,Regional Exposure,Regional Focus |
| Network | |
| Network Storage | Built-in memory card slot,support microSD/SDHC/SDXC,up to 256 GB;NAS(NFS,SMB/CIFS),ANR |
| Alarm Linkage | Alarm actions,such as Memory Card Video Record,Trigger Recording,Notify Surveillance Center,Upload to FTP/Memory Card/NAS,Send Email,etc. |
| Protocols | Pv4/IPv6,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,Bonjour |
| API | ONVIF (Profile S,Profile G,Profile T),ISAPI,SDK |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users.3 user levels,administrator,operator and user |
| Security Measures | User authentication (ID and PW),Host authentication (MAC address);HTTPS encryption;IEEE 802.1x port-based network access control;IP address filtering |
| Client | iVMS-4200,Hik-Central,Hik-Connect |
| Web Browser | IE8 to 11,Chrome 31.0+,Firefox 30.0+,Edge 16.16299+ |
| Wi-Fi | |
| Standard | IEEE802.11b,802.11g,802.11n,transmission distance:50 m(without interference) |
| Frequency Range | 2.400 GHz to 2.483 GHz |
| Channel Bandwidth | 20/40 MHz |
| Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,WPS |
| Transmission Rate | 11b:11Mbps;11g:54Mbps;11n (20MHz):150Mbps;11n(40MHz):300Mbps |
| Interface | |
| Audio Interface | 1-ch audio input (mic in/line in)and 1-ch audio output (line out) 1 built-in microphone |
| Network Interface | 1 RJ4510 M/100 M Ethernet,PoE |
| Power Output | 12 VDC,max.60 mA |
| General | |
| Power | DC 12 V;PoE (802.3af) |
| Dimension | Ø182mm×135mm |
| Weight | 4kg |
| Operating Condition | -40°C to 60℃.Humidity 100% or less(non-condensing) |
| DORI | |
| Detection Distance | 130.9m |
| Observe Distance | 51.9m |
| Recongize Distance | 26.2m |
| Identify Distance | 13.1m |

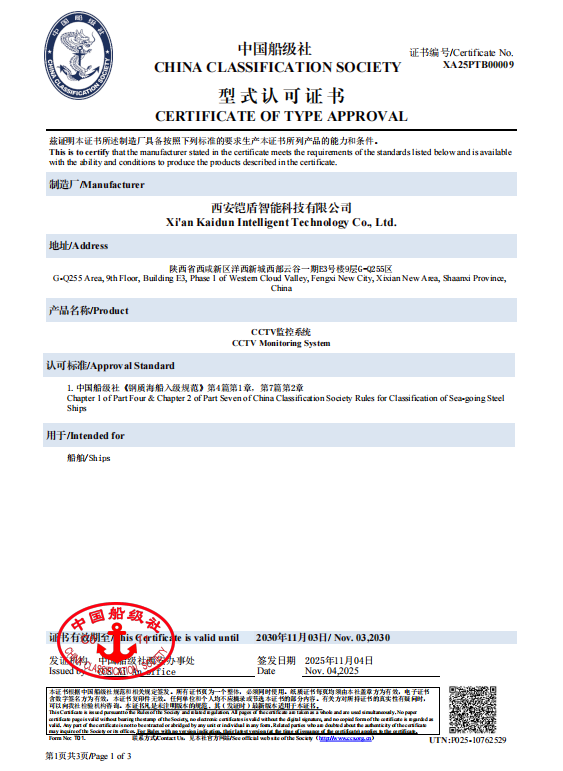

Certificate
