2MP 316L Anti-Corrosion Thermal Bullet Marine CCTV Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description
2MP 316L Anti-Corrosion Thermal Bullet Marine CCTV Camera
Key Features
- Stainless steel 316L Enclosure
- Ingress protection IP68
- Resolution 1280*1024
- 8.7mm focal lens
- DC12V Standard
- Verification to:BS EN 62676-1-1-2014-Video surveillance systems for use in security applicationsCE-EN60945(EMC+LVD)
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios
Container Vessel, Bulk Vessel, Oil Tanker, Cruise Vessel, Yacht, Oil/Gas Drilling Platform, Oil Depots, Sea Port
Other application areas:desert drill sites,offshore rigs,mechanical engineering,biogas plants,military,electric power,hydraulic power,railway,metallurgy,natural gas extraction,drilling platform,aerospace,marine,armed police,border defense,vessels,fireworks production,ports etc.
Parameters
| Athermal Lens | |
| Array Format | 1280*1024 |
| Focal Length/F# | 8.7mm F1.2 |
| Lens type | Athermal |
| FOV(H*V) | 90.45°*75.1° |
| IFOV | 1.379mrad |
| Performance metrics | |
| Detector type | VOx uncooled IRFPA |
| Pixel Pitch | 12μm |
| Pixel Resolution | 1280*1024 |
| Frame rate | 50Hz |
| Spectral Range | 8～14μm |
| NETD | ≤35MK@25C,F#1.0 |
| Image Adjustments | |
| Polarity | Black hot/White hot |
| Color Palettes | Support (18 types) |
| Digital Zoom | 1.0~8.0× Continuous Zoom (in 0.1×increment),magnify in any area |
| Image Processing | NUC,Brightness and contrast adjustment,Temporal Filter,Spatial Filter,DDE |
| Image mirroring | Horizontal/Vertical/Horizontal&Vertical |
| Network | |
| Network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, SMTP, NTP, QoS and other network protocols |
| Interoperability | ONVIF,SDK |
| Simultaneous Live View | Support at least 20 channels |
| User management | 20 users at most, there levels:administrator, operator and user |
| Browser | Support IE8+, Chrome, and other browsers, with multi language support. |
| Smart features | |
| Fire Detection | Supprot |
| Smart Video Recording | Supprot |
| Smart alarms | Support linkage alarm of network disconnection, IP address conflict, memory full, memory error, illegal access and exception detection |
| VCA | Cross line detection, intrusion detection |
| Alarm Linkage | Video/snapshot/E-mail/ PTZ linkage /alarm output |
| Lens controls | |
| Lens type | Motorized fixed focus/continuous zoom |
| Autofocus | Support (Auto focusing time near clear spot≤1s) |
| Motorized Focus | Support |
| Motorized Zoom | Support |
| Interface | |
| Serial Communication Interface | 1-ch RS-485, 1-ch UART (PTZ control) |
| PELCO | Support standard PELCO-D, PELCO-P protocols |
| Network Communication Interface | 10M/100M/1000M adaptive Ethernet port |
| Output interface | 1-ch MIPI output interface (expandable to MIPI input interface) |
| Audio | Support 1-channel input, 1-channel output |
| Alarm | Support 1-channel DC 5V alarm level input, 1-channel switch alarm output |
| General | |
| Power | DC12V,≤10W |
| Dimensions(L*W*H) | 280*185*223mm |
| Net Weight | ≤6.9kg |
| Material | Stainless Steel 316L |
| Working Environment | -40℃~60℃,Humidity:≤100%RH(non-condensing) |
| Strorage Environment | -40℃~60℃,Humidity:s100%RH(non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP68 |
| Inlet Hole Specification | 1 Entry hole G3/4 |
| Installation Method | Wall or column platform installation |

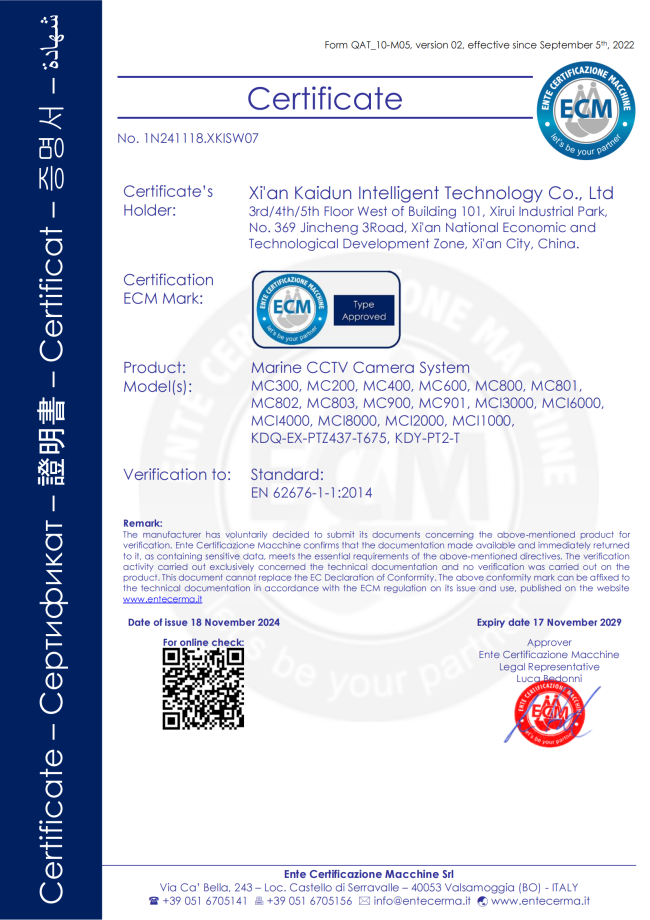

Certificate
