Underwater Analogue HD Pan & Tilt Camera
Price:
Negotiable
MOQ:
1
Delivery Time:
5-8 week
Brand:
KAIDUN
Product Description

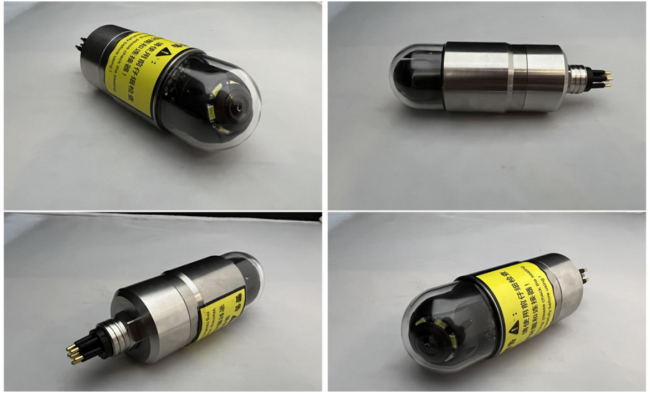

Underwater Analogue HD Pan&Tilt Camera
Key Features
- 2 Magapixel Analogue HD CMOS
- 360°continuous rotation in the horizontal direction,-5°-90°in the vertical direction,no blind area
- 6x high brightness 0.5W white LEDs built-in lights,10 levels of micro dimming
- Products can be customized according to different situations
Service
You can have the product replaced within 7 days due to quality problem and the quality guarantee period for this product is one year.
You can also get the favorable promotions.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
In the following conditions the product is not considered within the quality guaranteescope:
- Client cannot bring forth the quality guarantee card and invoice or receipt of purchasing;
- Improper service conditions,such as unmatched power,ambient temperature,humidity or lightingcaused malfunction;
- Malfunction caused by accident,negligence,disaster incorrect operation or network attack;
- Malfunction or damage in installation,repair,modification or dismantle caused by unauthorizedpersonnel;
- Out of guarantee period.
If you have any dissent on technical service provided by distributor,please lodge acomplaint to the customer's service center of Kaidun.
The quality guarantee card will be validated only after it's stamped by the after-service provider.
Application Scenarios
|
Aquaculture |
Underwater Photography |
Underwater Video |
Udnerwater Salvage |
Other Application Scenarios:Pipeline Maintenance;Underwater exploration etc
Parameters
| Name | Underwater Analogue HD Pan&tilt Camera |
| Model NO. | KDQ-UDC-PTF228(237)01 |
| Main Parameters | |
| Image Sensor | 2Magapixel Analogue HD COMS/1080p |
| Signal Type | HD Over Coax |
| Resolution | 2 Magapixel |
| SYS | PAL/NTSC |
| Minimal Illumination | 0.01 lux at F1.25600°K |
| Video Output | 1V-75 ohms AHD/CVBS,video signal(Anti-interference technology) |
| Rotation Range | Horizontal360°continuous spin,Vertical direction 0°~180° |
| Antenna Sweep Radius | Maximum in air:5m Minimum in air:60mm |
| Lens | |
| Lens | 2.8/3.7 mm Glass Lens/F1.2 |
| Focus | Electronic motion Focus |
| Function | |
| Function | 3 speed,Low/medium and high speed,dynamic switching 6 high brightness 0.5W white LEDs(50000h lifetime),10 levels of micro dimming |
| General | |
| Material | Stainless Steel /Titanium Alloy |
| Depth Rating | 0-100 m |
| Voltage Supply | 48VDC |
| Temperature | -30℃~+60℃ |
| Size | Φ45*105(not including parts 34mm) |
| Weight | 0.2kg(Stainless Steel) |
| Parts | |
| Packing List | Cable ,Adaptor,Warranty Card ,Certification ,Report |
| Depth | |
| Customization | Sensor(Temperature ,Pressure..) Control Display Screen |

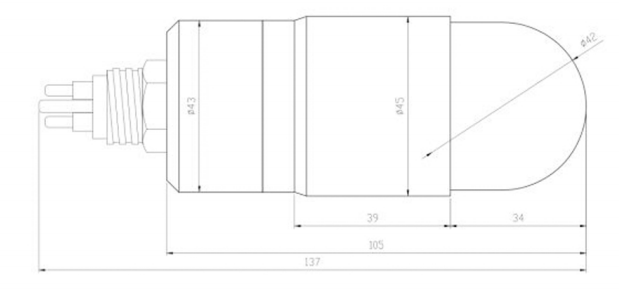

Dimensions
